PERFORMANCE iN LIGHTING | powered by GEWISS
ELIA DL
650° C
03
45
Ø228
198

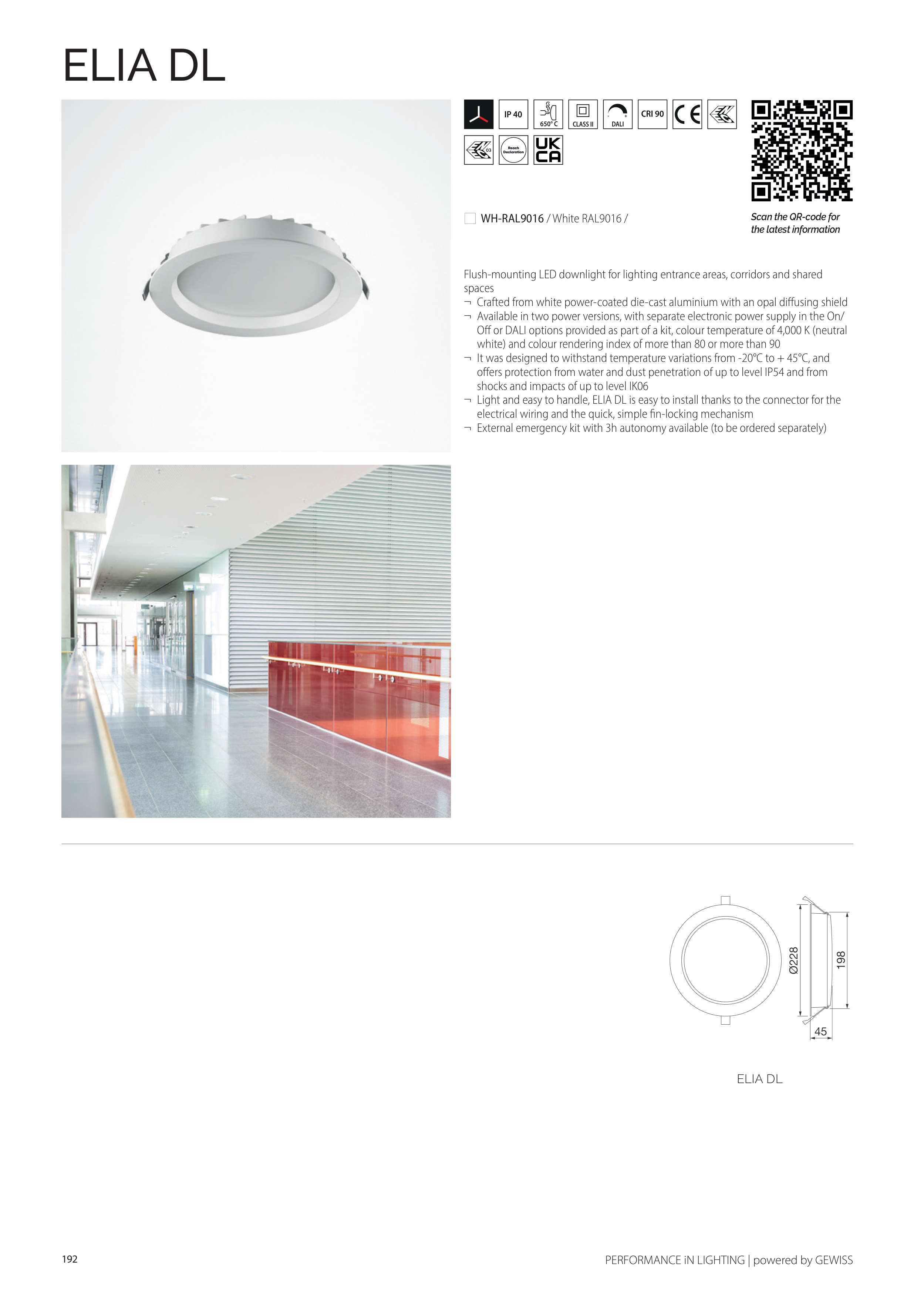

ELIA DL
Flush-mounting LED downlight for lighting entrance areas, corridors and shared
spaces
¬ Crafted from white power-coated die-cast aluminium with an opal diffusing shield
¬ Available in two power versions, with separate electronic power supply in the On/
Off or DALI options provided as part of a kit, colour temperature of 4,000 K (neutral
white) and colour rendering index of more than 80 or more than 90
¬ It was designed to withstand temperature variations from -20°C to + 45°C, and
offers protection from water and dust penetration of up to level IP54 and from
shocks and impacts of up to level IK06
¬ Light and easy to handle, ELIA DL is easy to install thanks to the connector for the
electrical wiring and the quick, simple fin-locking mechanism
¬ External emergency kit with 3h autonomy available (to be ordered separately)
T WH-RAL9016 / White RAL9016 /
Scan the QR-code for
the latest information
192
