Continuous mounted luminaire
Devices with limited surface tem-
perature
Quick installation
Dimmable 1-10V
CE certified
Water drain
Full cut-off
Heavy use conditions
Dimmable DALI
ENEC certified
Glow wire resistance
Water stop
Cool touch
Walk-over luminaire
Hot restrike
Loop through
Fuse
Side cable entry
Drive-over luminaire
Double switch
Through wiring connection
Adjustable louvre
Emergency luminaire 2 h
Pilot wire command
derating
Constant light /
presence control
Easing maintenance
Infrared motion sensor
Dawn-dusk switch
Emergency luminaire 3 h
High frequency
motion sensor
Automatic derating
Emergency luminaire 1 h
SMART! light monitor
Human Centric Lighting
EAC certified
ATEX certified
UKCA certified
RCM certified
Dynamic white
Protection against solid objects greater
than 12 mm.
No protection against water.
Protection against solid objects greater
than 1,0 mm.
No protection against water.
Protection against solid objects greater
than 1,0 mm.
Protection against vertically falling
water drops.
Protection against solid objects greater
than 1,0 mm.
Protection against spraying water.
Protection against solid objects greater
than 1,0 mm.
Protection against splashing water.
Protection against solid objects greater
than 1,0 mm.
Protection against water jets.
Dust-protected.
Protection against splashing water.
Dust-protected.
No protection against water.
Dust-protected.
Protection against water jets.
Dust-tight.
Protection against splashing water.
Dust-tight.
Protection against water jets.
Dust-tight.
Protection against the effects of
temporary immersion.
Fully dust protected.
Protected against the effects of perma-
nent immersion.
Total dust protection and total pro-
tection against hard splashing water.
Protection against entry of solid objects
ø ≥ 12 mm
and against rain.
DIN EN 12464-1 conform
DIN 18032-3 conform
Class II luminaire.
Reinforced or double insulated lumi-
naire without earth protection.
Class III luminaire.
SELV (Safety Extra Low-Voltage)
luminaire which can only be fed by an
extra low voltage supply (i.e. less than
50 Volts). Class III luminaires may not
be earthed.
Class I luminaire.
Luminaire with security earthing.
International protection marking
Mechanical characteristics
Electronic features
Listings
Protection degree class
ULR (Upward Light Ratio) nominal
value, device not inclined.
3° CIE flow code corresponding to 3 π
/ 2 sr (75.5°).

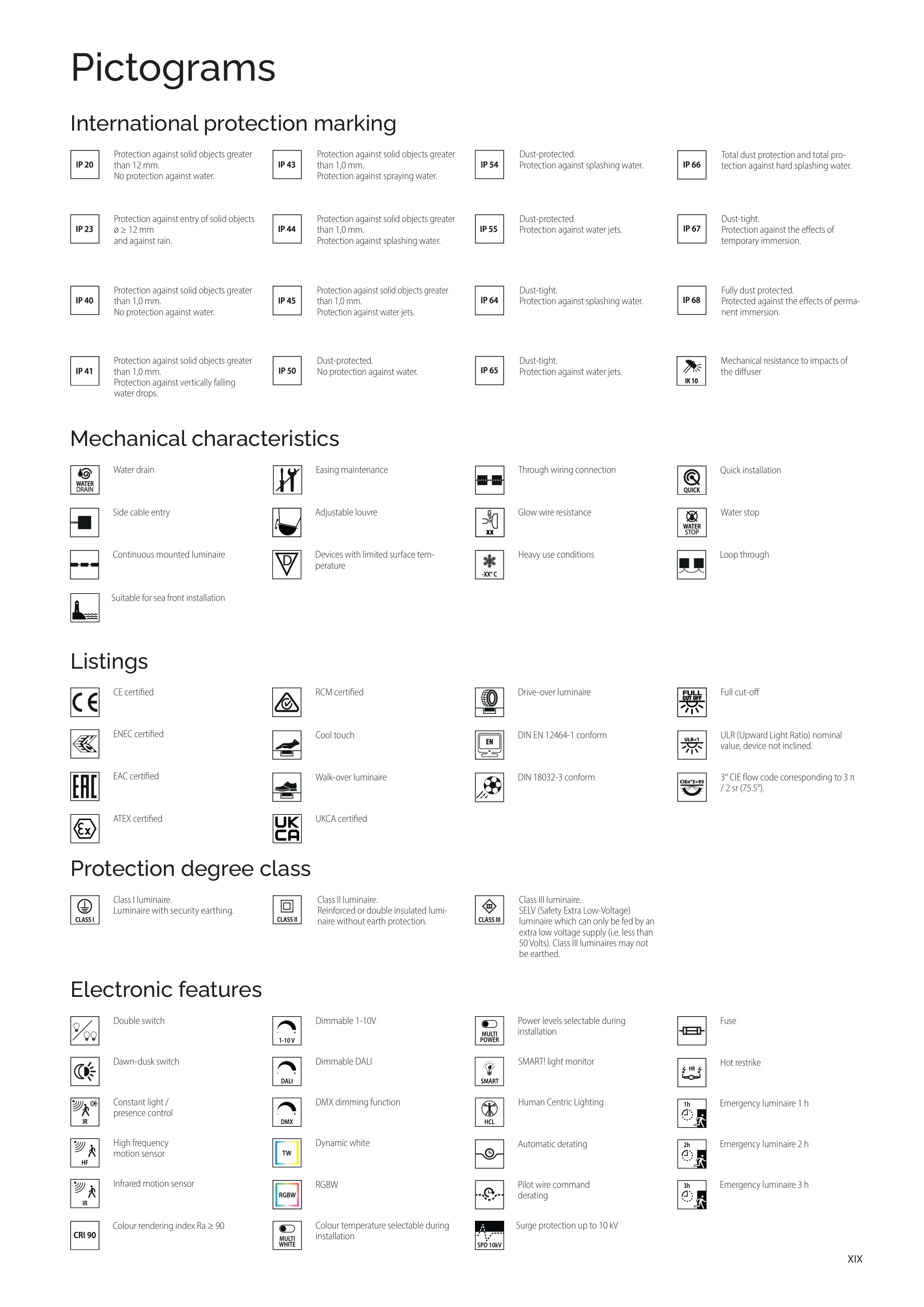

Pictograms
DMX dimming function
Colour rendering index Ra ≥ 90
Colour temperature selectable during
installation
Mechanical resistance to impacts of
the diffuser
Power levels selectable during
installation
Suitable for sea front installation
Surge protection up to 10 kV
XIX
