PERFORMANCE iN LIGHTING | powered by GEWISS

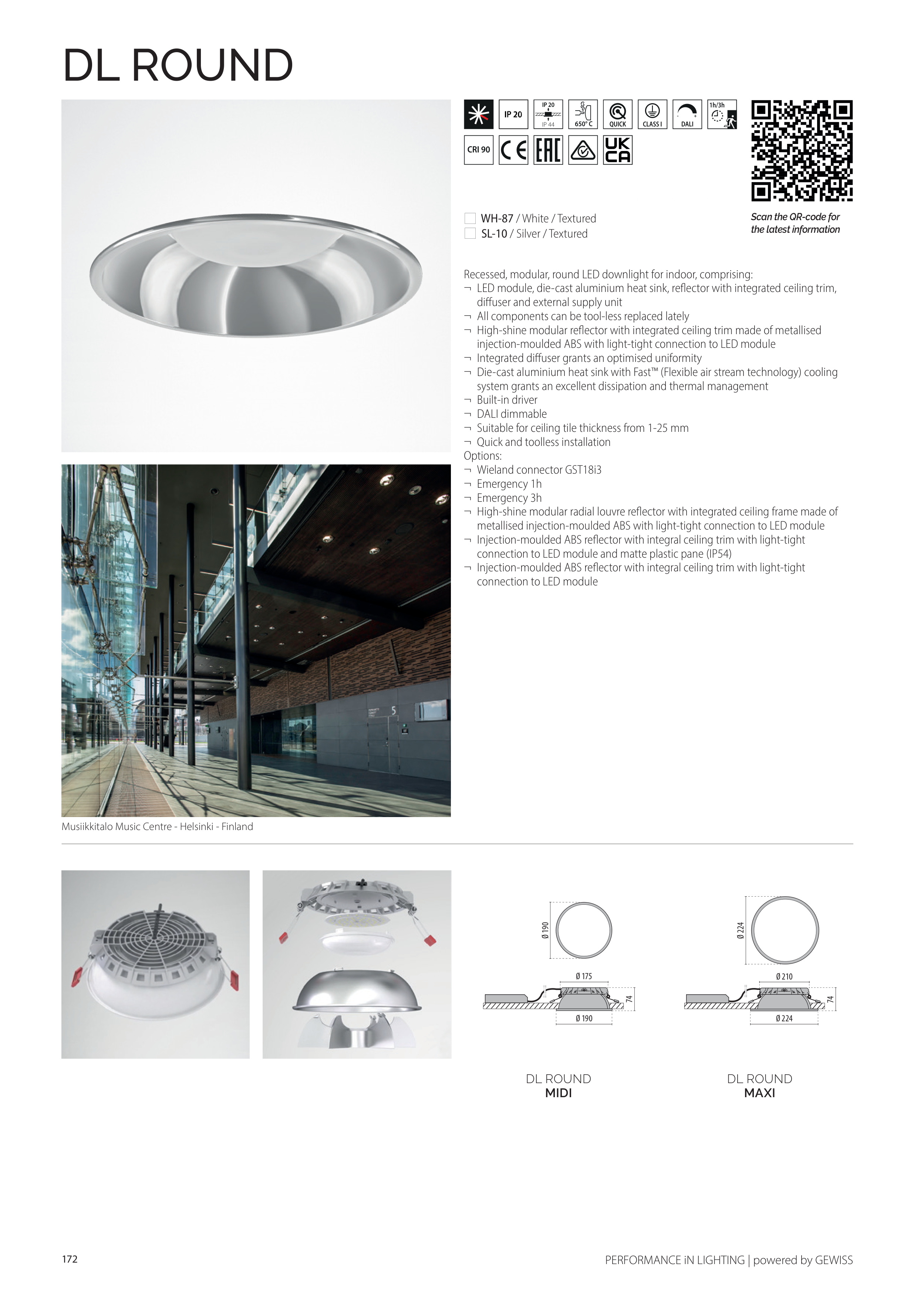

DL ROUND
650° C
74
Ø 224
Ø 210
Ø 224
74
Ø 190
Ø 175
Ø 190
DL ROUND
MAXI
DL ROUND
MIDI
Musiikkitalo Music Centre - Helsinki - Finland
Recessed, modular, round LED downlight for indoor, comprising:
¬ LED module, die-cast aluminium heat sink, reflector with integrated ceiling trim,
diffuser and external supply unit
¬ All components can be tool-less replaced lately
¬ High-shine modular reflector with integrated ceiling trim made of metallised
injection-moulded ABS with light-tight connection to LED module
¬ Integrated diffuser grants an optimised uniformity
¬ Die-cast aluminium heat sink with Fast™ (Flexible air stream technology) cooling
system grants an excellent dissipation and thermal management
¬ Built-in driver
¬ DALI dimmable
¬ Suitable for ceiling tile thickness from 1-25 mm
¬ Quick and toolless installation
Options:
¬ Wieland connector GST18i3
¬ Emergency 1h
¬ Emergency 3h
¬ High-shine modular radial louvre reflector with integrated ceiling frame made of
metallised injection-moulded ABS with light-tight connection to LED module
¬ Injection-moulded ABS reflector with integral ceiling trim with light-tight
connection to LED module and matte plastic pane (IP54)
¬ Injection-moulded ABS reflector with integral ceiling trim with light-tight
connection to LED module
T WH-87 / White / Textured
T SL-10 / Silver / Textured
Scan the QR-code for
the latest information
172
