ELIA PL M1 1200
650° C
03
1195
295
9

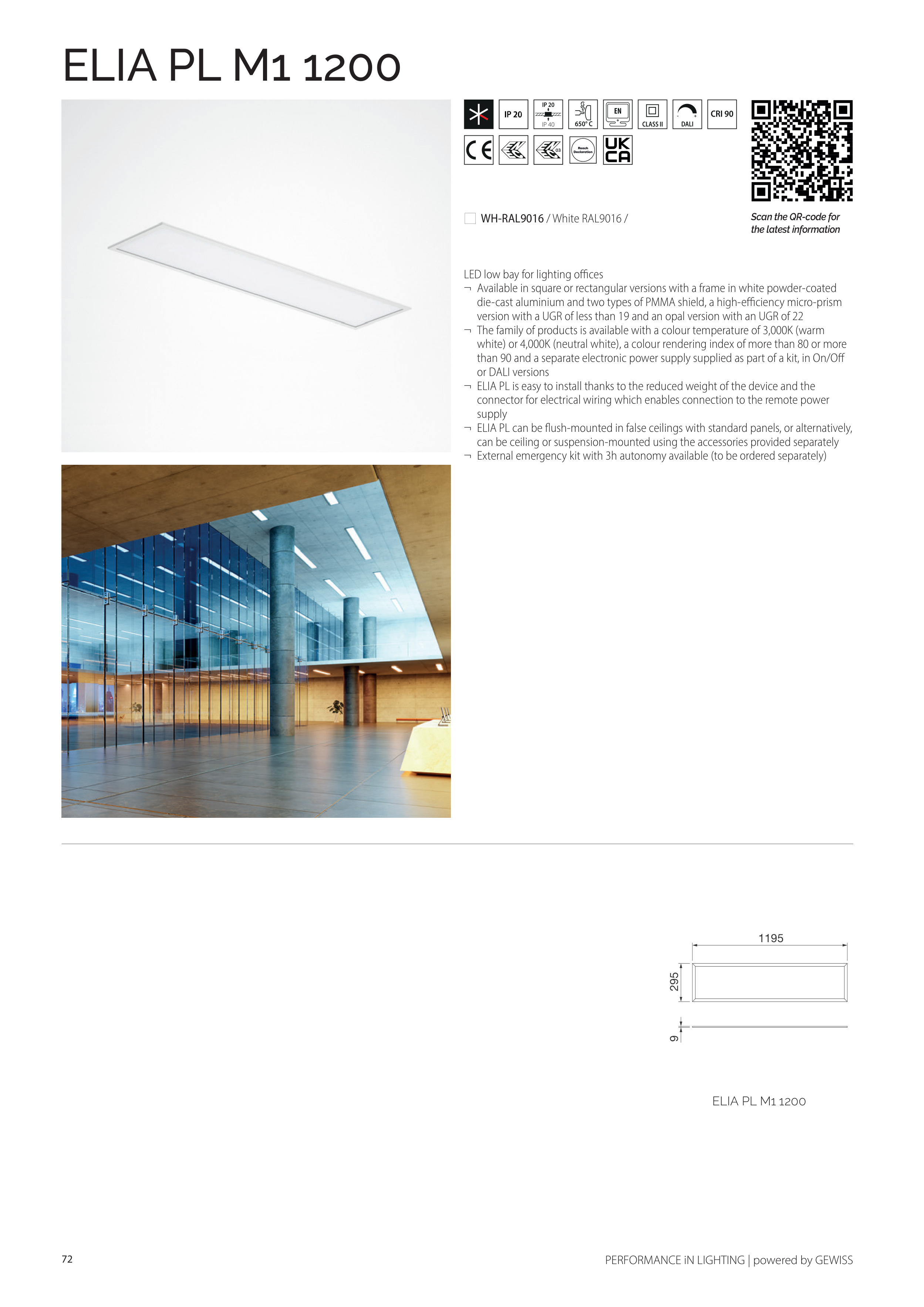

ELIA PL M1 1200
LED low bay for lighting offices
¬ Available in square or rectangular versions with a frame in white powder-coated
die-cast aluminium and two types of PMMA shield, a high-efficiency micro-prism
version with a UGR of less than 19 and an opal version with an UGR of 22
¬ The family of products is available with a colour temperature of 3,000K (warm
white) or 4,000K (neutral white), a colour rendering index of more than 80 or more
than 90 and a separate electronic power supply supplied as part of a kit, in On/Off
or DALI versions
¬ ELIA PL is easy to install thanks to the reduced weight of the device and the
connector for electrical wiring which enables connection to the remote power
supply
¬ ELIA PL can be flush-mounted in false ceilings with standard panels, or alternatively,
can be ceiling or suspension-mounted using the accessories provided separately
¬ External emergency kit with 3h autonomy available (to be ordered separately)
Scan the QR-code for
the latest information
T WH-RAL9016 / White RAL9016 /
72
