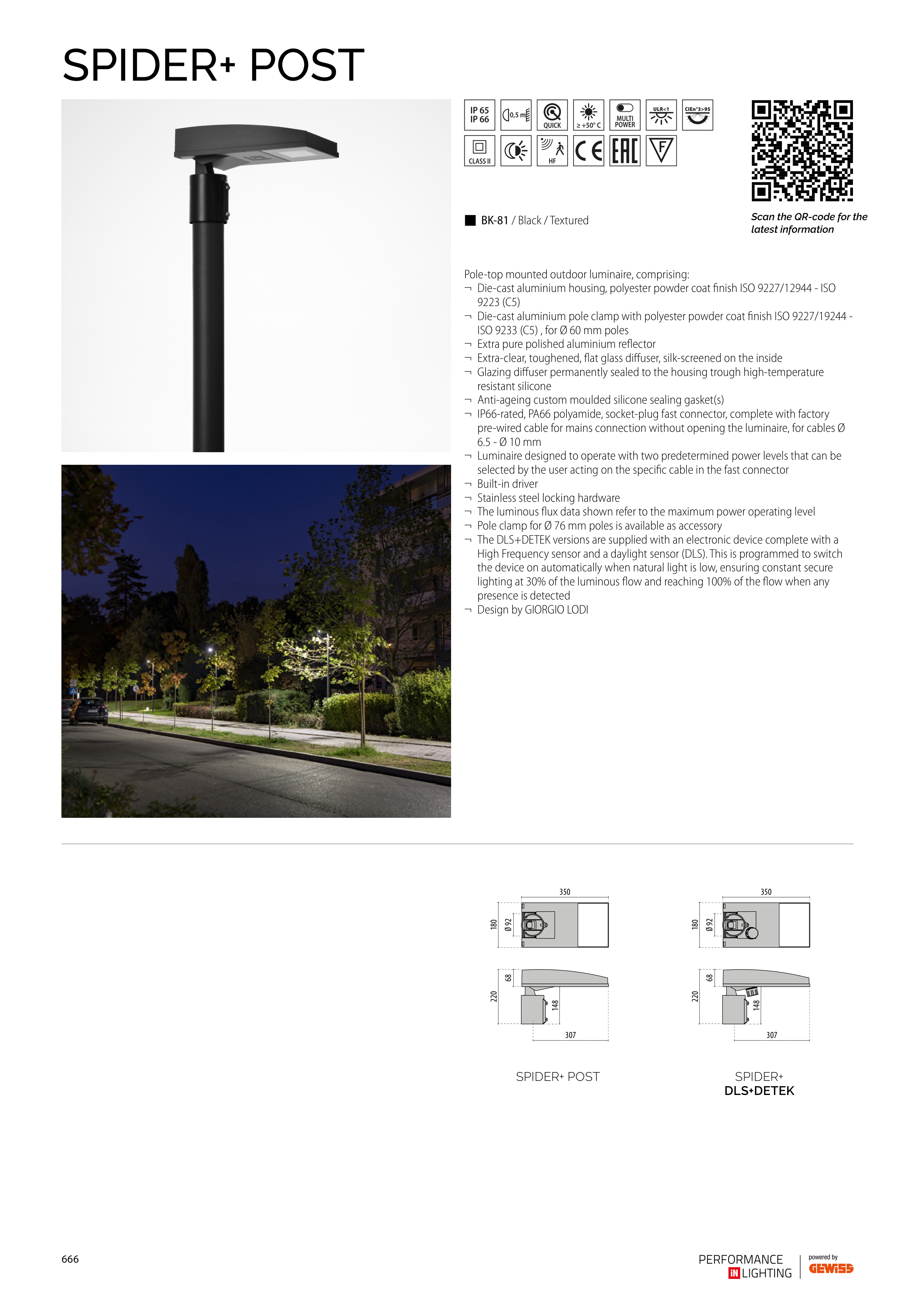

SPIDER+ POST
0,5 m
≥ +50° C
307
350
180
Ø 92
220
68
148
307
350
180
Ø 92
220
68
148
SPIDER+
DLS+DETEK
SPIDER+ POST
Pole-top mounted outdoor luminaire, comprising:
¬ Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO
9223 (C5)
¬ Die-cast aluminium pole clamp with polyester powder coat finish ISO 9227/19244 -
ISO 9233 (C5) , for Ø 60 mm poles
¬ Extra pure polished aluminium reflector
¬ Extra-clear, toughened, flat glass diffuser, silk-screened on the inside
¬ Glazing diffuser permanently sealed to the housing trough high-temperature
resistant silicone
¬ Anti-ageing custom moulded silicone sealing gasket(s)
¬ IP66-rated, PA66 polyamide, socket-plug fast connector, complete with factory
pre-wired cable for mains connection without opening the luminaire, for cables Ø
6.5 - Ø 10 mm
¬ Luminaire designed to operate with two predetermined power levels that can be
selected by the user acting on the specific cable in the fast connector
¬ Built-in driver
¬ Stainless steel locking hardware
¬ The luminous flux data shown refer to the maximum power operating level
¬ Pole clamp for Ø 76 mm poles is available as accessory
¬ The DLS+DETEK versions are supplied with an electronic device complete with a
High Frequency sensor and a daylight sensor (DLS). This is programmed to switch
the device on automatically when natural light is low, ensuring constant secure
lighting at 30% of the luminous flow and reaching 100% of the flow when any
presence is detected
¬ Design by GIORGIO LODI
o BK-81 / Black / Textured
Scan the QR-code for the
latest information
