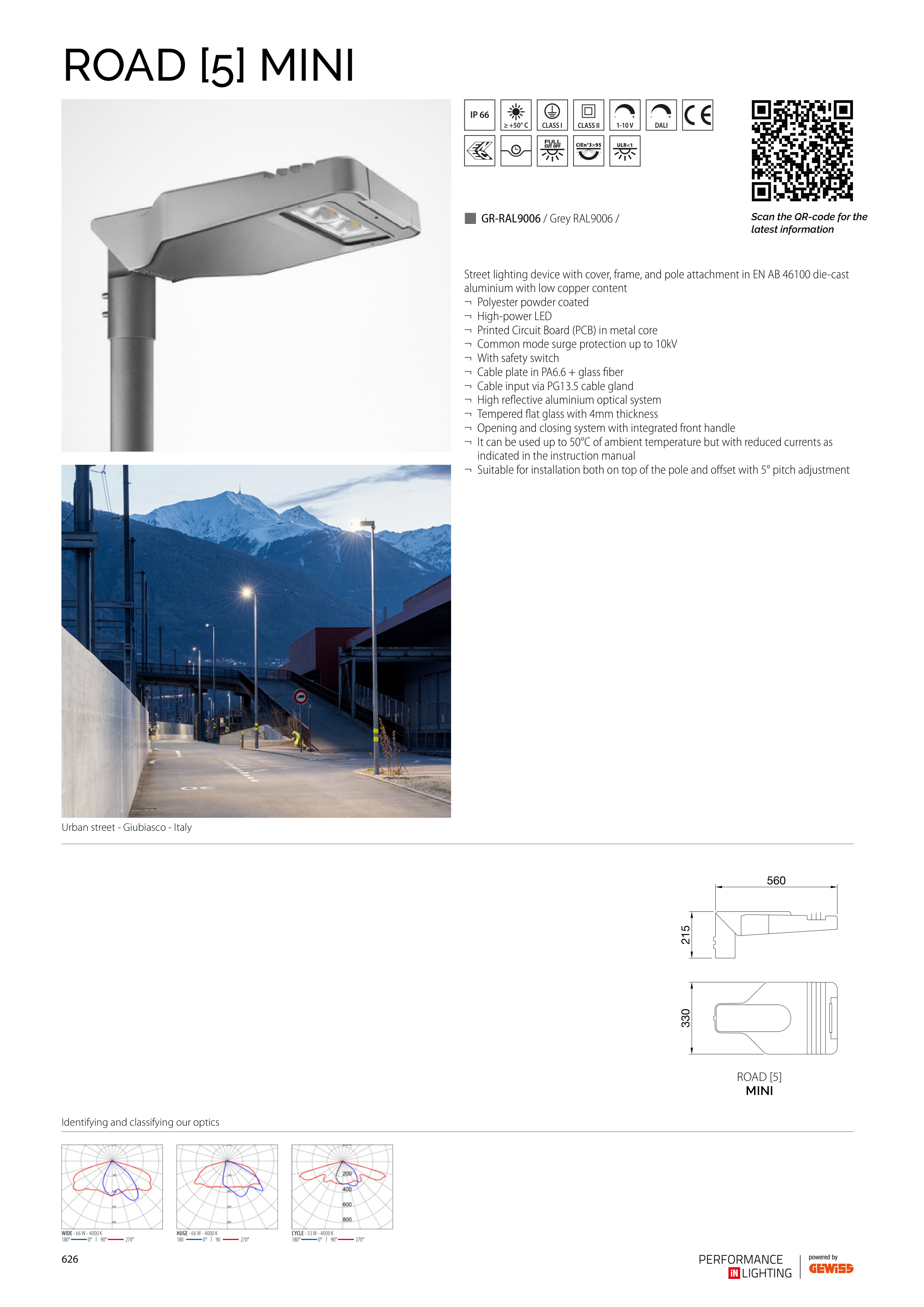

ROAD [5] MINI
≥ +50° C
215
560
330
ROAD [5]
MINI
3100132
WIDE - 66 W - 4000 K
HUGE - 66 W - 4000 K
CYCLE - 53 W - 4000 K
Urban street - Giubiasco - Italy
Street lighting device with cover, frame, and pole attachment in EN AB 46100 die-cast
aluminium with low copper content
¬ Polyester powder coated
¬ High-power LED
¬ Printed Circuit Board (PCB) in metal core
¬ Common mode surge protection up to 10kV
¬ With safety switch
¬ Cable plate in PA6.6 + glass fiber
¬ Cable input via PG13.5 cable gland
¬ High reflective aluminium optical system
¬ Tempered flat glass with 4mm thickness
¬ Opening and closing system with integrated front handle
¬ It can be used up to 50°C of ambient temperature but with reduced currents as
indicated in the instruction manual
¬ Suitable for installation both on top of the pole and offset with 5° pitch adjustment
Scan the QR-code for the
latest information
Identifying and classifying our optics
C GR-RAL9006 / Grey RAL9006 /
626
