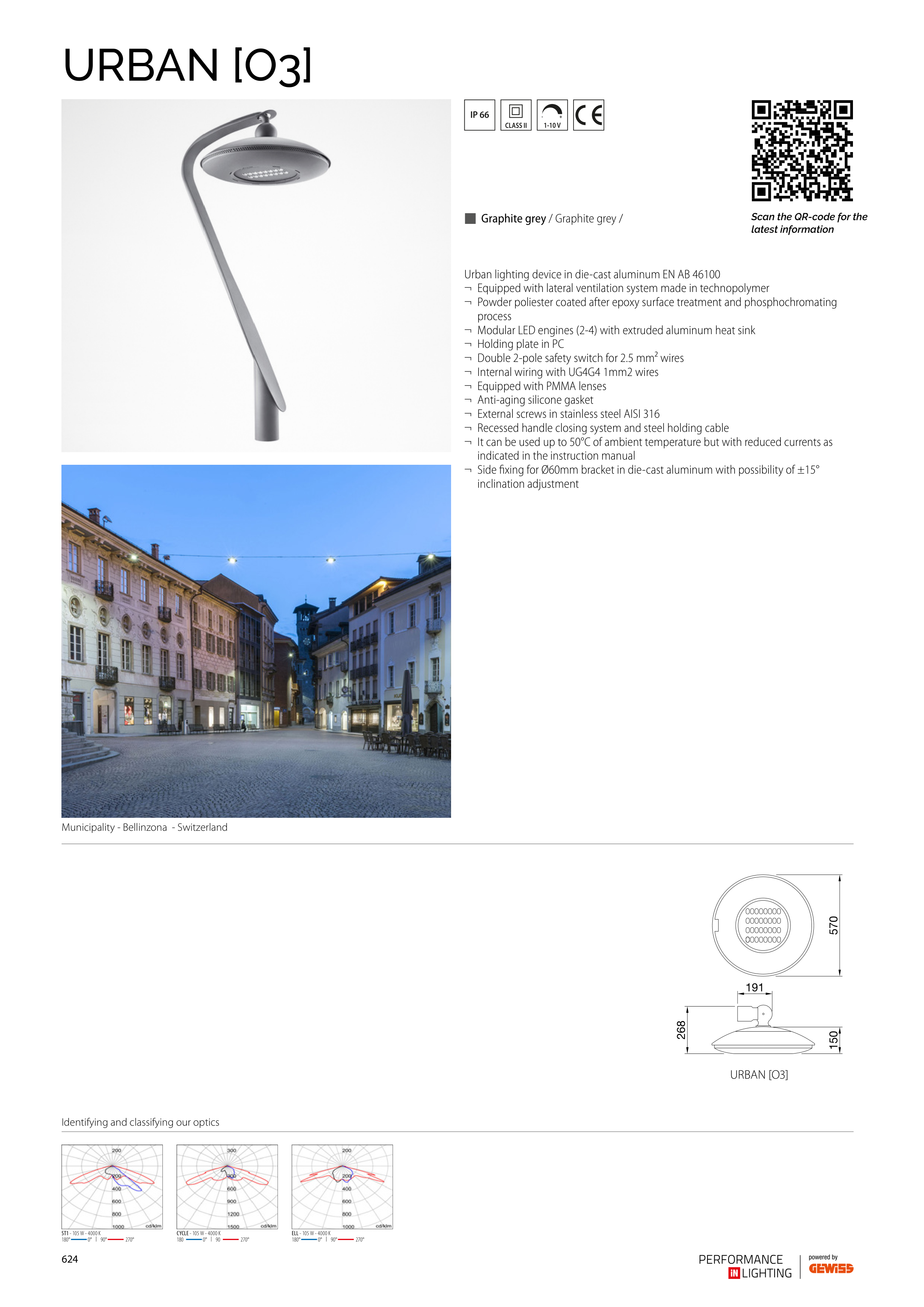

URBAN [O3]
150
191
268
570
URBAN [O3]
3100132
ST1 - 105 W - 4000 K
CYCLE - 105 W - 4000 K
ELL - 105 W - 4000 K
Municipality - Bellinzona - Switzerland
Urban lighting device in die-cast aluminum EN AB 46100
¬ Equipped with lateral ventilation system made in technopolymer
¬ Powder poliester coated after epoxy surface treatment and phosphochromating
process
¬ Modular LED engines (2-4) with extruded aluminum heat sink
¬ Holding plate in PC
¬ Double 2-pole safety switch for 2.5 mm² wires
¬ Internal wiring with UG4G4 1mm2 wires
¬ Equipped with PMMA lenses
¬ Anti-aging silicone gasket
¬ External screws in stainless steel AISI 316
¬ Recessed handle closing system and steel holding cable
¬ It can be used up to 50°C of ambient temperature but with reduced currents as
indicated in the instruction manual
¬ Side fixing for Ø60mm bracket in die-cast aluminum with possibility of ±15°
inclination adjustment
Scan the QR-code for the
latest information
Identifying and classifying our optics
L Graphite grey / Graphite grey /
