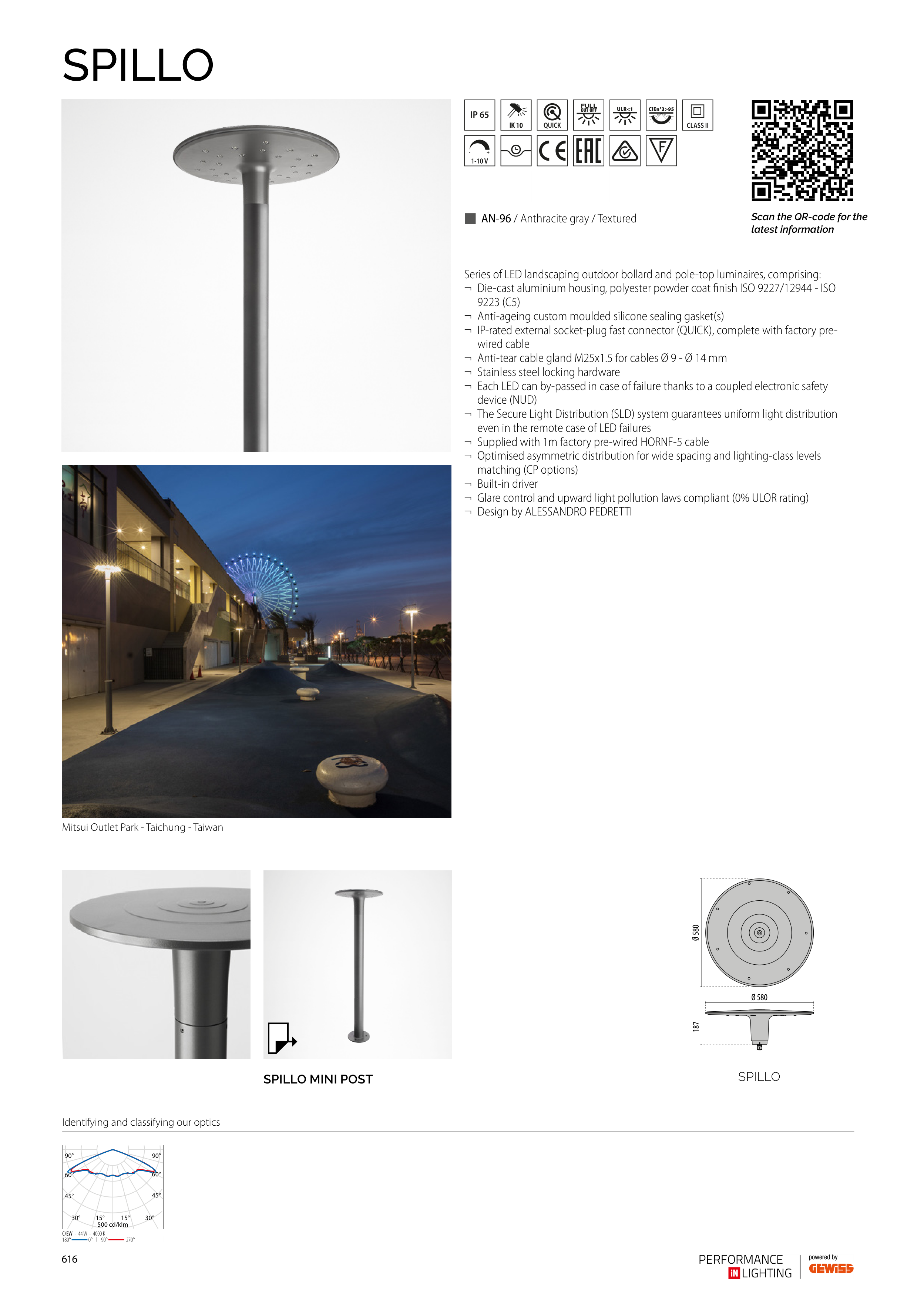

SPILLO
187
Ø 580
Ø 580
SPILLO
Mitsui Outlet Park - Taichung - Taiwan
SPILLO MINI POST
500 cd/klm
500 cd/klm
500 cd/klm
500 cd/klm
500 cd/klm
90°
90°
90°
90°
90°
90°
90°
90°
90°
90°
60°
60°
60°
60°
60°
45°
45°
45°
45°
45°
30°
30°
30°
30°
30°
15°
15°
15°
15°
15°
15°
15°
15°
15°
15°
30°
30°
30°
30°
30°
45°
45°
45°
45°
45°
60°
60°
60°
60°
60°
C/EW - 44 W - 4000 K 303501
Series of LED landscaping outdoor bollard and pole-top luminaires, comprising:
¬ Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO
9223 (C5)
¬ Anti-ageing custom moulded silicone sealing gasket(s)
¬ IP-rated external socket-plug fast connector (QUICK), complete with factory pre-
wired cable
¬ Anti-tear cable gland M25x1.5 for cables Ø 9 - Ø 14 mm
¬ Stainless steel locking hardware
¬ Each LED can by-passed in case of failure thanks to a coupled electronic safety
device (NUD)
¬ The Secure Light Distribution (SLD) system guarantees uniform light distribution
even in the remote case of LED failures
¬ Supplied with 1m factory pre-wired HORNF-5 cable
¬ Optimised asymmetric distribution for wide spacing and lighting-class levels
matching (CP options)
¬ Built-in driver
¬ Glare control and upward light pollution laws compliant (0% ULOR rating)
¬ Design by ALESSANDRO PEDRETTI
L AN-96 / Anthracite gray / Textured
Scan the QR-code for the
latest information
Identifying and classifying our optics
616
