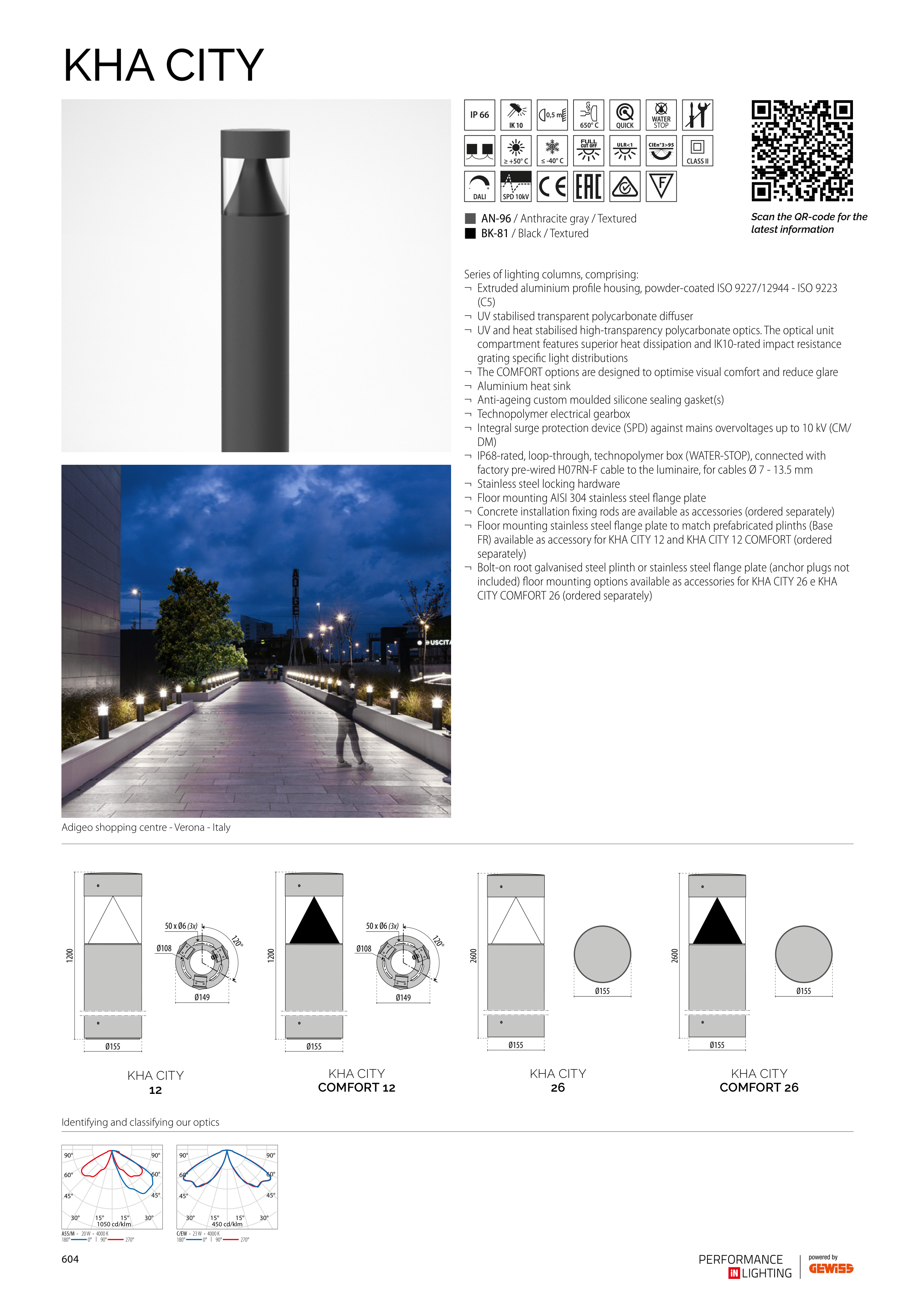

KHA CITY
0,5 m
650° C
≥ +50° C ≤ -40° C
Ø149
50 x Ø6 (3x)
Ø155
1200
120°
Ø108
Ø155
Ø155
2600
Ø155
Ø155
2600
KHA CITY
COMFORT 12
KHA CITY
COMFORT 26
KHA CITY
26
400 cd/klm
400 cd/klm
400 cd/klm
400 cd/klm
1050 cd/klm
90°
90°
90°
90°
90°
90°
90°
90°
90°
90°
60°
60°
60°
60°
60°
45°
45°
45°
45°
45°
30°
30°
30°
30°
30°
15°
15°
15°
15°
15°
15°
15°
15°
15°
15°
30°
30°
30°
30°
30°
45°
45°
45°
45°
45°
60°
60°
60°
60°
60°
A55/M - 20W - 4000 K 3113976
400 cd/klm
400 cd/klm
400 cd/klm
400 cd/klm
450 cd/klm
90°
90°
90°
90°
90°
90°
90°
90°
90°
90°
60°
60°
60°
60°
60°
45°
45°
45°
45°
45°
30°
30°
30°
30°
30°
15°
15°
15°
15°
15°
15°
15°
15°
15°
15°
30°
30°
30°
30°
30°
45°
45°
45°
45°
45°
60°
60°
60°
60°
60°
C/EW - 23W - 4000 K 3113991
Adigeo shopping centre - Verona - Italy
Ø149
50 x Ø6 (3x)
Ø155
1200
120°
Ø108
KHA CITY
12
Series of lighting columns, comprising:
¬ Extruded aluminium profile housing, powder-coated ISO 9227/12944 - ISO 9223
(C5)
¬ UV stabilised transparent polycarbonate diffuser
¬ UV and heat stabilised high-transparency polycarbonate optics. The optical unit
compartment features superior heat dissipation and IK10-rated impact resistance
grating specific light distributions
¬ The COMFORT options are designed to optimise visual comfort and reduce glare
¬ Aluminium heat sink
¬ Anti-ageing custom moulded silicone sealing gasket(s)
¬ Technopolymer electrical gearbox
¬ Integral surge protection device (SPD) against mains overvoltages up to 10 kV (CM/
DM)
¬ IP68-rated, loop-through, technopolymer box (WATER-STOP), connected with
factory pre-wired H07RN-F cable to the luminaire, for cables Ø 7 - 13.5 mm
¬ Stainless steel locking hardware
¬ Floor mounting AISI 304 stainless steel flange plate
¬ Concrete installation fixing rods are available as accessories (ordered separately)
¬ Floor mounting stainless steel flange plate to match prefabricated plinths (Base
FR) available as accessory for KHA CITY 12 and KHA CITY 12 COMFORT (ordered
separately)
¬ Bolt-on root galvanised steel plinth or stainless steel flange plate (anchor plugs not
included) floor mounting options available as accessories for KHA CITY 26 e KHA
CITY COMFORT 26 (ordered separately)
L AN-96 / Anthracite gray / Textured
o BK-81 / Black / Textured
Scan the QR-code for the
latest information
Identifying and classifying our optics
604
