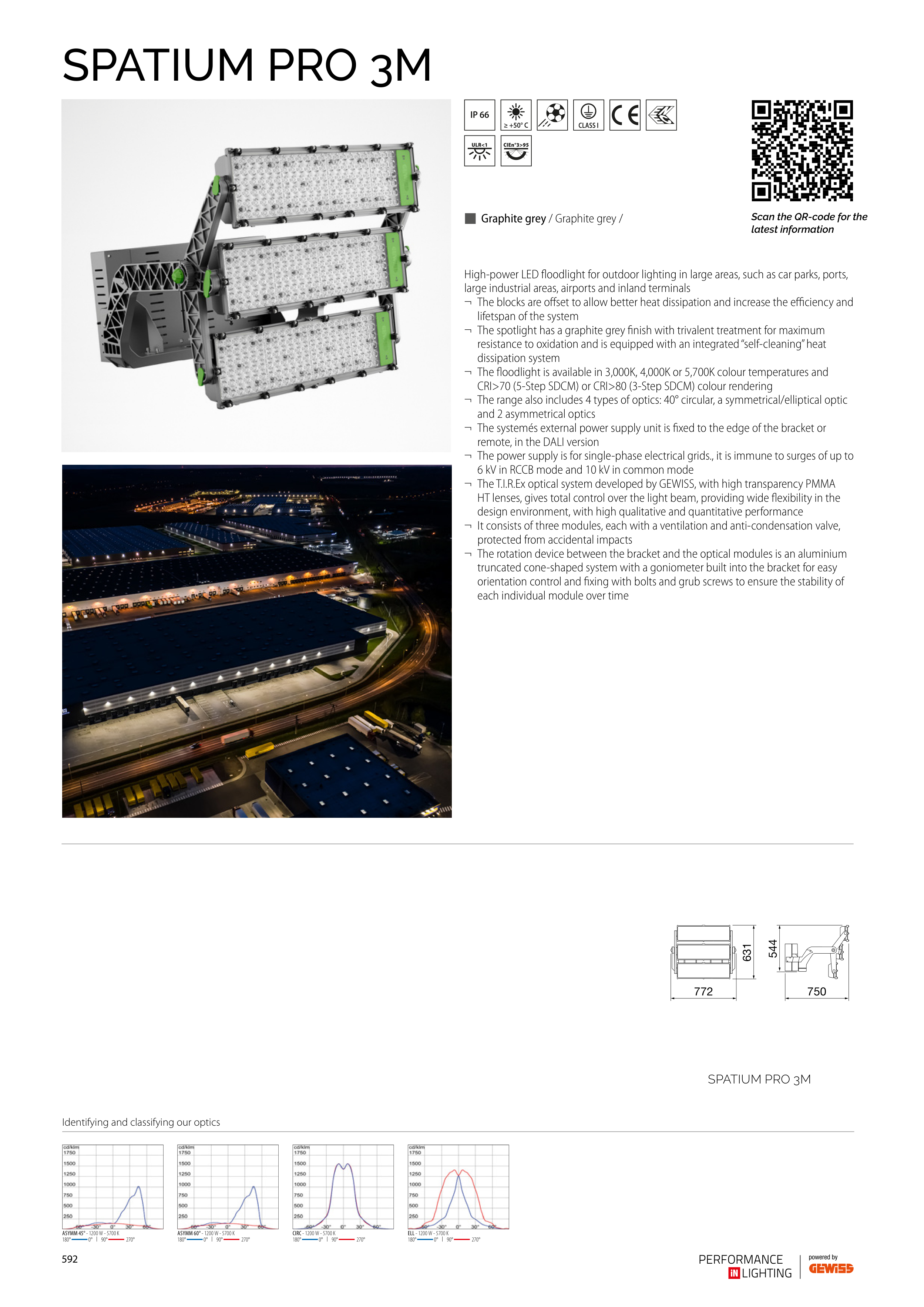

SPATIUM PRO 3M
≥ +50° C
772
750
631
544
SPATIUM PRO 3M
3100132
ASYMM 60° - 1200 W - 5700 K
3100132
CIRC - 1200 W - 5700 K
3100132
ASYMM 45° - 1200 W - 5700 K
3100132
ELL - 1200 W - 5700 K
High-power LED floodlight for outdoor lighting in large areas, such as car parks, ports,
large industrial areas, airports and inland terminals
¬ The blocks are offset to allow better heat dissipation and increase the efficiency and
lifetspan of the system
¬ The spotlight has a graphite grey finish with trivalent treatment for maximum
resistance to oxidation and is equipped with an integrated “self-cleaning” heat
dissipation system
¬ The floodlight is available in 3,000K, 4,000K or 5,700K colour temperatures and
CRI>70 (5-Step SDCM) or CRI>80 (3-Step SDCM) colour rendering
¬ The range also includes 4 types of optics: 40° circular, a symmetrical/elliptical optic
and 2 asymmetrical optics
¬ The systemés external power supply unit is fixed to the edge of the bracket or
remote, in the DALI version
¬ The power supply is for single-phase electrical grids., it is immune to surges of up to
6 kV in RCCB mode and 10 kV in common mode
¬ The T.I.R.Ex optical system developed by GEWISS, with high transparency PMMA
HT lenses, gives total control over the light beam, providing wide flexibility in the
design environment, with high qualitative and quantitative performance
¬ It consists of three modules, each with a ventilation and anti-condensation valve,
protected from accidental impacts
¬ The rotation device between the bracket and the optical modules is an aluminium
truncated cone-shaped system with a goniometer built into the bracket for easy
orientation control and fixing with bolts and grub screws to ensure the stability of
each individual module over time
L Graphite grey / Graphite grey /
Scan the QR-code for the
latest information
Identifying and classifying our optics
592
