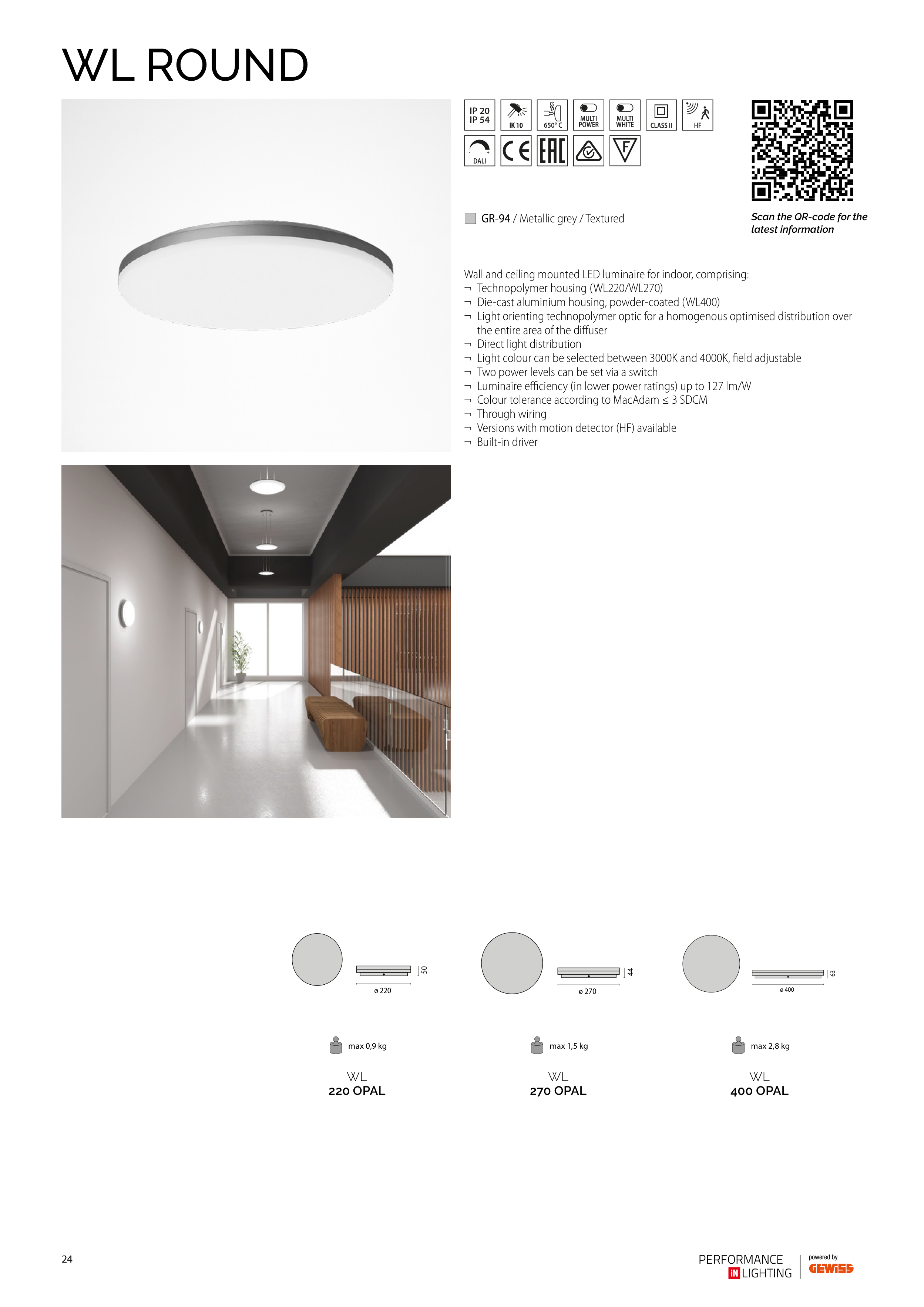

WL ROUND
IP 20
IP 54
650° C
ø 400
63
44
ø 270
ø 220
50
WL
400 OPAL
WL
270 OPAL
WL
220 OPAL
Wall and ceiling mounted LED luminaire for indoor, comprising:
¬ Technopolymer housing (WL220/WL270)
¬ Die-cast aluminium housing, powder-coated (WL400)
¬ Light orienting technopolymer optic for a homogenous optimised distribution over
the entire area of the diffuser
¬ Direct light distribution
¬ Light colour can be selected between 3000K and 4000K, field adjustable
¬ Two power levels can be set via a switch
¬ Luminaire efficiency (in lower power ratings) up to 127 lm/W
¬ Colour tolerance according to MacAdam ≤ 3 SDCM
¬ Through wiring
¬ Versions with motion detector (HF) available
¬ Built-in driver
I GR-94 / Metallic grey / Textured
Scan the QR-code for the
latest information
24
max 2,8 kg
max 1,5 kg
max 0,9 kg
