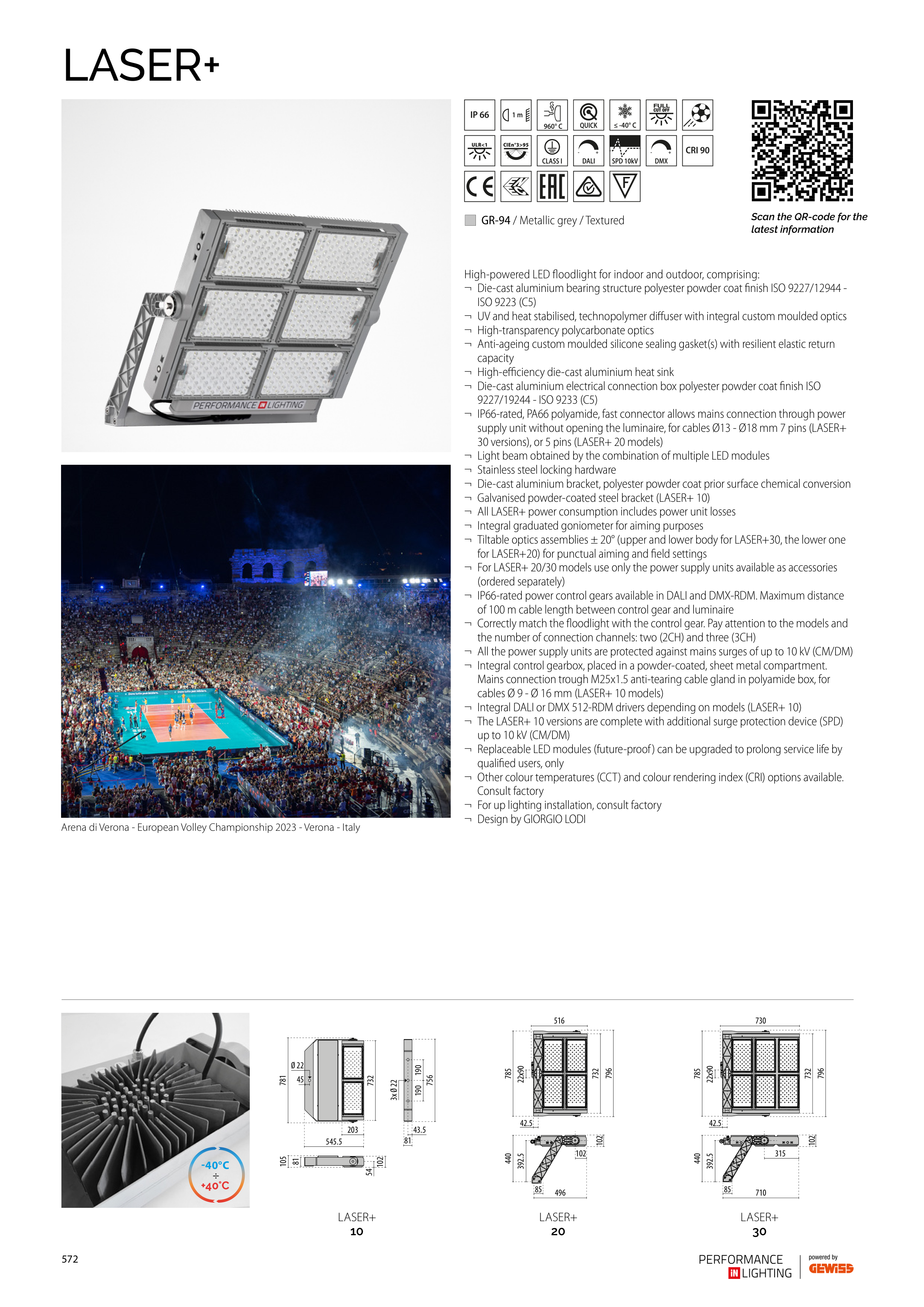

LASER+
1 m
960° C
≤ -40° C
22x90
785
796
732
730
42.5
710
85
440
392.5
315
102
22x90
785
796
732
516
42.5
496
85
440
392.5
102
102
781
105
81
732
203
545.5
54
102
190
190
756
43.5
81
Ø 22
45
3x Ø 22
LASER+
30
LASER+
20
LASER+
10
Arena di Verona - European Volley Championship 2023 - Verona - Italy
High-powered LED floodlight for indoor and outdoor, comprising:
¬ Die-cast aluminium bearing structure polyester powder coat finish ISO 9227/12944 -
ISO 9223 (C5)
¬ UV and heat stabilised, technopolymer diffuser with integral custom moulded optics
¬ High-transparency polycarbonate optics
¬ Anti-ageing custom moulded silicone sealing gasket(s) with resilient elastic return
capacity
¬ High-efficiency die-cast aluminium heat sink
¬ Die-cast aluminium electrical connection box polyester powder coat finish ISO
9227/19244 - ISO 9233 (C5)
¬ IP66-rated, PA66 polyamide, fast connector allows mains connection through power
supply unit without opening the luminaire, for cables Ø13 - Ø18 mm 7 pins (LASER+
30 versions), or 5 pins (LASER+ 20 models)
¬ Light beam obtained by the combination of multiple LED modules
¬ Stainless steel locking hardware
¬ Die-cast aluminium bracket, polyester powder coat prior surface chemical conversion
¬ Galvanised powder-coated steel bracket (LASER+ 10)
¬ All LASER+ power consumption includes power unit losses
¬ Integral graduated goniometer for aiming purposes
¬ Tiltable optics assemblies ± 20° (upper and lower body for LASER+30, the lower one
for LASER+20) for punctual aiming and field settings
¬ For LASER+ 20/30 models use only the power supply units available as accessories
(ordered separately)
¬ IP66-rated power control gears available in DALI and DMX-RDM. Maximum distance
of 100 m cable length between control gear and luminaire
¬ Correctly match the floodlight with the control gear. Pay attention to the models and
the number of connection channels: two (2CH) and three (3CH)
¬ All the power supply units are protected against mains surges of up to 10 kV (CM/DM)
¬ Integral control gearbox, placed in a powder-coated, sheet metal compartment.
Mains connection trough M25x1.5 anti-tearing cable gland in polyamide box, for
cables Ø 9 - Ø 16 mm (LASER+ 10 models)
¬ Integral DALI or DMX 512-RDM drivers depending on models (LASER+ 10)
¬ The LASER+ 10 versions are complete with additional surge protection device (SPD)
up to 10 kV (CM/DM)
¬ Replaceable LED modules (future-proof) can be upgraded to prolong service life by
qualified users, only
¬ Other colour temperatures (CCT) and colour rendering index (CRI) options available.
Consult factory
¬ For up lighting installation, consult factory
¬ Design by GIORGIO LODI
I GR-94 / Metallic grey / Textured
Scan the QR-code for the
latest information
572
-40°C
÷
+40°C
