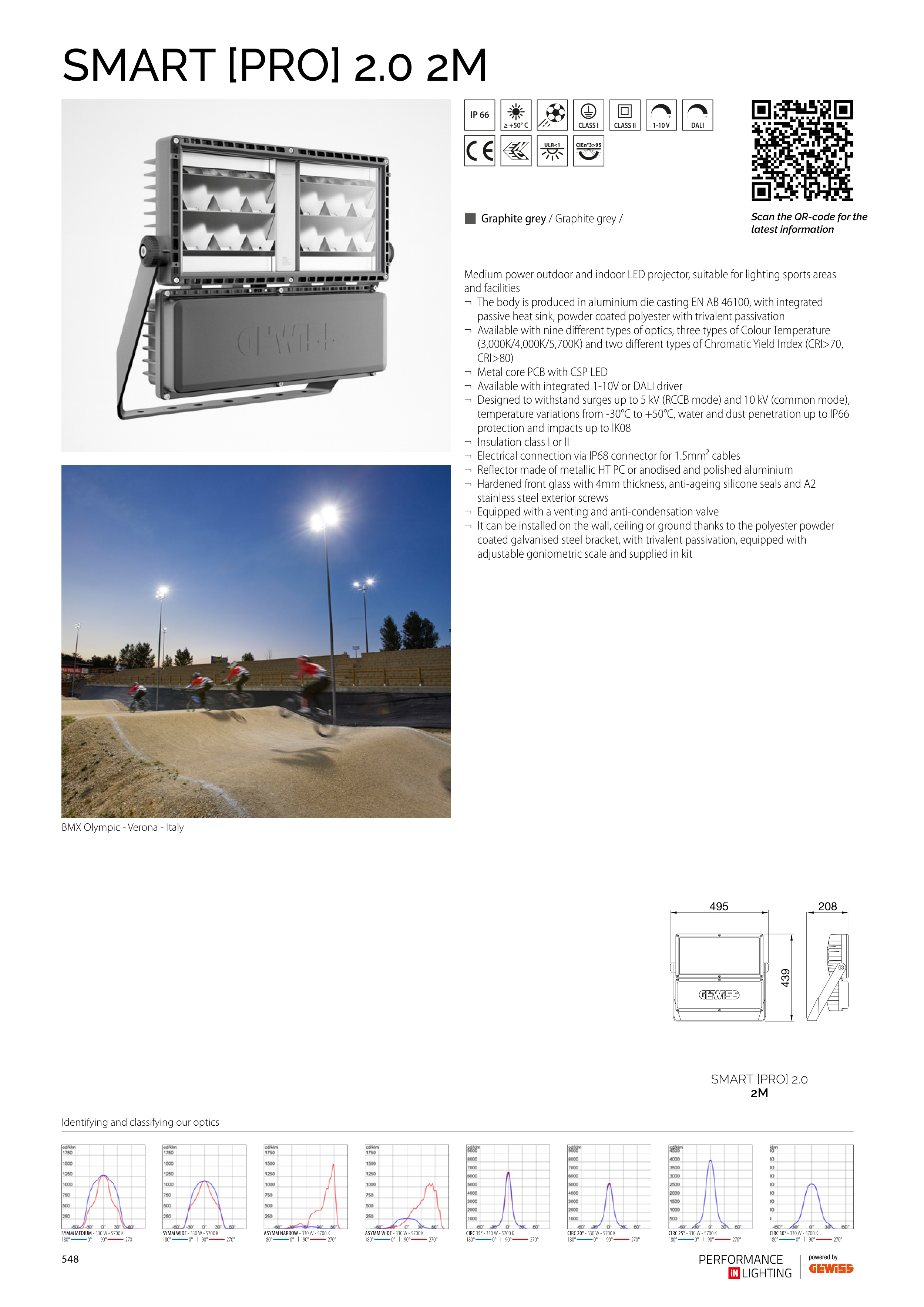

SMART [PRO] 2.0 2M
≥ +50° C
208
495
439
SMART [PRO] 2.0
2M
BMX Olympic - Verona - Italy
3100132
CIRC 20° - 330 W - 5700 K
3100132
SYMM MEDIUM - 330 W - 5700 K
3100132
CIRC 25° - 330 W - 5700 K
3100132
ASYMM WIDE - 330 W - 5700 K
3100132
CIRC 15° - 330 W - 5700 K
3100132
SYMM WIDE - 330 W - 5700 K
3100132
CIRC 30° - 330 W - 5700 K
3100132
ASYMM NARROW - 330 W - 5700 K
Medium power outdoor and indoor LED projector, suitable for lighting sports areas
and facilities
¬ The body is produced in aluminium die casting EN AB 46100, with integrated
passive heat sink, powder coated polyester with trivalent passivation
¬ Available with nine different types of optics, three types of Colour Temperature
(3,000K/4,000K/5,700K) and two different types of Chromatic Yield Index (CRI>70,
CRI>80)
¬ Metal core PCB with CSP LED
¬ Available with integrated 1-10V or DALI driver
¬ Designed to withstand surges up to 5 kV (RCCB mode) and 10 kV (common mode),
temperature variations from -30°C to +50°C, water and dust penetration up to IP66
protection and impacts up to IK08
¬ Insulation class I or II
¬ Electrical connection via IP68 connector for 1.5mm² cables
¬ Reflector made of metallic HT PC or anodised and polished aluminium
¬ Hardened front glass with 4mm thickness, anti-ageing silicone seals and A2
stainless steel exterior screws
¬ Equipped with a venting and anti-condensation valve
¬ It can be installed on the wall, ceiling or ground thanks to the polyester powder
coated galvanised steel bracket, with trivalent passivation, equipped with
adjustable goniometric scale and supplied in kit
Scan the QR-code for the
latest information
Identifying and classifying our optics
L Graphite grey / Graphite grey /
548
