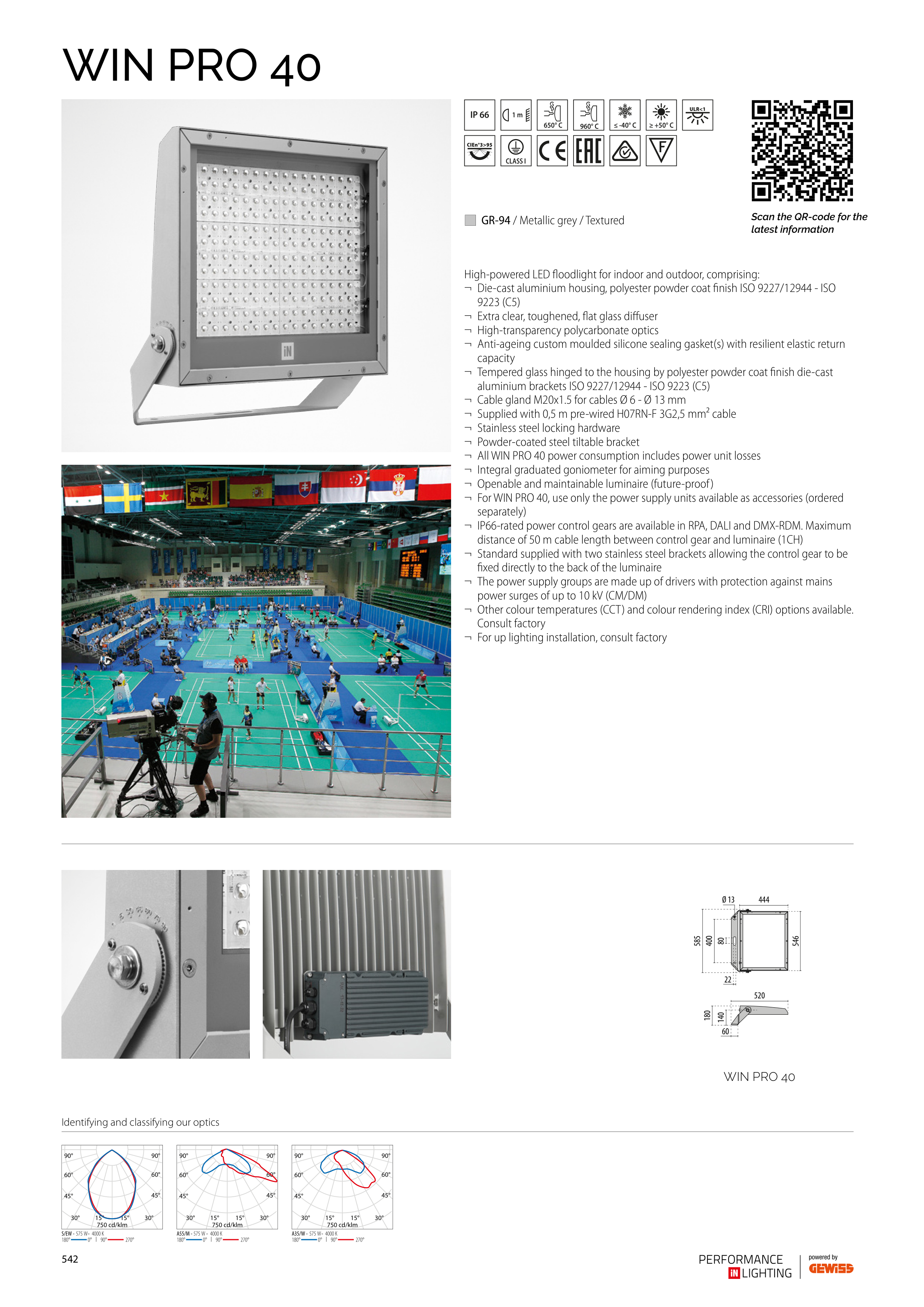

WIN PRO 40
1 m
650° C
960° C ≤ -40° C ≥ +50° C
585
400
80
546
140
180
Ø 13
444
520
22
60
WIN PRO 40
m
m
750 cd/klm
90°
90°
90°
90°
90°
90°
90°
90°
90°
90°
60°
60°
60°
60°
60°
45°
45°
45°
45°
45°
30°
30°
30°
30°
30°
15°
15°
15°
15°
15°
15°
15°
15°
15°
15°
30°
30°
30°
30°
30°
45°
45°
45°
45°
45°
60°
60°
60°
60°
60°
S/EW - 575 W - 4000 K ��3118167��
m
m
750 cd/klm
90°
90°
90°
90°
90°
90°
90°
90°
90°
90°
60°
60°
60°
60°
60°
45°
45°
45°
45°
45°
30°
30°
30°
30°
30°
15°
15°
15°
15°
15°
15°
15°
15°
15°
15°
30°
30°
30°
30°
30°
45°
45°
45°
45°
45°
60°
60°
60°
60°
60°
A55/M - 575 W - 4000 K ��3118167��
m
m
750 cd/klm
90°
90°
90°
90°
90°
90°
90°
90°
90°
90°
60°
60°
60°
60°
60°
45°
45°
45°
45°
45°
30°
30°
30°
30°
30°
15°
15°
15°
15°
15°
15°
15°
15°
15°
15°
30°
30°
30°
30°
30°
45°
45°
45°
45°
45°
60°
60°
60°
60°
60°
A35/W - 575 W - 4000 K ��3118167��
High-powered LED floodlight for indoor and outdoor, comprising:
¬ Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO
9223 (C5)
¬ Extra clear, toughened, flat glass diffuser
¬ High-transparency polycarbonate optics
¬ Anti-ageing custom moulded silicone sealing gasket(s) with resilient elastic return
capacity
¬ Tempered glass hinged to the housing by polyester powder coat finish die-cast
aluminium brackets ISO 9227/12944 - ISO 9223 (C5)
¬ Cable gland M20x1.5 for cables Ø 6 - Ø 13 mm
¬ Supplied with 0,5 m pre-wired H07RN-F 3G2,5 mm² cable
¬ Stainless steel locking hardware
¬ Powder-coated steel tiltable bracket
¬ All WIN PRO 40 power consumption includes power unit losses
¬ Integral graduated goniometer for aiming purposes
¬ Openable and maintainable luminaire (future-proof)
¬ For WIN PRO 40, use only the power supply units available as accessories (ordered
separately)
¬ IP66-rated power control gears are available in RPA, DALI and DMX-RDM. Maximum
distance of 50 m cable length between control gear and luminaire (1CH)
¬ Standard supplied with two stainless steel brackets allowing the control gear to be
fixed directly to the back of the luminaire
¬ The power supply groups are made up of drivers with protection against mains
power surges of up to 10 kV (CM/DM)
¬ Other colour temperatures (CCT) and colour rendering index (CRI) options available.
Consult factory
¬ For up lighting installation, consult factory
I GR-94 / Metallic grey / Textured
Scan the QR-code for the
latest information
Identifying and classifying our optics
542
