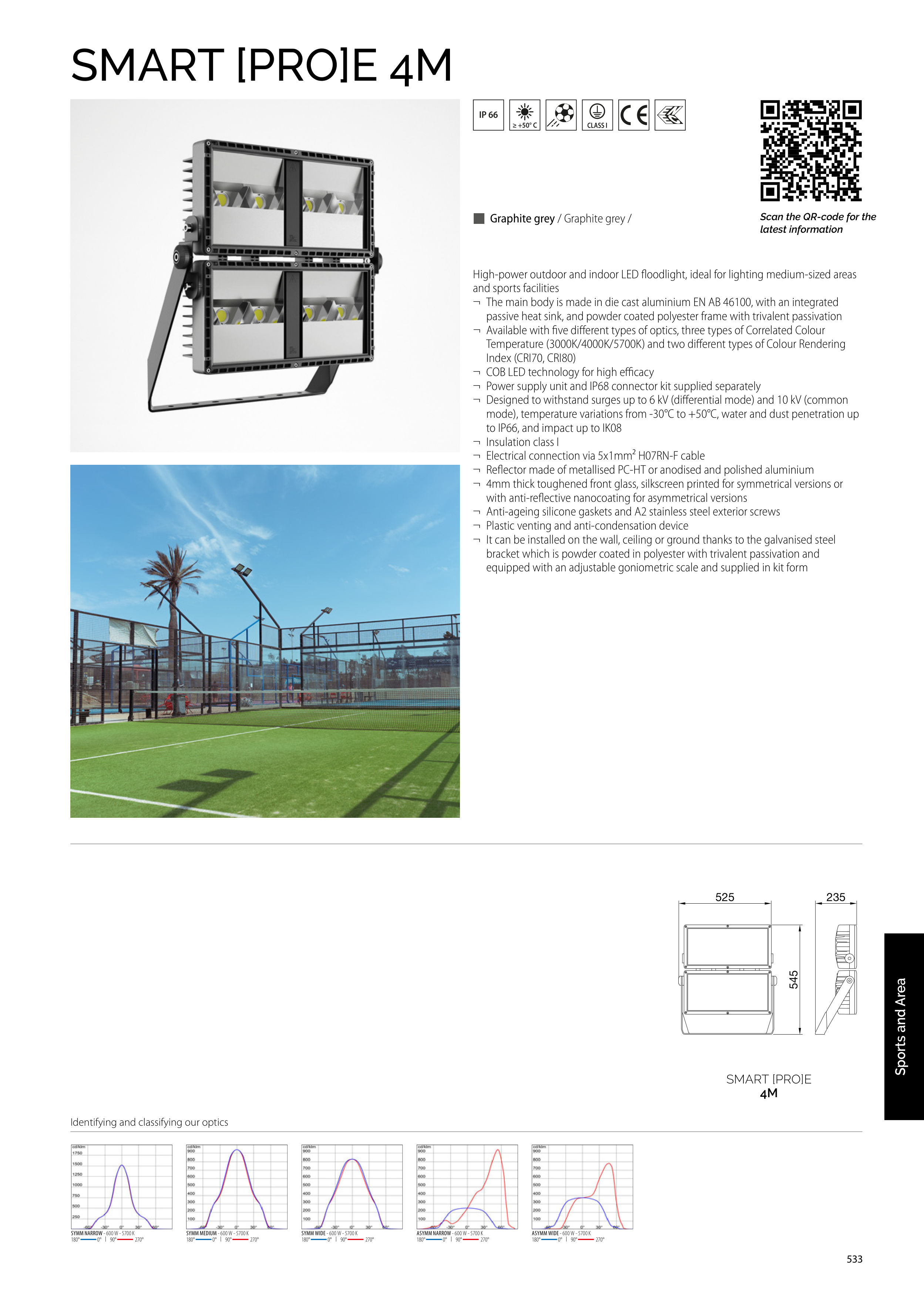

SMART [PRO]E 4M
≥ +50° C
235
525
545
SMART [PRO]E
4M
3100132
SYMM MEDIUM - 600 W - 5700 K
3100132
ASYMM WIDE - 600 W - 5700 K
3100132
SYMM WIDE - 600 W - 5700 K
3100132
SYMM NARROW - 600 W - 5700 K
3100132
ASYMM NARROW - 600 W - 5700 K
Sports and Area
High-power outdoor and indoor LED floodlight, ideal for lighting medium-sized areas
and sports facilities
¬ The main body is made in die cast aluminium EN AB 46100, with an integrated
passive heat sink, and powder coated polyester frame with trivalent passivation
¬ Available with five different types of optics, three types of Correlated Colour
Temperature (3000K/4000K/5700K) and two different types of Colour Rendering
Index (CRI70, CRI80)
¬ COB LED technology for high efficacy
¬ Power supply unit and IP68 connector kit supplied separately
¬ Designed to withstand surges up to 6 kV (differential mode) and 10 kV (common
mode), temperature variations from -30°C to +50°C, water and dust penetration up
to IP66, and impact up to IK08
¬ Insulation class I
¬ Electrical connection via 5x1mm² H07RN-F cable
¬ Reflector made of metallised PC-HT or anodised and polished aluminium
¬ 4mm thick toughened front glass, silkscreen printed for symmetrical versions or
with anti-reflective nanocoating for asymmetrical versions
¬ Anti-ageing silicone gaskets and A2 stainless steel exterior screws
¬ Plastic venting and anti-condensation device
¬ It can be installed on the wall, ceiling or ground thanks to the galvanised steel
bracket which is powder coated in polyester with trivalent passivation and
equipped with an adjustable goniometric scale and supplied in kit form
Scan the QR-code for the
latest information
Identifying and classifying our optics
L Graphite grey / Graphite grey /
533
