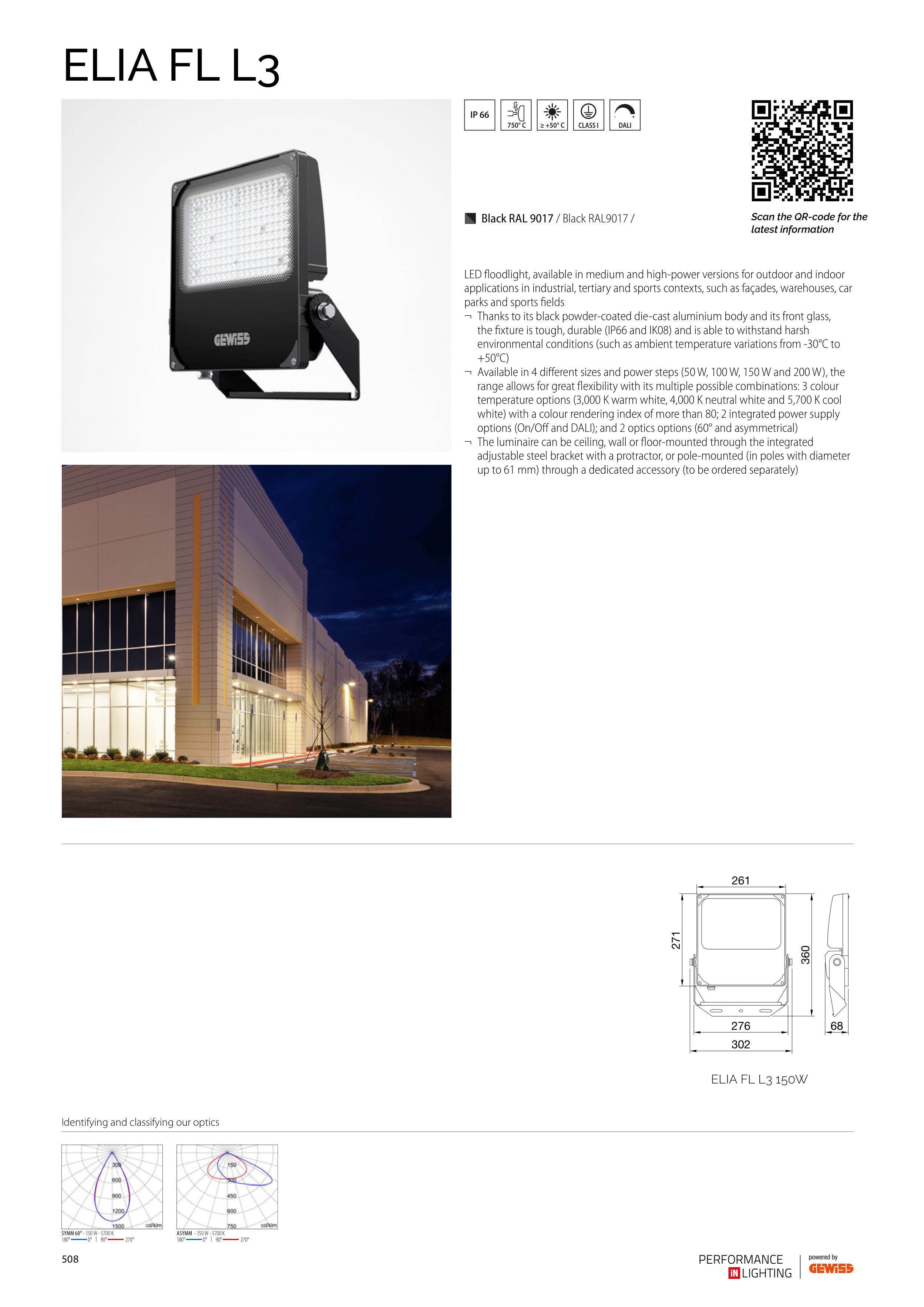

ELIA FL L3
750° C ≥ +50° C
68
261
302
276
271
360
ELIA FL L3 150W
3100132
SYMM 60° - 150 W - 5700 K
3100132
ASYMM - 150 W - 5700 K
LED floodlight, available in medium and high-power versions for outdoor and indoor
applications in industrial, tertiary and sports contexts, such as façades, warehouses, car
parks and sports fields
¬ Thanks to its black powder-coated die-cast aluminium body and its front glass,
the fixture is tough, durable (IP66 and IK08) and is able to withstand harsh
environmental conditions (such as ambient temperature variations from -30°C to
+50°C)
¬ Available in 4 different sizes and power steps (50 W, 100 W, 150 W and 200 W), the
range allows for great flexibility with its multiple possible combinations: 3 colour
temperature options (3,000 K warm white, 4,000 K neutral white and 5,700 K cool
white) with a colour rendering index of more than 80; 2 integrated power supply
options (On/Off and DALI); and 2 optics options (60° and asymmetrical)
¬ The luminaire can be ceiling, wall or floor-mounted through the integrated
adjustable steel bracket with a protractor, or pole-mounted (in poles with diameter
up to 61 mm) through a dedicated accessory (to be ordered separately)
Scan the QR-code for the
latest information
Identifying and classifying our optics
P Black RAL 9017 / Black RAL9017 /
508
