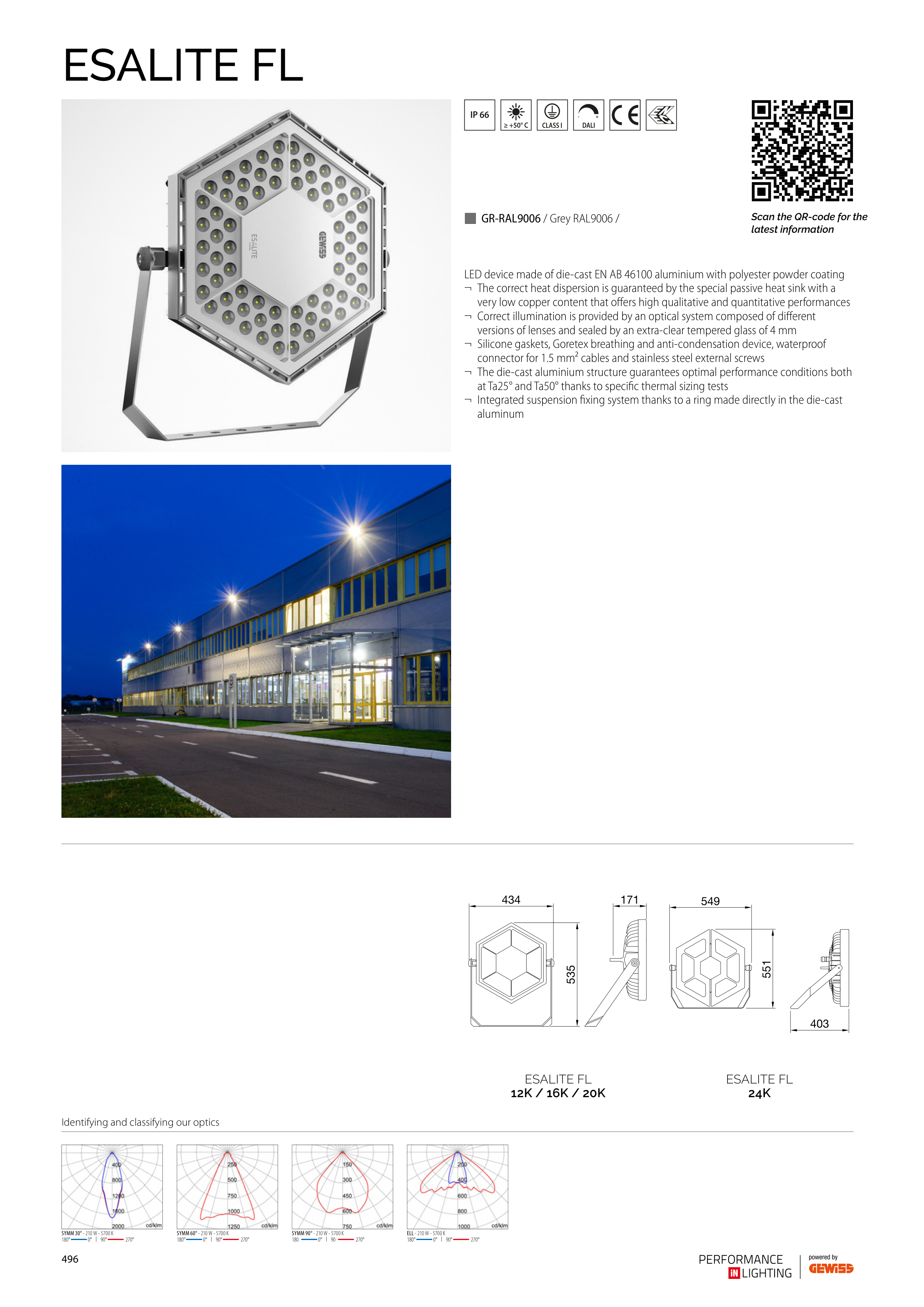

ESALITE FL
≥ +50° C
3100132
SYMM 60° - 210 W - 5700 K
3100132
SYMM 30° - 210 W - 5700 K
SYMM 90° - 210 W - 5700 K
ELL - 210 W - 5700 K
ESALITE FL
24K
ESALITE FL
12K / 16K / 20K
403
551
549
171
434
535
LED device made of die-cast EN AB 46100 aluminium with polyester powder coating
¬ The correct heat dispersion is guaranteed by the special passive heat sink with a
very low copper content that offers high qualitative and quantitative performances
¬ Correct illumination is provided by an optical system composed of different
versions of lenses and sealed by an extra-clear tempered glass of 4 mm
¬ Silicone gaskets, Goretex breathing and anti-condensation device, waterproof
connector for 1.5 mm² cables and stainless steel external screws
¬ The die-cast aluminium structure guarantees optimal performance conditions both
at Ta25° and Ta50° thanks to specific thermal sizing tests
¬ Integrated suspension fixing system thanks to a ring made directly in the die-cast
aluminum
Scan the QR-code for the
latest information
Identifying and classifying our optics
C GR-RAL9006 / Grey RAL9006 /
496
