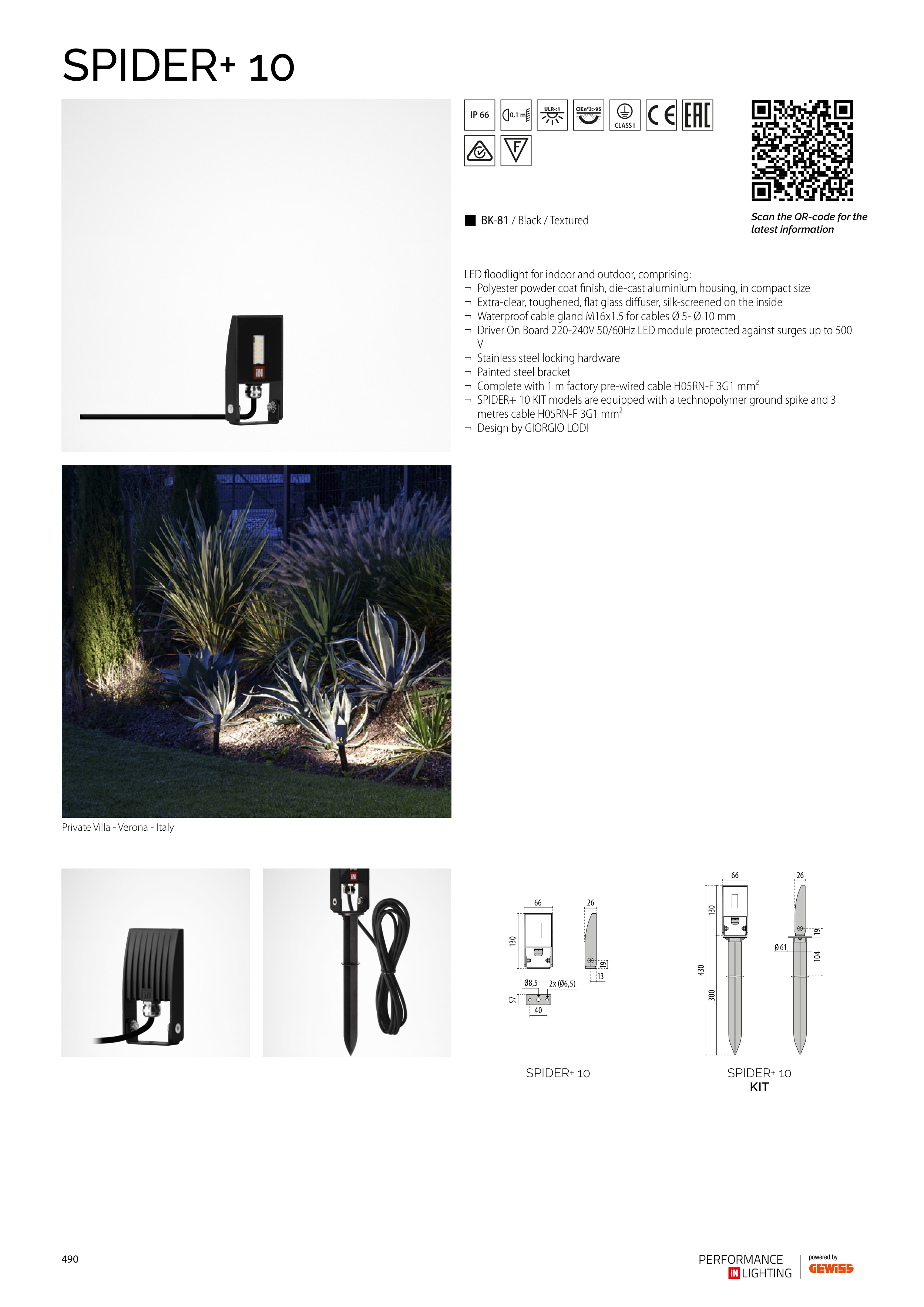

SPIDER+ 10
0,1 m
66
130
300
430
Ø 61
26
19
104
57
40
13
26
19
66
130
Ø8,5
2x (Ø6,5)
SPIDER+ 10
KIT
SPIDER+ 10
Private Villa - Verona - Italy
LED floodlight for indoor and outdoor, comprising:
¬ Polyester powder coat finish, die-cast aluminium housing, in compact size
¬ Extra-clear, toughened, flat glass diffuser, silk-screened on the inside
¬ Waterproof cable gland M16x1.5 for cables Ø 5- Ø 10 mm
¬ Driver On Board 220-240V 50/60Hz LED module protected against surges up to 500
V
¬ Stainless steel locking hardware
¬ Painted steel bracket
¬ Complete with 1 m factory pre-wired cable H05RN-F 3G1 mm²
¬ SPIDER+ 10 KIT models are equipped with a technopolymer ground spike and 3
metres cable H05RN-F 3G1 mm²
¬ Design by GIORGIO LODI
o BK-81 / Black / Textured
Scan the QR-code for the
latest information
490
