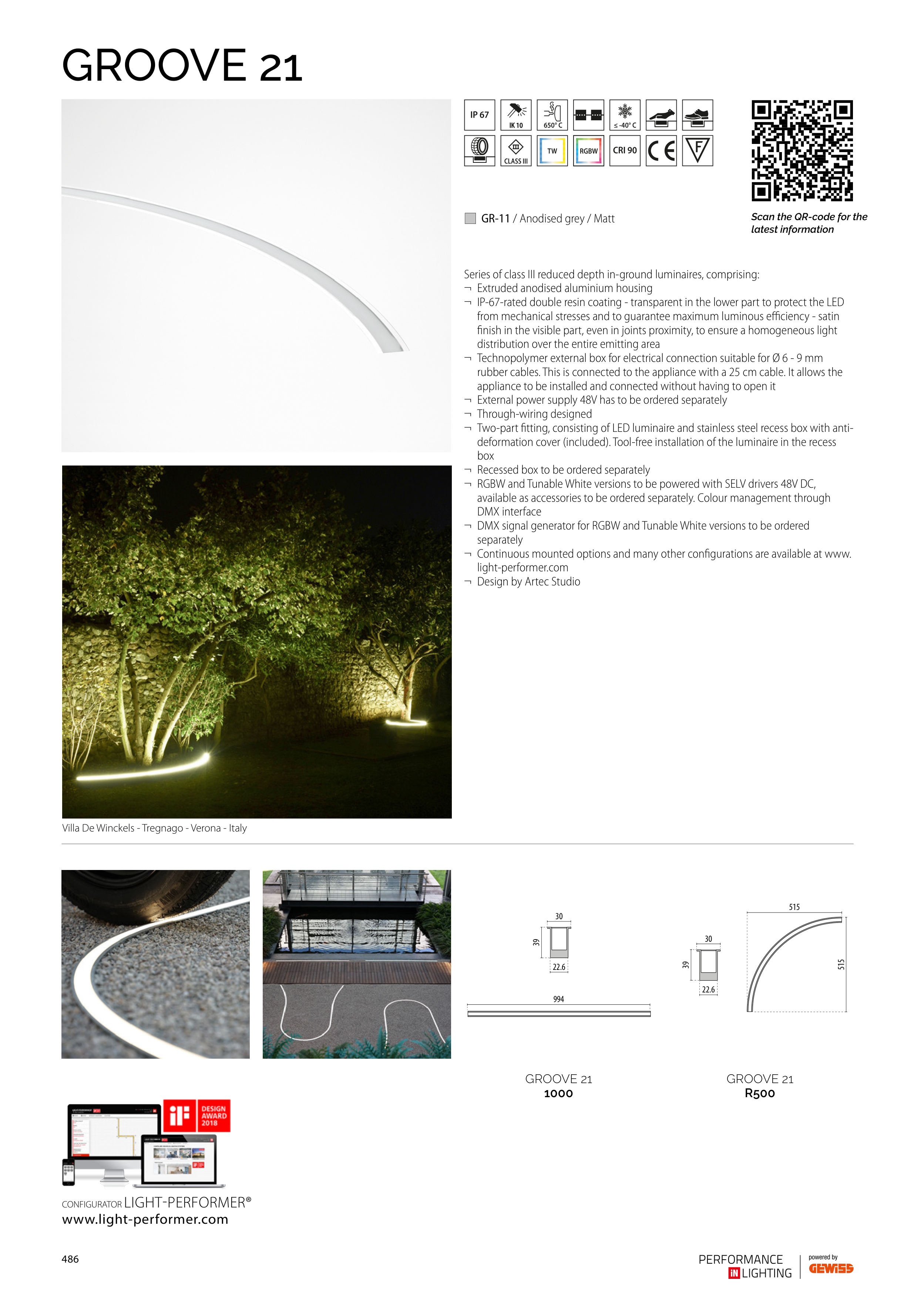

GROOVE 21
650° C
≤ -40° C
994
30
22.6
39
GROOVE 21
1000
515
515
30
22.6
39
GROOVE 21
R500
www.light-performer.com
Villa De Winckels - Tregnago - Verona - Italy
Series of class III reduced depth in-ground luminaires, comprising:
¬ Extruded anodised aluminium housing
¬ IP-67-rated double resin coating - transparent in the lower part to protect the LED
from mechanical stresses and to guarantee maximum luminous efficiency - satin
finish in the visible part, even in joints proximity, to ensure a homogeneous light
distribution over the entire emitting area
¬ Technopolymer external box for electrical connection suitable for Ø 6 - 9 mm
rubber cables. This is connected to the appliance with a 25 cm cable. It allows the
appliance to be installed and connected without having to open it
¬ External power supply 48V has to be ordered separately
¬ Through-wiring designed
¬ Two-part fitting, consisting of LED luminaire and stainless steel recess box with anti-
deformation cover (included). Tool-free installation of the luminaire in the recess
box
¬ Recessed box to be ordered separately
¬ RGBW and Tunable White versions to be powered with SELV drivers 48V DC,
available as accessories to be ordered separately. Colour management through
DMX interface
¬ DMX signal generator for RGBW and Tunable White versions to be ordered
separately
¬ Continuous mounted options and many other configurations are available at www.
light-performer.com
¬ Design by Artec Studio
F GR-11 / Anodised grey / Matt
Scan the QR-code for the
latest information
CONFIGURATOR LIGHT-PERFORMER®
486
