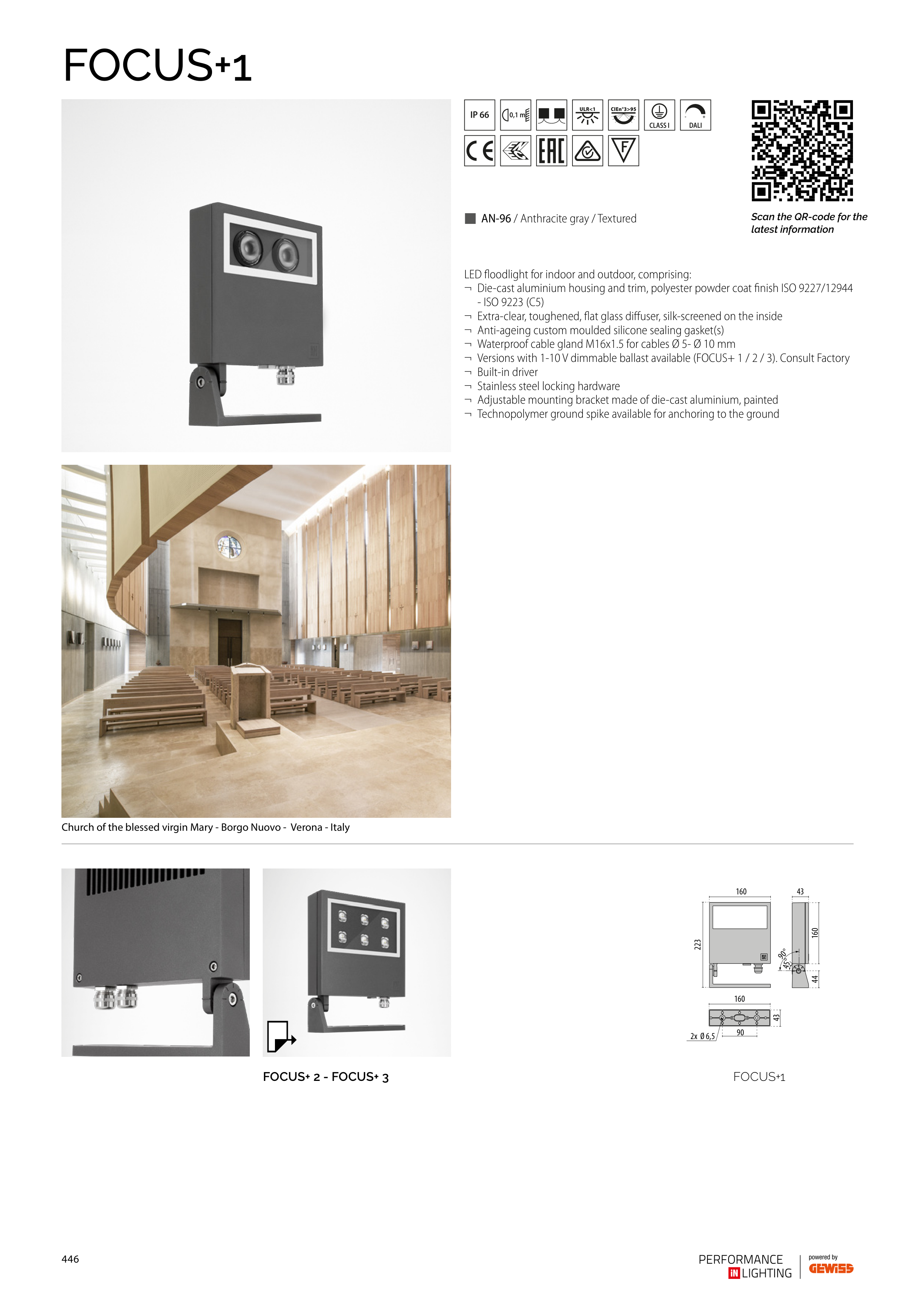

FOCUS+1
0,1 m
160
160
43
160
44
43
223
90
90°
45°
2x Ø 6,5
FOCUS+1
Church of the blessed virgin Mary - Borgo Nuovo - Verona - Italy
FOCUS+ 2 - FOCUS+ 3
LED floodlight for indoor and outdoor, comprising:
¬ Die-cast aluminium housing and trim, polyester powder coat finish ISO 9227/12944
- ISO 9223 (C5)
¬ Extra-clear, toughened, flat glass diffuser, silk-screened on the inside
¬ Anti-ageing custom moulded silicone sealing gasket(s)
¬ Waterproof cable gland M16x1.5 for cables Ø 5- Ø 10 mm
¬ Versions with 1-10 V dimmable ballast available (FOCUS+ 1 / 2 / 3). Consult Factory
¬ Built-in driver
¬ Stainless steel locking hardware
¬ Adjustable mounting bracket made of die-cast aluminium, painted
¬ Technopolymer ground spike available for anchoring to the ground
L AN-96 / Anthracite gray / Textured
Scan the QR-code for the
latest information
446
