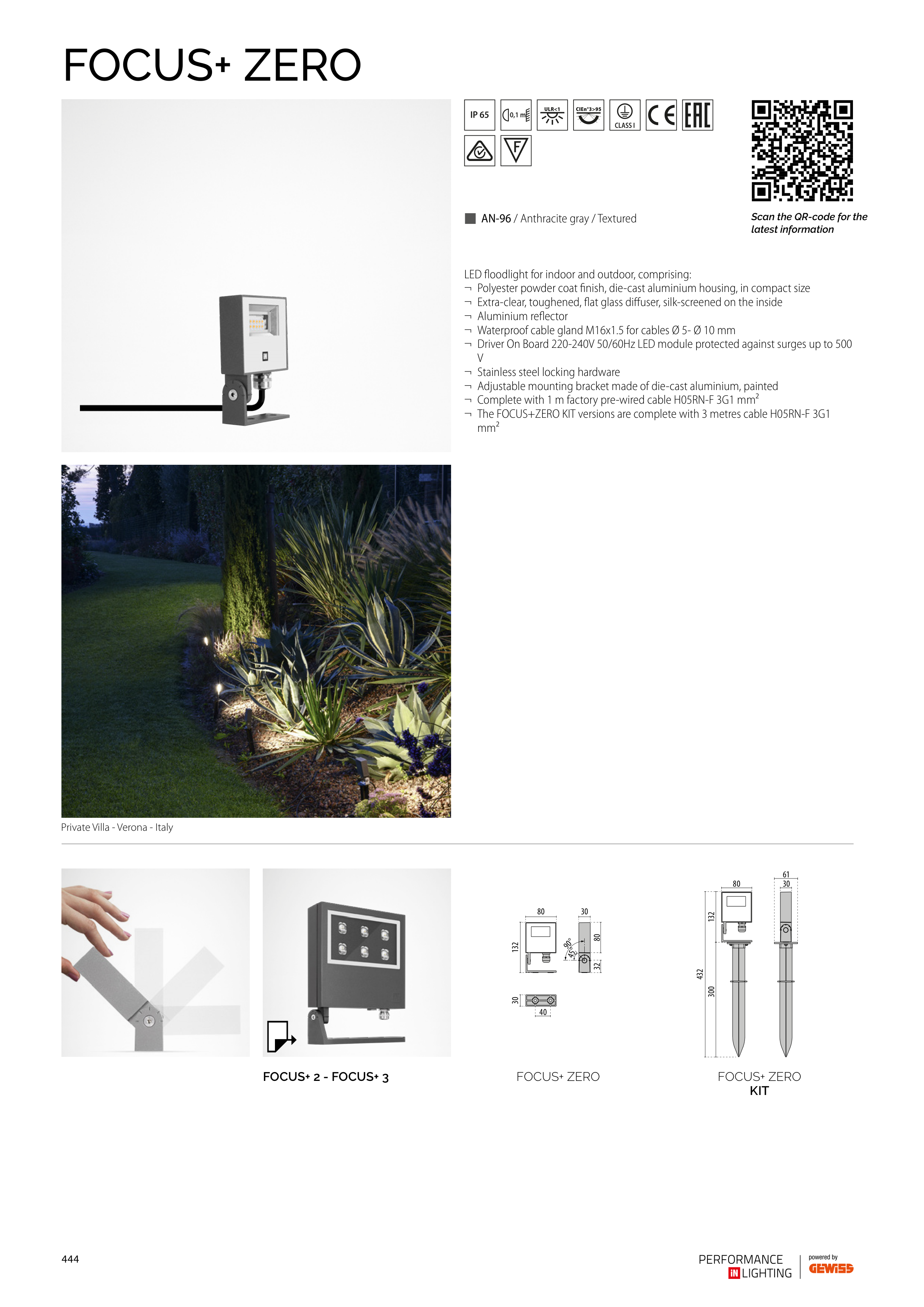

FOCUS+ ZERO
0,1 m
80
432
132
300
30
61
90°
45°
30
132
40
32
80
80
30
FOCUS+ ZERO
KIT
FOCUS+ ZERO
Private Villa - Verona - Italy
FOCUS+ 2 - FOCUS+ 3
LED floodlight for indoor and outdoor, comprising:
¬ Polyester powder coat finish, die-cast aluminium housing, in compact size
¬ Extra-clear, toughened, flat glass diffuser, silk-screened on the inside
¬ Aluminium reflector
¬ Waterproof cable gland M16x1.5 for cables Ø 5- Ø 10 mm
¬ Driver On Board 220-240V 50/60Hz LED module protected against surges up to 500
V
¬ Stainless steel locking hardware
¬ Adjustable mounting bracket made of die-cast aluminium, painted
¬ Complete with 1 m factory pre-wired cable H05RN-F 3G1 mm²
¬ The FOCUS+ZERO KIT versions are complete with 3 metres cable H05RN-F 3G1
mm²
L AN-96 / Anthracite gray / Textured
Scan the QR-code for the
latest information
444
