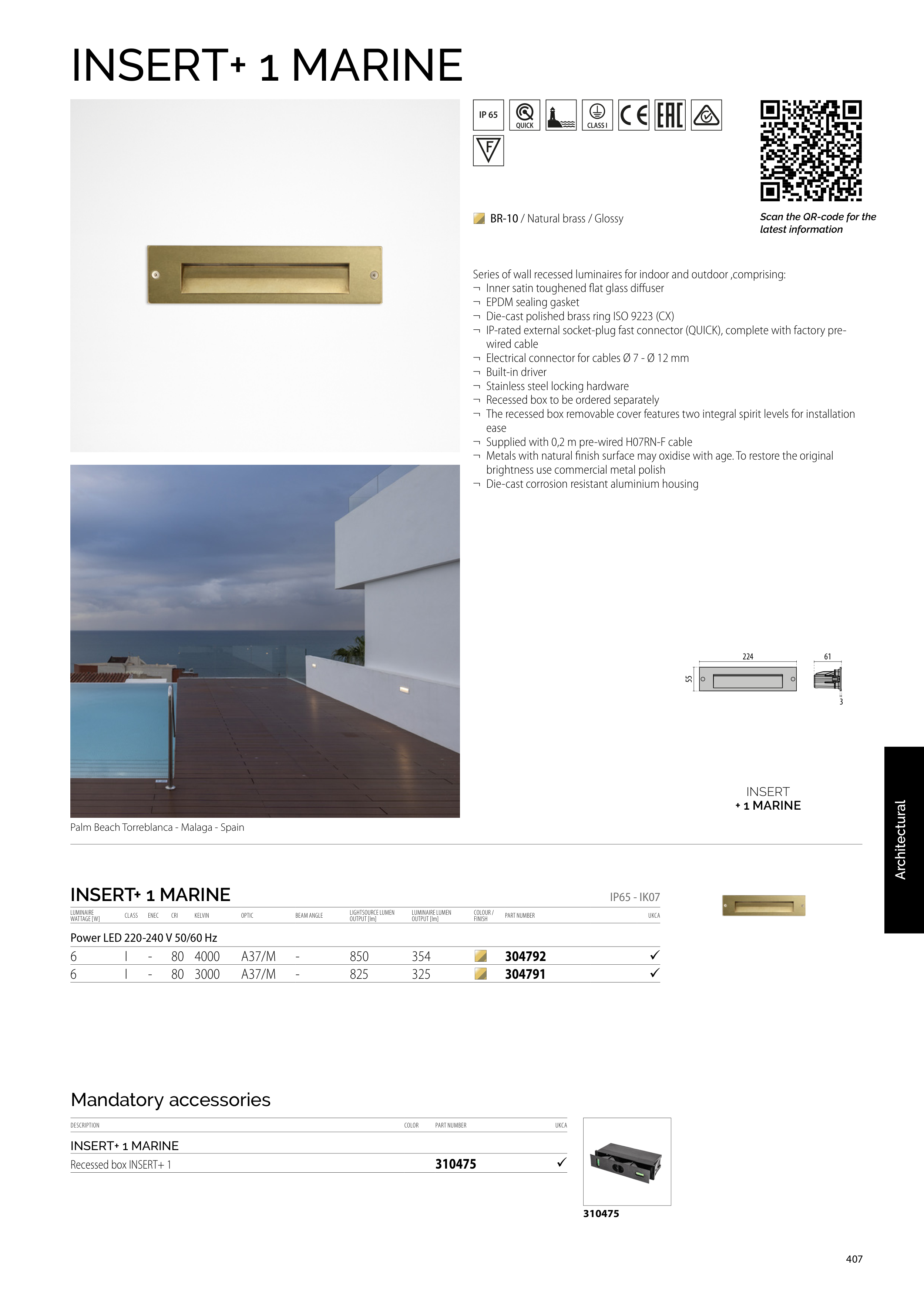

INSERT+ 1 MARINE
61
224
55
3
INSERT
+ 1 MARINE
310475
Palm Beach Torreblanca - Malaga - Spain
Architectural
Series of wall recessed luminaires for indoor and outdoor ,comprising:
¬ Inner satin toughened flat glass diffuser
¬ EPDM sealing gasket
¬ Die-cast polished brass ring ISO 9223 (CX)
¬ IP-rated external socket-plug fast connector (QUICK), complete with factory pre-
wired cable
¬ Electrical connector for cables Ø 7 - Ø 12 mm
¬ Built-in driver
¬ Stainless steel locking hardware
¬ Recessed box to be ordered separately
¬ The recessed box removable cover features two integral spirit levels for installation
ease
¬ Supplied with 0,2 m pre-wired H07RN-F cable
¬ Metals with natural finish surface may oxidise with age. To restore the original
brightness use commercial metal polish
¬ Die-cast corrosion resistant aluminium housing
A BR-10 / Natural brass / Glossy
Scan the QR-code for the
latest information
INSERT+ 1 MARINE
IP65 - IK07
LUMINAIRE
WATTAGE [W]
CLASS
ENEC
CRI
KELVIN
OPTIC
BEAM ANGLE
LIGHTSOURCE LUMEN
OUTPUT [lm]
LUMINAIRE LUMEN
OUTPUT [lm]
COLOUR /
FINISH
PART NUMBER
UKCA
Power LED 220-240 V 50/60 Hz
6
I
-
80 4000
A37/M
-
850
354
A
304792
ü
6
I
-
80 3000
A37/M
-
825
325
A
304791
ü
Mandatory accessories
DESCRIPTION
COLOR
PART NUMBER
UKCA
INSERT+ 1 MARINE
Recessed box INSERT+ 1
310475
ü
407
