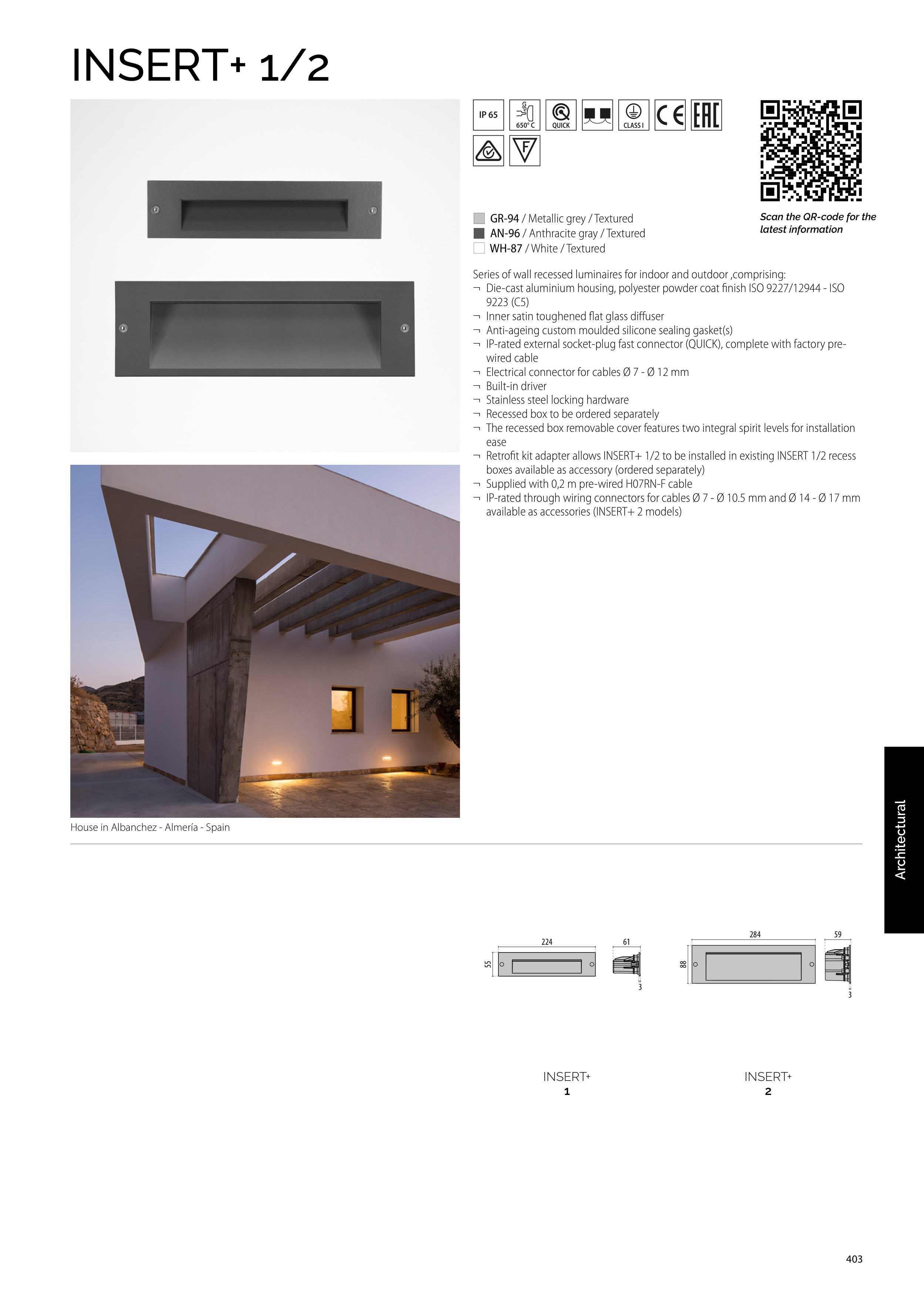

INSERT+ 1/2
650° C
3
284
59
88
61
224
55
3
INSERT+
2
INSERT+
1
House in Albanchez - Almería - Spain
Architectural
Series of wall recessed luminaires for indoor and outdoor ,comprising:
¬ Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO
9223 (C5)
¬ Inner satin toughened flat glass diffuser
¬ Anti-ageing custom moulded silicone sealing gasket(s)
¬ IP-rated external socket-plug fast connector (QUICK), complete with factory pre-
wired cable
¬ Electrical connector for cables Ø 7 - Ø 12 mm
¬ Built-in driver
¬ Stainless steel locking hardware
¬ Recessed box to be ordered separately
¬ The recessed box removable cover features two integral spirit levels for installation
ease
¬ Retrofit kit adapter allows INSERT+ 1/2 to be installed in existing INSERT 1/2 recess
boxes available as accessory (ordered separately)
¬ Supplied with 0,2 m pre-wired H07RN-F cable
¬ IP-rated through wiring connectors for cables Ø 7 - Ø 10.5 mm and Ø 14 - Ø 17 mm
available as accessories (INSERT+ 2 models)
I GR-94 / Metallic grey / Textured
L AN-96 / Anthracite gray / Textured
T WH-87 / White / Textured
Scan the QR-code for the
latest information
