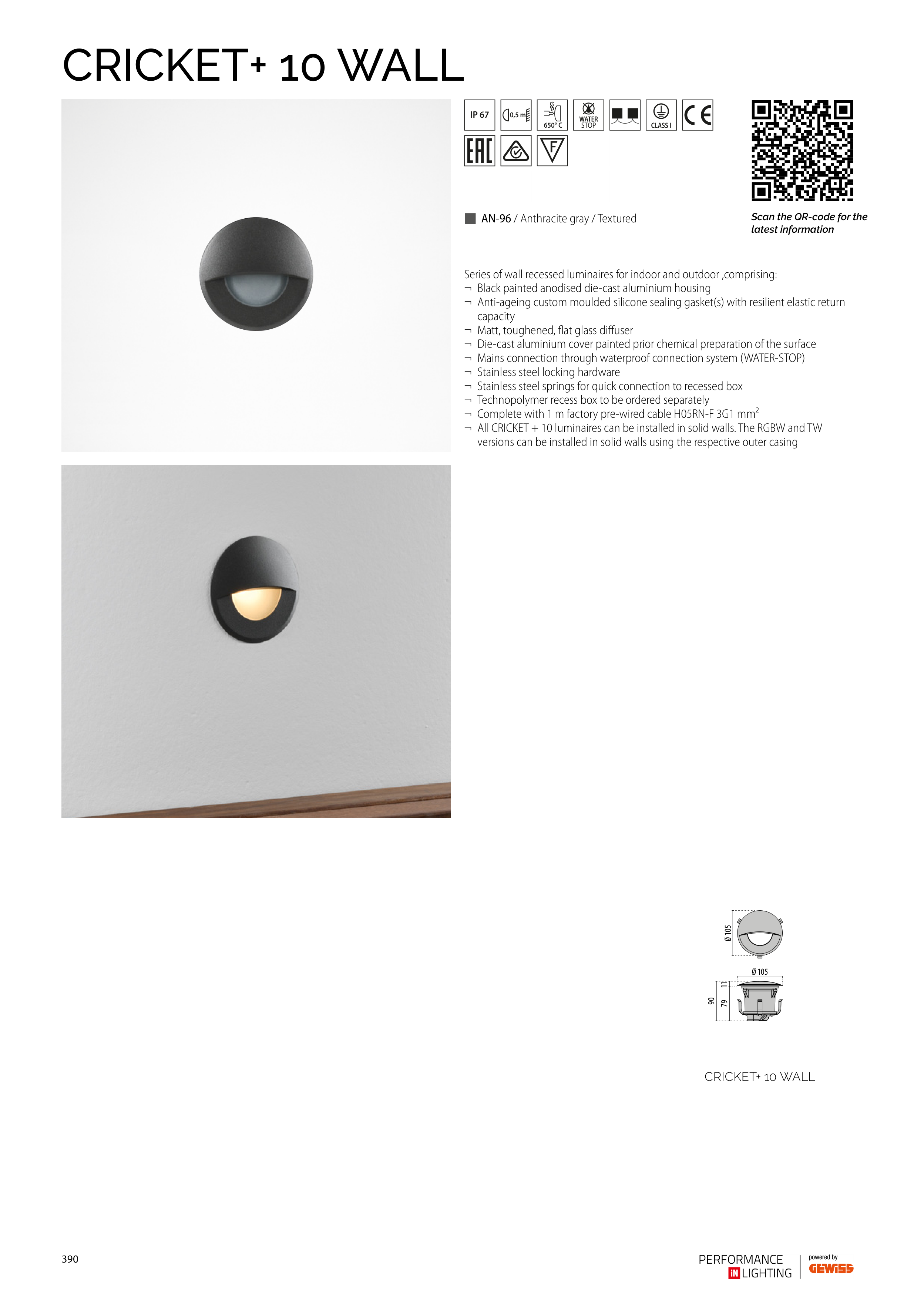

CRICKET+ 10 WALL
0,5 m
650° C
79
11
Ø 105
Ø 105
90
CRICKET+ 10 WALL
Series of wall recessed luminaires for indoor and outdoor ,comprising:
¬ Black painted anodised die-cast aluminium housing
¬ Anti-ageing custom moulded silicone sealing gasket(s) with resilient elastic return
capacity
¬ Matt, toughened, flat glass diffuser
¬ Die-cast aluminium cover painted prior chemical preparation of the surface
¬ Mains connection through waterproof connection system (WATER-STOP)
¬ Stainless steel locking hardware
¬ Stainless steel springs for quick connection to recessed box
¬ Technopolymer recess box to be ordered separately
¬ Complete with 1 m factory pre-wired cable H05RN-F 3G1 mm²
¬ All CRICKET + 10 luminaires can be installed in solid walls. The RGBW and TW
versions can be installed in solid walls using the respective outer casing
L AN-96 / Anthracite gray / Textured
Scan the QR-code for the
latest information
390
