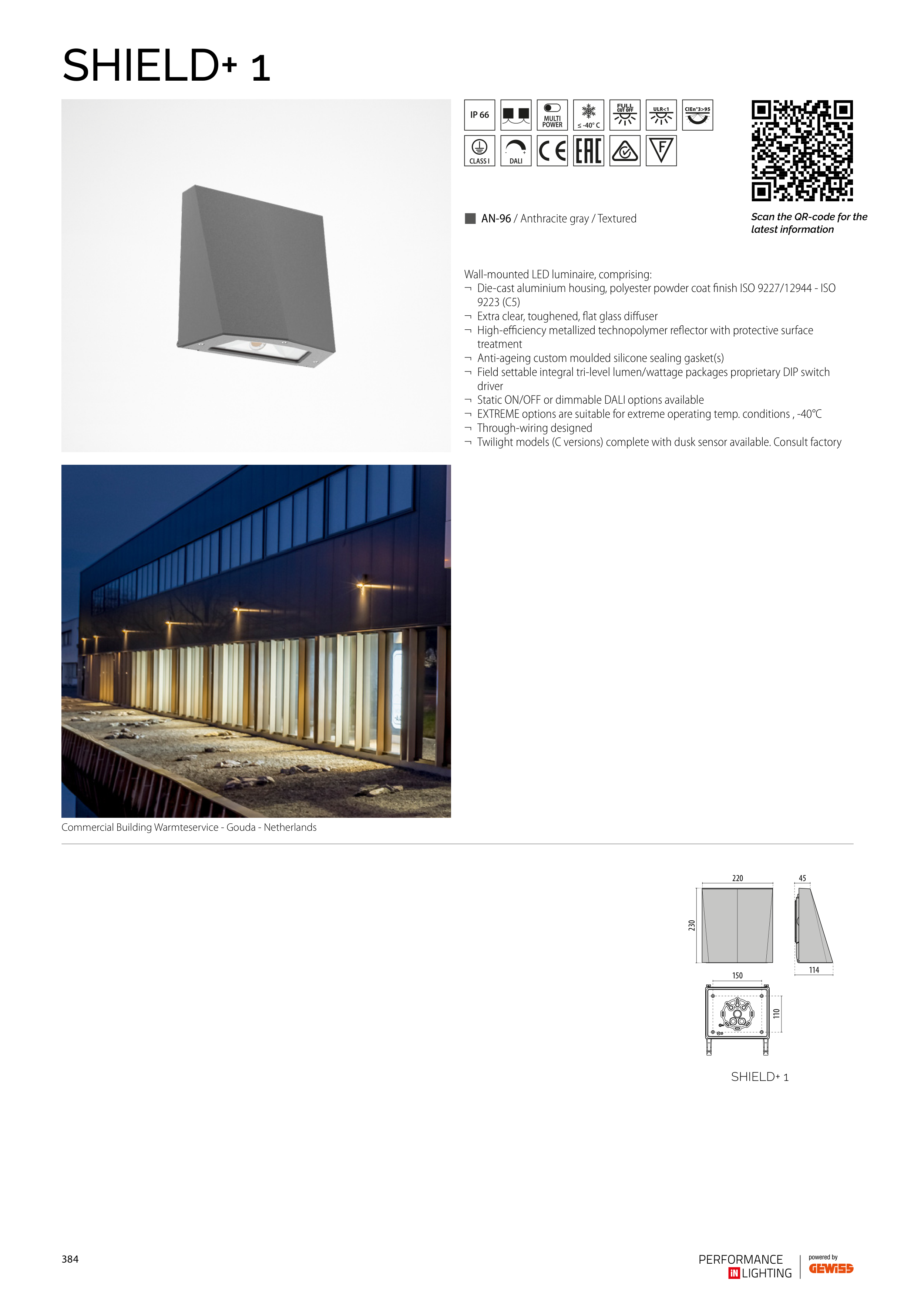

SHIELD+ 1
≤ -40° C
220
114
45
230
150
110
SHIELD+ 1
Commercial Building Warmteservice - Gouda - Netherlands
Wall-mounted LED luminaire, comprising:
¬ Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO
9223 (C5)
¬ Extra clear, toughened, flat glass diffuser
¬ High-efficiency metallized technopolymer reflector with protective surface
treatment
¬ Anti-ageing custom moulded silicone sealing gasket(s)
¬ Field settable integral tri-level lumen/wattage packages proprietary DIP switch
driver
¬ Static ON/OFF or dimmable DALI options available
¬ EXTREME options are suitable for extreme operating temp. conditions , -40°C
¬ Through-wiring designed
¬ Twilight models (C versions) complete with dusk sensor available. Consult factory
L AN-96 / Anthracite gray / Textured
Scan the QR-code for the
latest information
384
