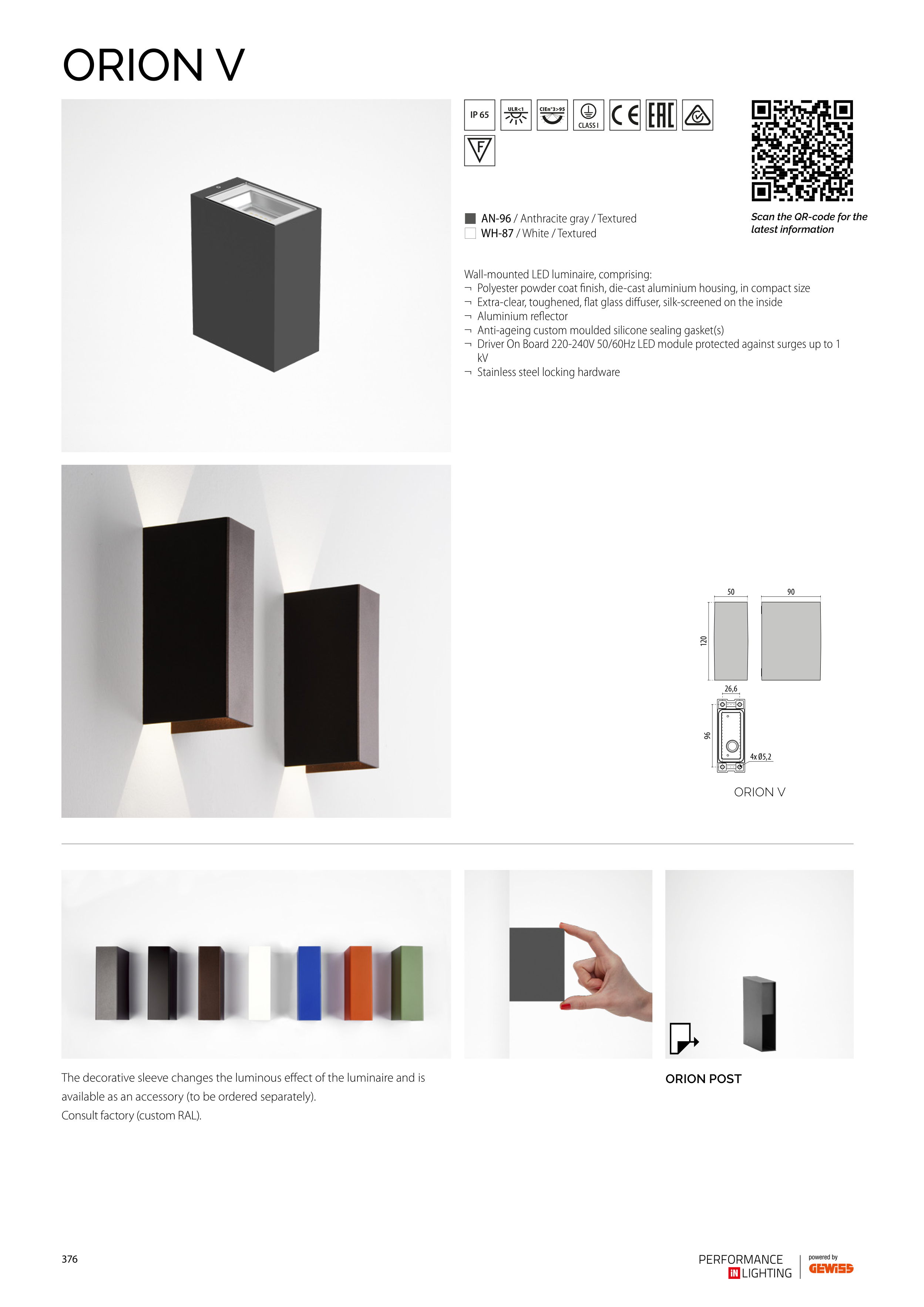

ORION V
4x Ø5,2
50
90
120
26,6
96
ORION V
ORION POST
Wall-mounted LED luminaire, comprising:
¬ Polyester powder coat finish, die-cast aluminium housing, in compact size
¬ Extra-clear, toughened, flat glass diffuser, silk-screened on the inside
¬ Aluminium reflector
¬ Anti-ageing custom moulded silicone sealing gasket(s)
¬ Driver On Board 220-240V 50/60Hz LED module protected against surges up to 1
kV
¬ Stainless steel locking hardware
L AN-96 / Anthracite gray / Textured
T WH-87 / White / Textured
Scan the QR-code for the
latest information
Consult factory (custom RAL).
The decorative sleeve changes the luminous effect of the luminaire and is
available as an accessory (to be ordered separately).
376
