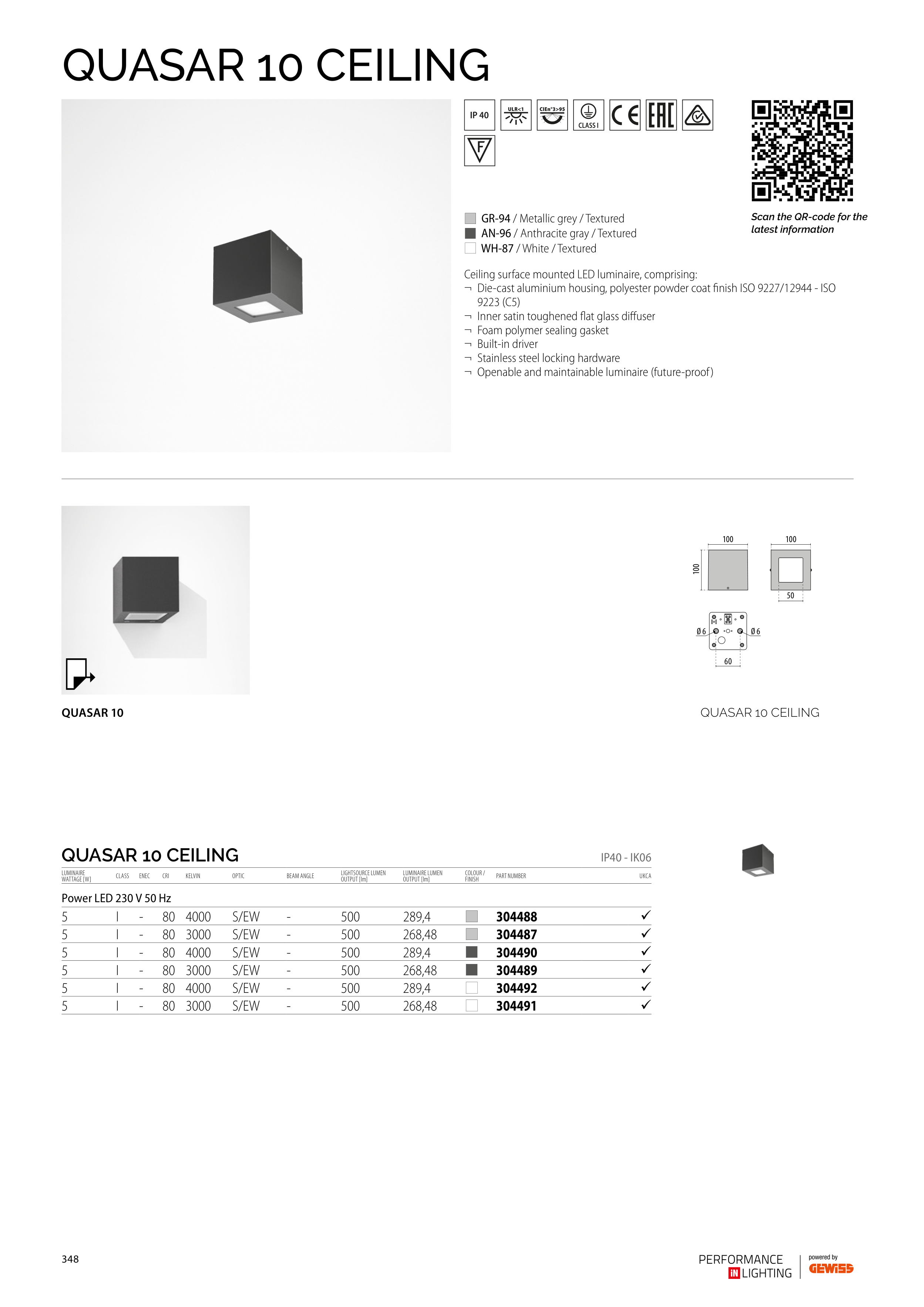

QUASAR 10 CEILING
100
100
50
60
Ø 6
Ø 6
100
QUASAR 10 CEILING
QUASAR 10
Ceiling surface mounted LED luminaire, comprising:
¬ Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO
9223 (C5)
¬ Inner satin toughened flat glass diffuser
¬ Foam polymer sealing gasket
¬ Built-in driver
¬ Stainless steel locking hardware
¬ Openable and maintainable luminaire (future-proof)
I GR-94 / Metallic grey / Textured
L AN-96 / Anthracite gray / Textured
T WH-87 / White / Textured
Scan the QR-code for the
latest information
QUASAR 10 CEILING
IP40 - IK06
LUMINAIRE
WATTAGE [W]
CLASS
ENEC
CRI
KELVIN
OPTIC
BEAM ANGLE
LIGHTSOURCE LUMEN
OUTPUT [lm]
LUMINAIRE LUMEN
OUTPUT [lm]
COLOUR /
FINISH
PART NUMBER
UKCA
Power LED 230 V 50 Hz
5
I
-
80 4000
S/EW
-
500
289,4
I
304488
ü
5
I
-
80 3000
S/EW
-
500
268,48
I
304487
ü
5
I
-
80 4000
S/EW
-
500
289,4
L
304490
ü
5
I
-
80 3000
S/EW
-
500
268,48
L
304489
ü
5
I
-
80 4000
S/EW
-
500
289,4
T
304492
ü
5
I
-
80 3000
S/EW
-
500
268,48
T
304491
ü
348
