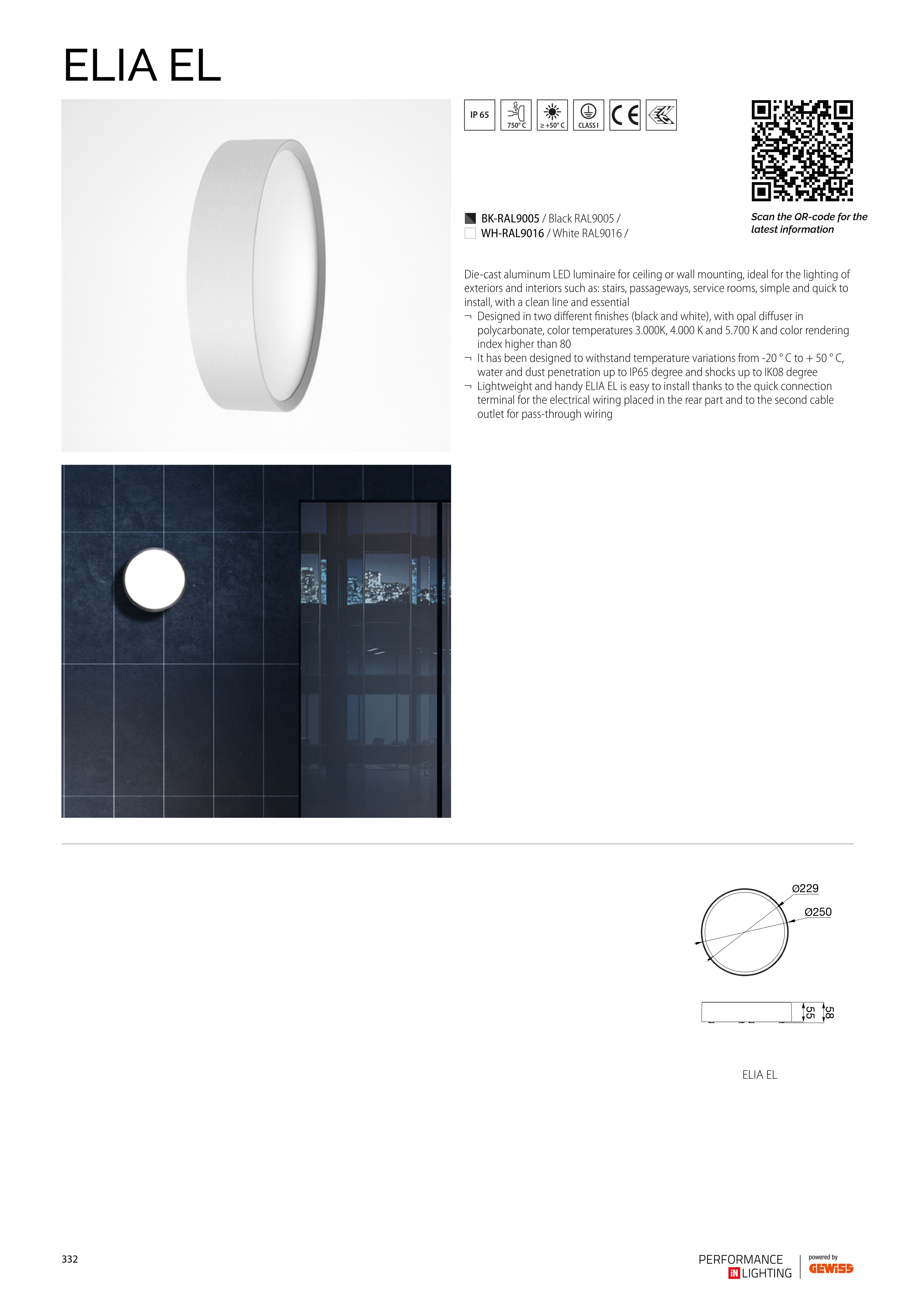

ELIA EL
750° C ≥ +50° C
Ø229
Ø250
55
58
ELIA EL
Die-cast aluminum LED luminaire for ceiling or wall mounting, ideal for the lighting of
exteriors and interiors such as: stairs, passageways, service rooms, simple and quick to
install, with a clean line and essential
¬ Designed in two different finishes (black and white), with opal diffuser in
polycarbonate, color temperatures 3.000K, 4.000 K and 5.700 K and color rendering
index higher than 80
¬ It has been designed to withstand temperature variations from -20 ° C to + 50 ° C,
water and dust penetration up to IP65 degree and shocks up to IK08 degree
¬ Lightweight and handy ELIA EL is easy to install thanks to the quick connection
terminal for the electrical wiring placed in the rear part and to the second cable
outlet for pass-through wiring
Scan the QR-code for the
latest information
P BK-RAL9005 / Black RAL9005 /
T WH-RAL9016 / White RAL9016 /
332
