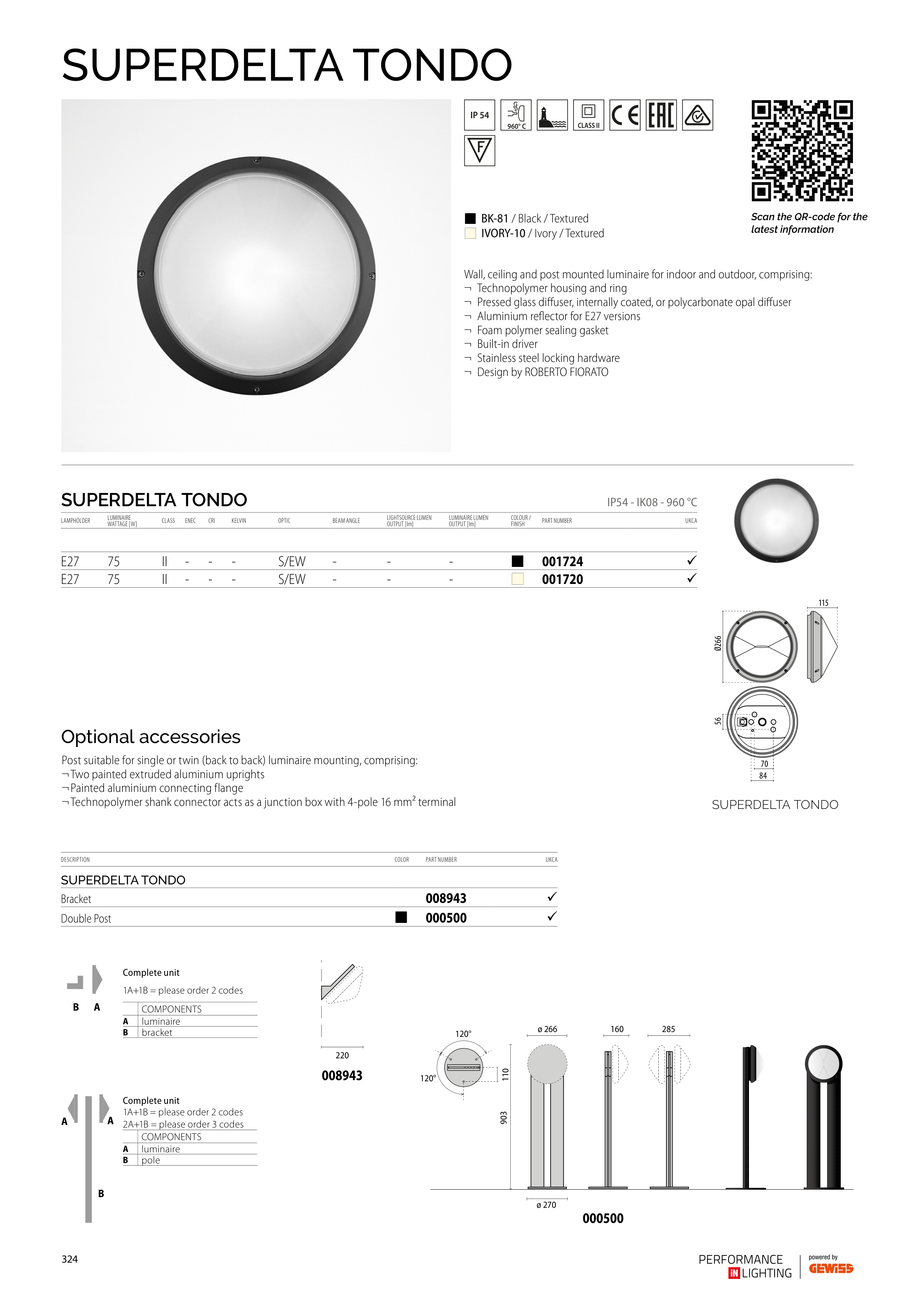

SUPERDELTA TONDO
960° C
70
115
Ø266
56
84
SUPERDELTA TONDO
160
285
903
ø 266
ø 270
120°
120°
110
160
285
903
ø 266
ø 270
120°
120°
110
220
250
250
008943
000500
Wall, ceiling and post mounted luminaire for indoor and outdoor, comprising:
¬ Technopolymer housing and ring
¬ Pressed glass diffuser, internally coated, or polycarbonate opal diffuser
¬ Aluminium reflector for E27 versions
¬ Foam polymer sealing gasket
¬ Built-in driver
¬ Stainless steel locking hardware
¬ Design by ROBERTO FIORATO
o BK-81 / Black / Textured
R IVORY-10 / Ivory / Textured
Scan the QR-code for the
latest information
SUPERDELTA TONDO
IP54 - IK08 - 960 °C
LAMPHOLDER
LUMINAIRE
WATTAGE [W]
CLASS
ENEC
CRI
KELVIN
OPTIC
BEAM ANGLE
LIGHTSOURCE LUMEN
OUTPUT [lm]
LUMINAIRE LUMEN
OUTPUT [lm]
COLOUR /
FINISH
PART NUMBER
UKCA
E27
75
II
-
-
-
S/EW
-
-
-
o
001724
ü
E27
75
II
-
-
-
S/EW
-
-
-
R
001720
ü
Optional accessories
DESCRIPTION
COLOR
PART NUMBER
UKCA
SUPERDELTA TONDO
Bracket
008943
ü
Double Post
o
000500
ü
Post suitable for single or twin (back to back) luminaire mounting, comprising:
¬ Two painted extruded aluminium uprights
¬ Painted aluminium connecting flange
¬ Technopolymer shank connector acts as a junction box with 4-pole 16 mm² terminal
Complete unit
1A+1B = please order 2 codes
2A+1B = please order 3 codes
COMPONENTS
A
luminaire
B
pole
Complete unit
1A+1B = please order 2 codes
COMPONENTS
A
luminaire
B
bracket
324
