229
290
198
260
232
232
228
370
321
556
463
1180
1115
228
370
321
556
463
1180
1115
229
290
198
260
232
232
000792
000790
000502
000503
000810 Ø 60
000800 Ø 42
000802 Ø 60
90°
90°
Residential

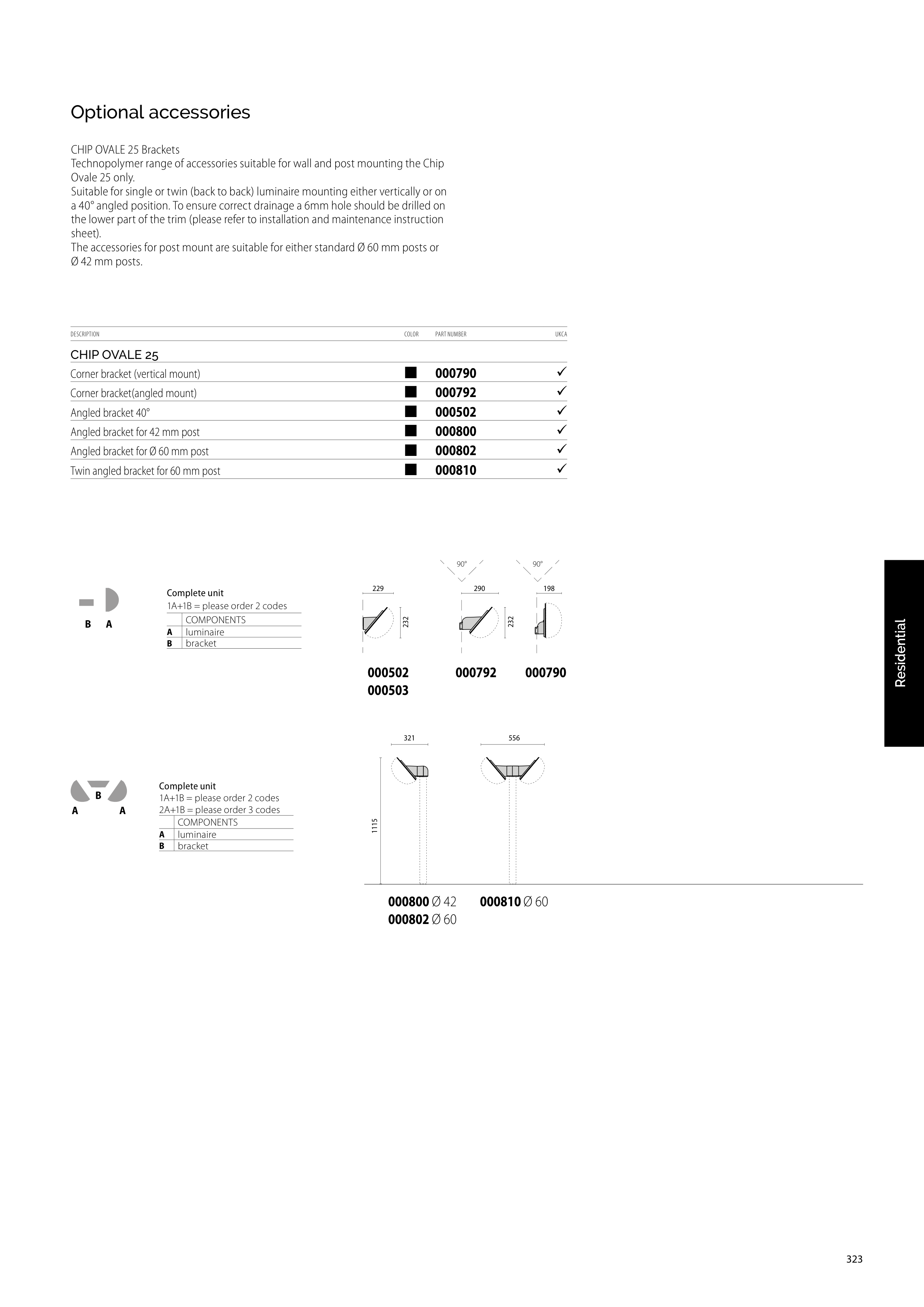

Optional accessories
DESCRIPTION
COLOR
PART NUMBER
UKCA
CHIP OVALE 25
Corner bracket (vertical mount)
o
000790
ü
Corner bracket(angled mount)
o
000792
ü
Angled bracket 40°
o
000502
ü
Angled bracket for 42 mm post
o
000800
ü
Angled bracket for Ø 60 mm post
o
000802
ü
Twin angled bracket for 60 mm post
o
000810
ü
CHIP OVALE 25 Brackets
Technopolymer range of accessories suitable for wall and post mounting the Chip
Ovale 25 only.
Suitable for single or twin (back to back) luminaire mounting either vertically or on
a 40° angled position. To ensure correct drainage a 6mm hole should be drilled on
the lower part of the trim (please refer to installation and maintenance instruction
sheet).
The accessories for post mount are suitable for either standard Ø 60 mm posts or
Ø 42 mm posts.
Complete unit
1A+1B = please order 2 codes
2A+1B = please order 3 codes
COMPONENTS
A
luminaire
B
bracket
Complete unit
1A+1B = please order 2 codes
COMPONENTS
A
luminaire
B
bracket
323
A
B
A
A
B
