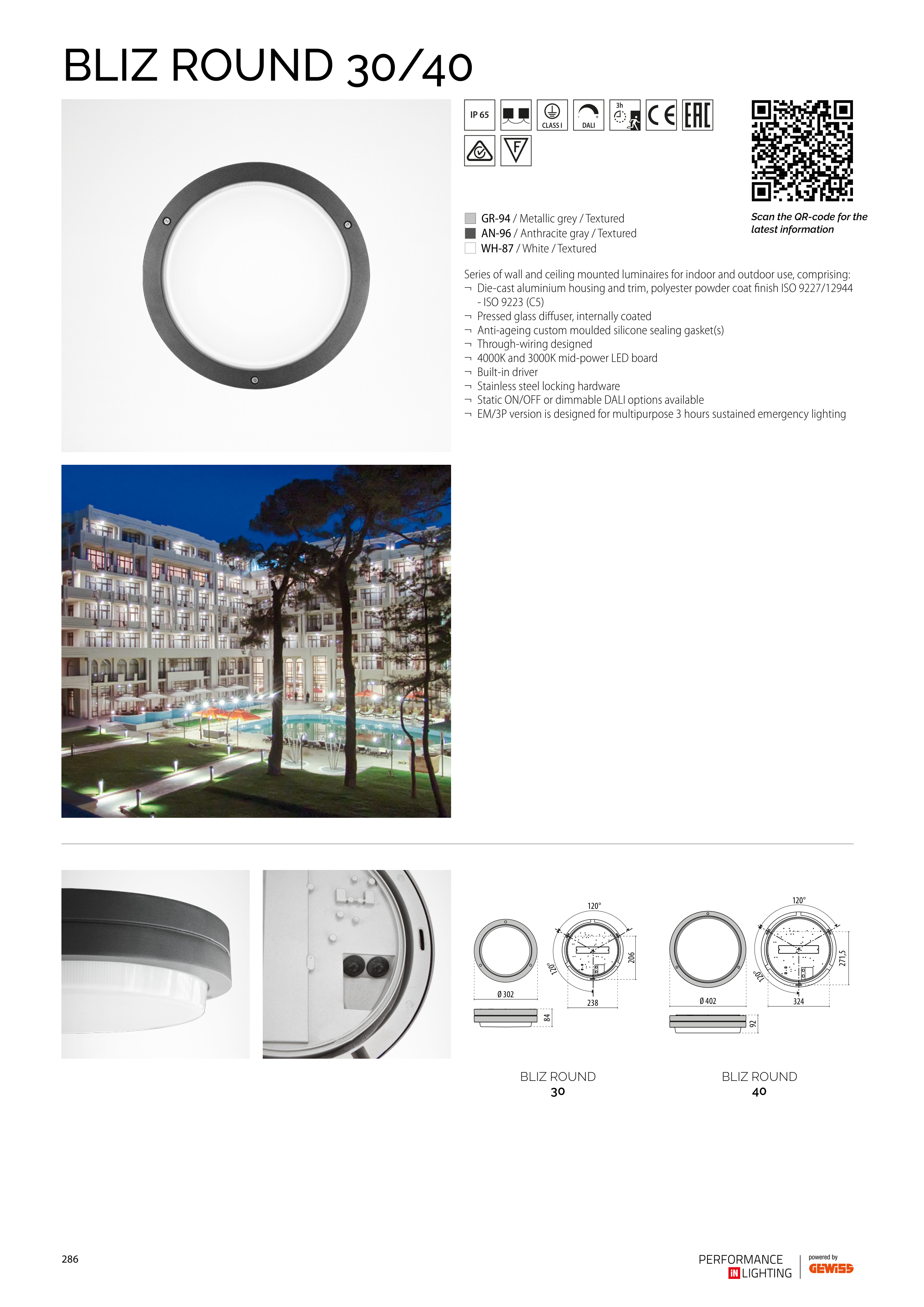

BLIZ ROUND 30/40
Ø 402
92
271,5
324
120°
120°
206
238
Ø 302
84
120°
120°
BLIZ ROUND
40
BLIZ ROUND
30
Series of wall and ceiling mounted luminaires for indoor and outdoor use, comprising:
¬ Die-cast aluminium housing and trim, polyester powder coat finish ISO 9227/12944
- ISO 9223 (C5)
¬ Pressed glass diffuser, internally coated
¬ Anti-ageing custom moulded silicone sealing gasket(s)
¬ Through-wiring designed
¬ 4000K and 3000K mid-power LED board
¬ Built-in driver
¬ Stainless steel locking hardware
¬ Static ON/OFF or dimmable DALI options available
¬ EM/3P version is designed for multipurpose 3 hours sustained emergency lighting
I GR-94 / Metallic grey / Textured
L AN-96 / Anthracite gray / Textured
T WH-87 / White / Textured
Scan the QR-code for the
latest information
286
