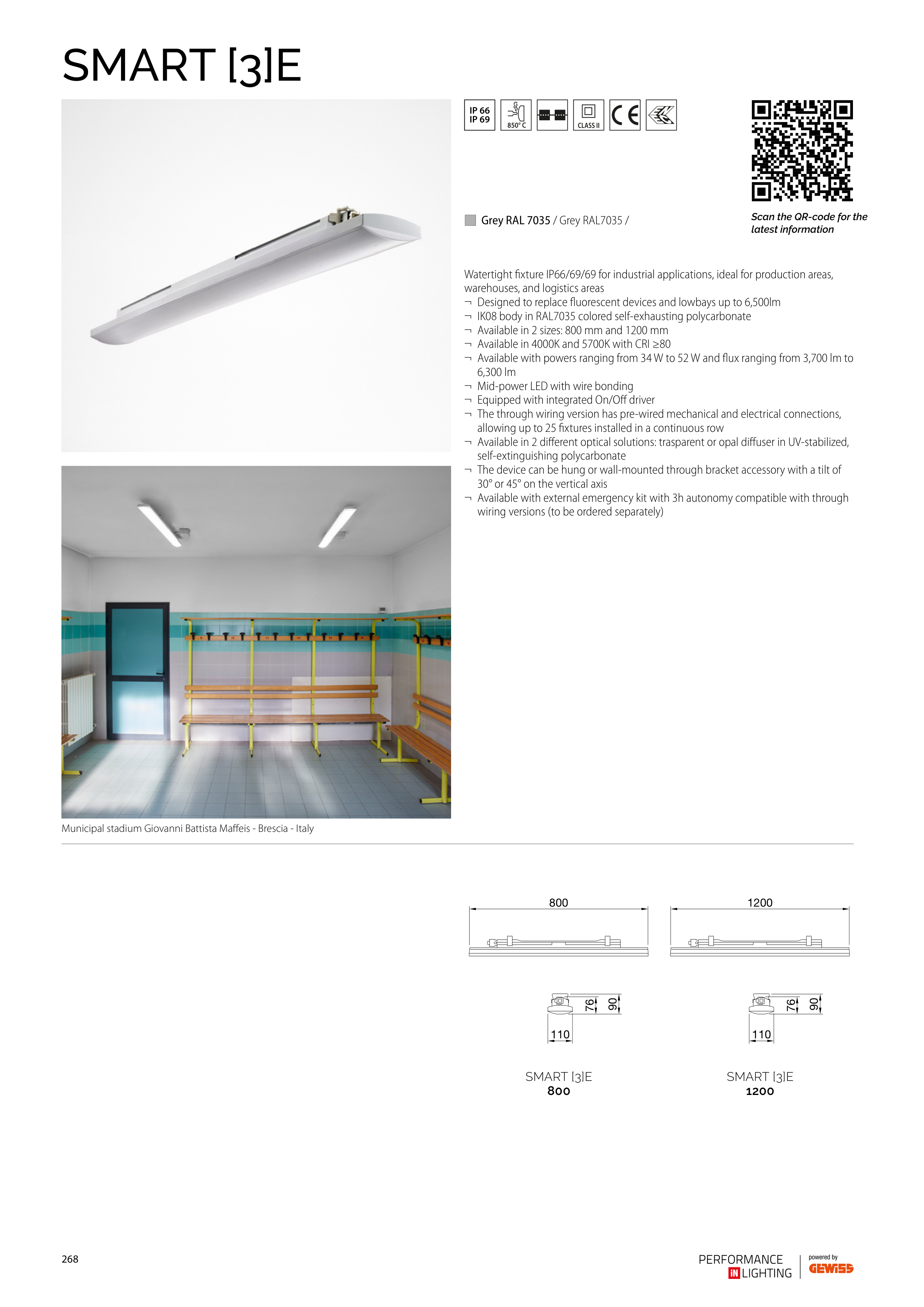

SMART [3]E
IP 66
IP 69
850° C
110
90
76
1200
110
90
76
800
SMART [3]E
1200
SMART [3]E
800
Municipal stadium Giovanni Battista Maffeis - Brescia - Italy
Watertight fixture IP66/69/69 for industrial applications, ideal for production areas,
warehouses, and logistics areas
¬ Designed to replace fluorescent devices and lowbays up to 6,500lm
¬ IK08 body in RAL7035 colored self-exhausting polycarbonate
¬ Available in 2 sizes: 800 mm and 1200 mm
¬ Available in 4000K and 5700K with CRI ≥80
¬ Available with powers ranging from 34 W to 52 W and flux ranging from 3,700 lm to
6,300 lm
¬ Mid-power LED with wire bonding
¬ Equipped with integrated On/Off driver
¬ The through wiring version has pre-wired mechanical and electrical connections,
allowing up to 25 fixtures installed in a continuous row
¬ Available in 2 different optical solutions: trasparent or opal diffuser in UV-stabilized,
self-extinguishing polycarbonate
¬ The device can be hung or wall-mounted through bracket accessory with a tilt of
30° or 45° on the vertical axis
¬ Available with external emergency kit with 3h autonomy compatible with through
wiring versions (to be ordered separately)
J Grey RAL 7035 / Grey RAL7035 /
Scan the QR-code for the
latest information
268
