LM4
0,5 m
≤ -40° C
620
185
285
70
32,5
77
630

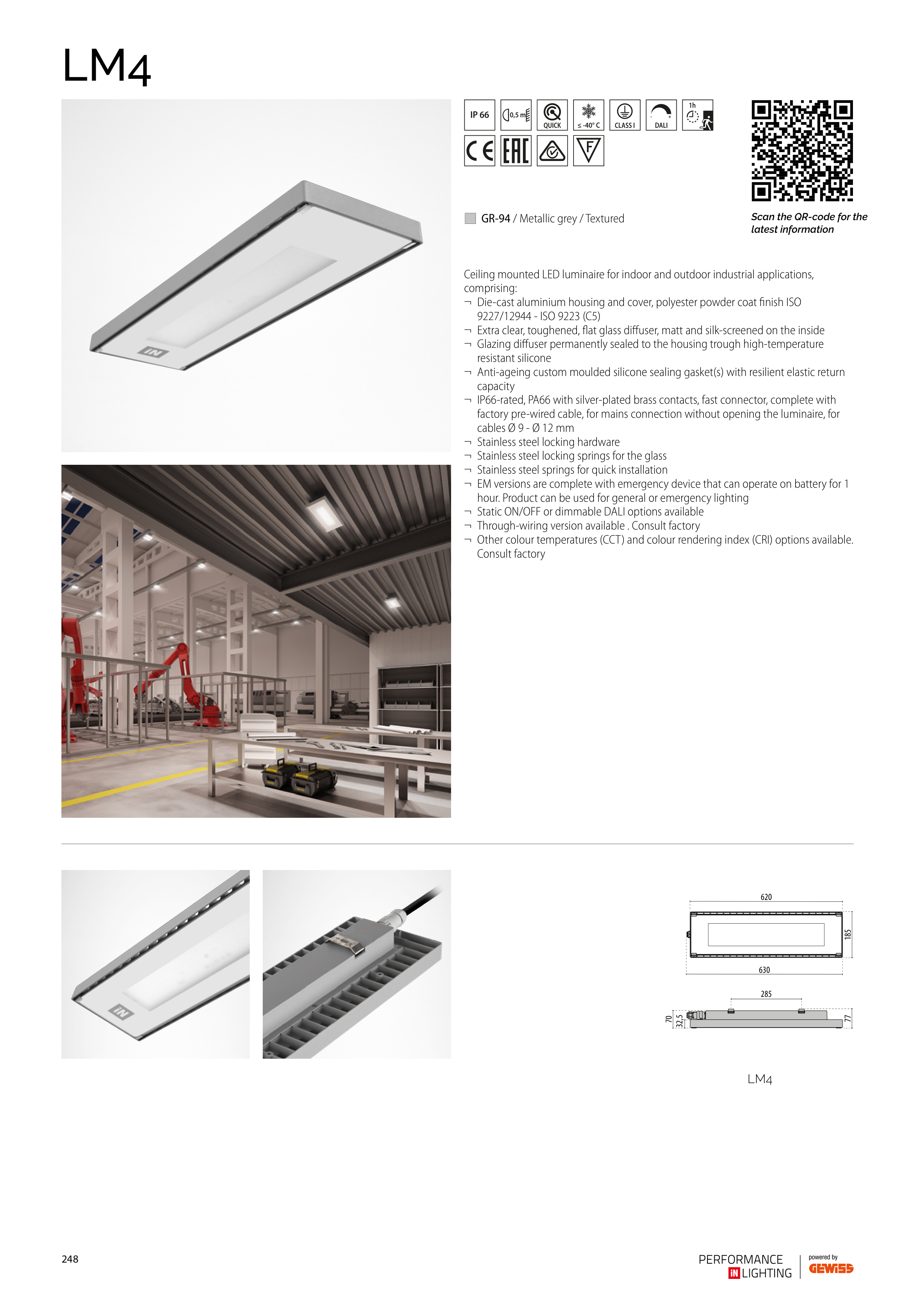

LM4
Ceiling mounted LED luminaire for indoor and outdoor industrial applications,
comprising:
¬ Die-cast aluminium housing and cover, polyester powder coat finish ISO
9227/12944 - ISO 9223 (C5)
¬ Extra clear, toughened, flat glass diffuser, matt and silk-screened on the inside
¬ Glazing diffuser permanently sealed to the housing trough high-temperature
resistant silicone
¬ Anti-ageing custom moulded silicone sealing gasket(s) with resilient elastic return
capacity
¬ IP66-rated, PA66 with silver-plated brass contacts, fast connector, complete with
factory pre-wired cable, for mains connection without opening the luminaire, for
cables Ø 9 - Ø 12 mm
¬ Stainless steel locking hardware
¬ Stainless steel locking springs for the glass
¬ Stainless steel springs for quick installation
¬ EM versions are complete with emergency device that can operate on battery for 1
hour. Product can be used for general or emergency lighting
¬ Static ON/OFF or dimmable DALI options available
¬ Through-wiring version available . Consult factory
¬ Other colour temperatures (CCT) and colour rendering index (CRI) options available.
Consult factory
I GR-94 / Metallic grey / Textured
Scan the QR-code for the
latest information
248
