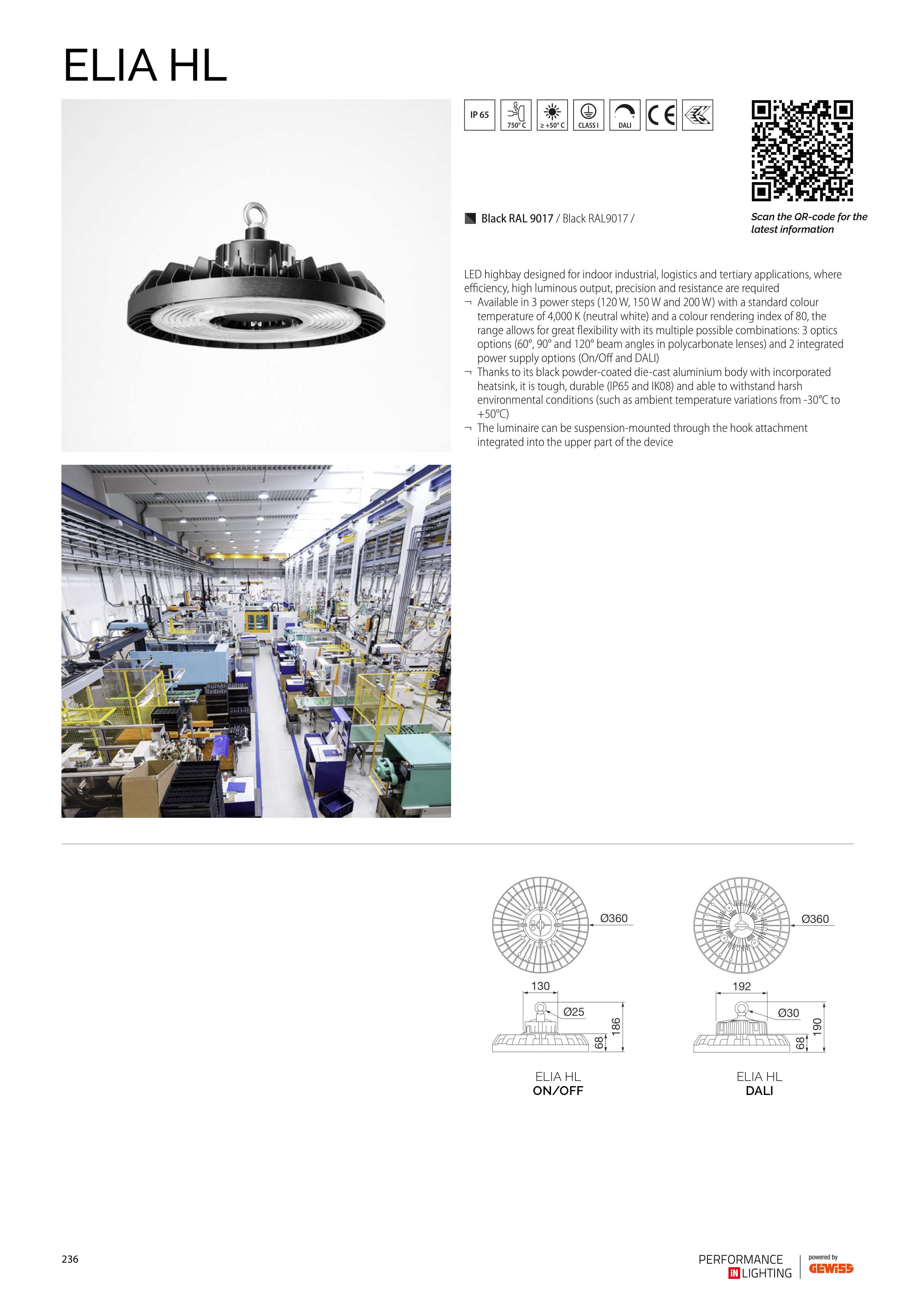

ELIA HL
750° C ≥ +50° C
192
68
190
Ø30
Ø360
130
68
186
Ø25
Ø360
ELIA HL
DALI
ELIA HL
ON/OFF
LED highbay designed for indoor industrial, logistics and tertiary applications, where
efficiency, high luminous output, precision and resistance are required
¬ Available in 3 power steps (120 W, 150 W and 200 W) with a standard colour
temperature of 4,000 K (neutral white) and a colour rendering index of 80, the
range allows for great flexibility with its multiple possible combinations: 3 optics
options (60°, 90° and 120° beam angles in polycarbonate lenses) and 2 integrated
power supply options (On/Off and DALI)
¬ Thanks to its black powder-coated die-cast aluminium body with incorporated
heatsink, it is tough, durable (IP65 and IK08) and able to withstand harsh
environmental conditions (such as ambient temperature variations from -30°C to
+50°C)
¬ The luminaire can be suspension-mounted through the hook attachment
integrated into the upper part of the device
Scan the QR-code for the
latest information
P Black RAL 9017 / Black RAL9017 /
236
