C=90
C=0
A
C=180
C=270
Imax
2
Imax
2
I max

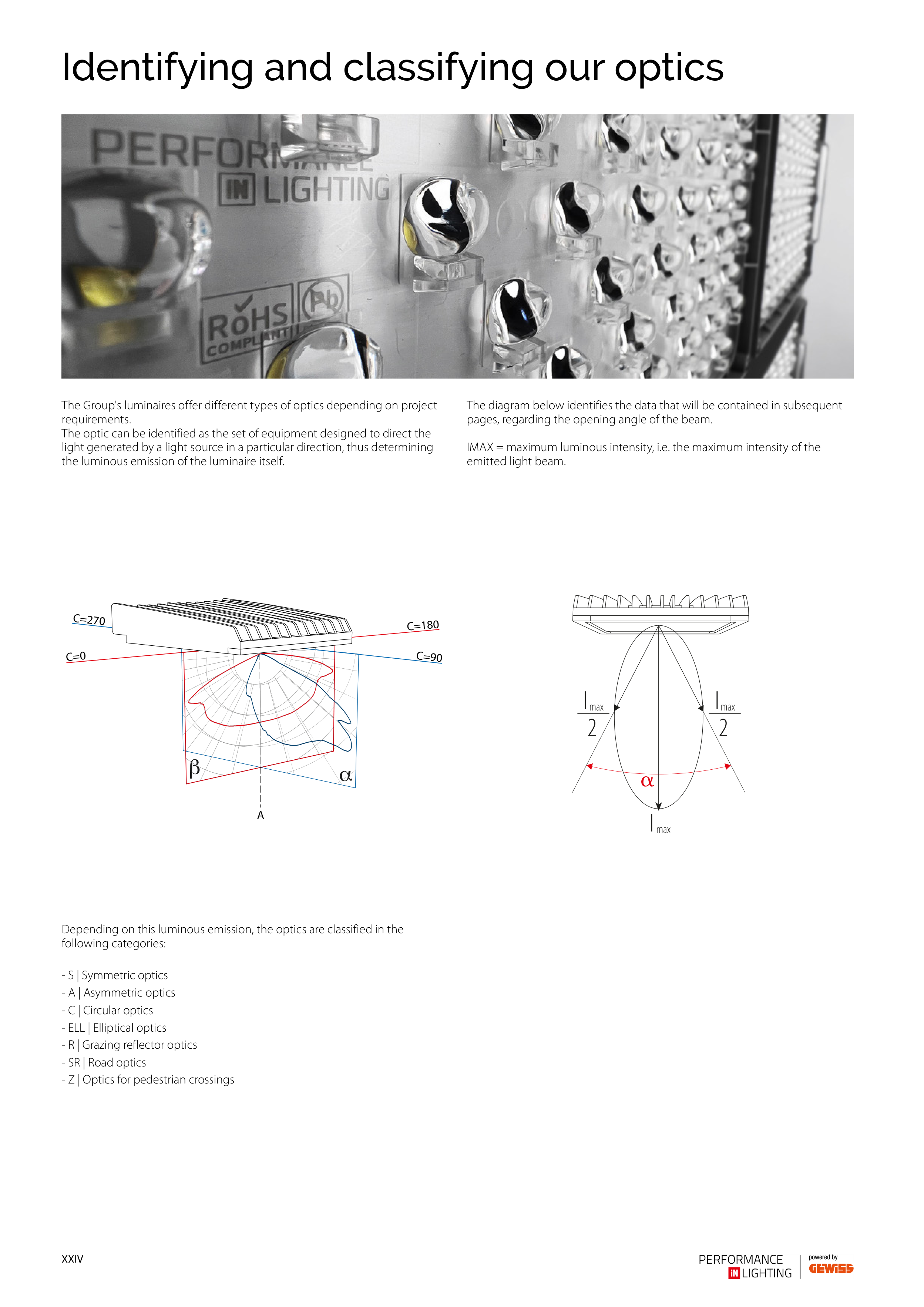

Identifying and classifying our optics
The Group's luminaires offer different types of optics depending on project
requirements.
The optic can be identified as the set of equipment designed to direct the
light generated by a light source in a particular direction, thus determining
the luminous emission of the luminaire itself.
The diagram below identifies the data that will be contained in subsequent
pages, regarding the opening angle of the beam.
IMAX = maximum luminous intensity, i.e. the maximum intensity of the
emitted light beam.
- S | Symmetric optics
- C | Circular optics
- A | Asymmetric optics
- SR | Road optics
- Z | Optics for pedestrian crossings
- ELL | Elliptical optics
Depending on this luminous emission, the optics are classified in the
following categories:
- R | Grazing reflector optics
XXIV
