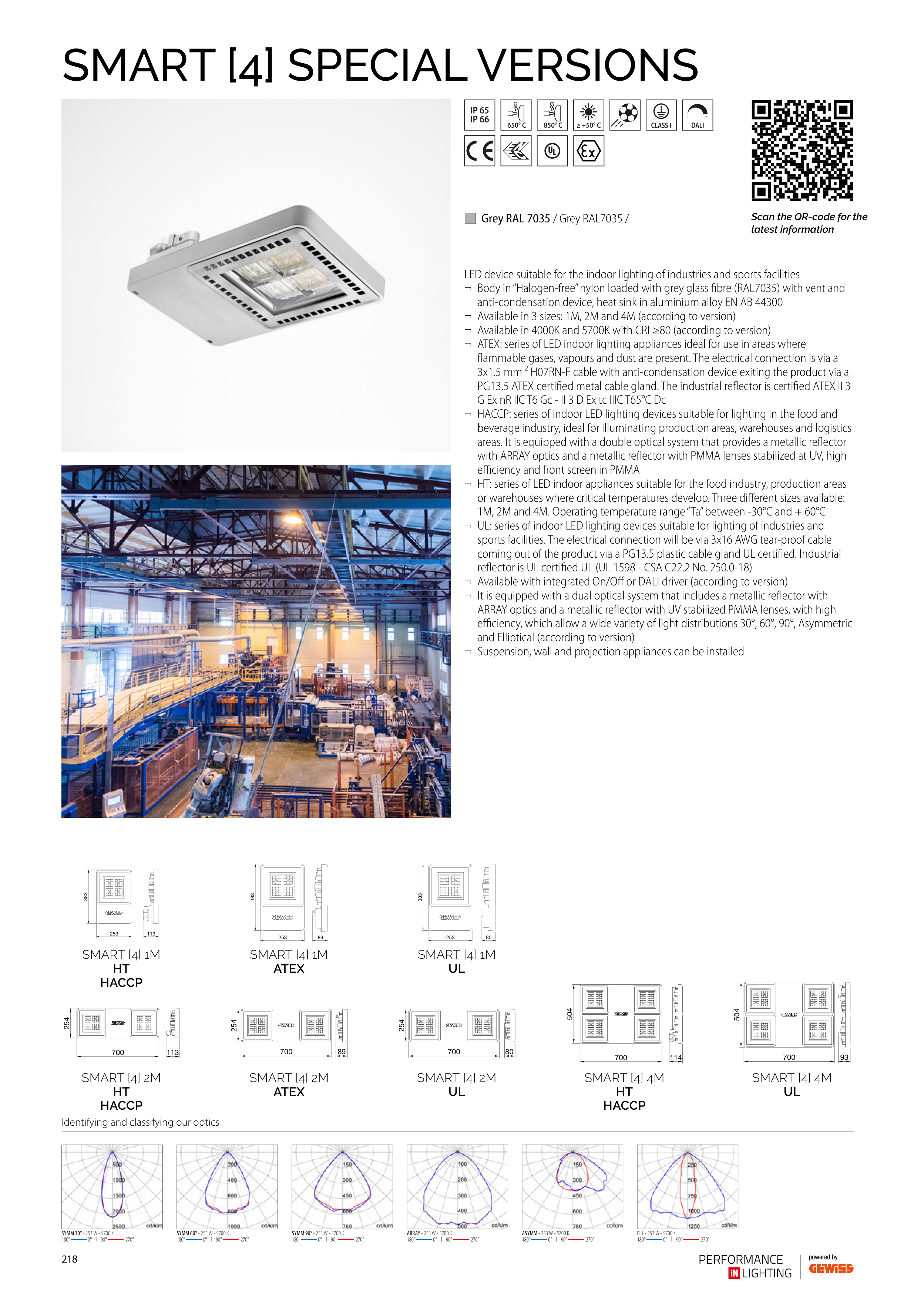

SMART [4] SPECIAL VERSIONS
650° C
850° C ≥ +50° C
80
253
383
89
383
253
113
383
253
SMART [4] 1M
UL
SMART [4] 1M
ATEX
SMART [4] 1M
HT
HACCP
3100132
SYMM 30° - 253 W - 5700 K
3100132
SYMM 60° - 253 W - 5700 K
SYMM 90° - 253 W - 5700 K
ARRAY - 253 W - 5700 K
ASYMM - 253 W - 5700 K
ELL - 253 W - 5700 K
113
700
254
89
254
700
80
254
700
SMART [4] 2M
HT
HACCP
SMART [4] 2M
ATEX
SMART [4] 2M
UL
93
700
504
114
504
700
SMART [4] 4M
UL
SMART [4] 4M
HT
HACCP
LED device suitable for the indoor lighting of industries and sports facilities
¬ Body in “Halogen-free” nylon loaded with grey glass fibre (RAL7035) with vent and
anti-condensation device, heat sink in aluminium alloy EN AB 44300
¬ Available in 3 sizes: 1M, 2M and 4M (according to version)
¬ Available in 4000K and 5700K with CRI ≥80 (according to version)
¬ ATEX: series of LED indoor lighting appliances ideal for use in areas where
flammable gases, vapours and dust are present. The electrical connection is via a
3x1.5 mm ² H07RN-F cable with anti-condensation device exiting the product via a
PG13.5 ATEX certified metal cable gland. The industrial reflector is certified ATEX II 3
G Ex nR IIC T6 Gc - II 3 D Ex tc IIIC T65°C Dc
¬ HACCP: series of indoor LED lighting devices suitable for lighting in the food and
beverage industry, ideal for illuminating production areas, warehouses and logistics
areas. It is equipped with a double optical system that provides a metallic reflector
with ARRAY optics and a metallic reflector with PMMA lenses stabilized at UV, high
efficiency and front screen in PMMA
¬ HT: series of LED indoor appliances suitable for the food industry, production areas
or warehouses where critical temperatures develop. Three different sizes available:
1M, 2M and 4M. Operating temperature range “Ta” between -30°C and + 60°C
¬ UL: series of indoor LED lighting devices suitable for lighting of industries and
sports facilities. The electrical connection will be via 3x16 AWG tear-proof cable
coming out of the product via a PG13.5 plastic cable gland UL certified. Industrial
reflector is UL certified UL (UL 1598 - CSA C22.2 No. 250.0-18)
¬ Available with integrated On/Off or DALI driver (according to version)
¬ It is equipped with a dual optical system that includes a metallic reflector with
ARRAY optics and a metallic reflector with UV stabilized PMMA lenses, with high
efficiency, which allow a wide variety of light distributions 30°, 60°, 90°, Asymmetric
and Elliptical (according to version)
¬ Suspension, wall and projection appliances can be installed
J Grey RAL 7035 / Grey RAL7035 /
Scan the QR-code for the
latest information
Identifying and classifying our optics
218
