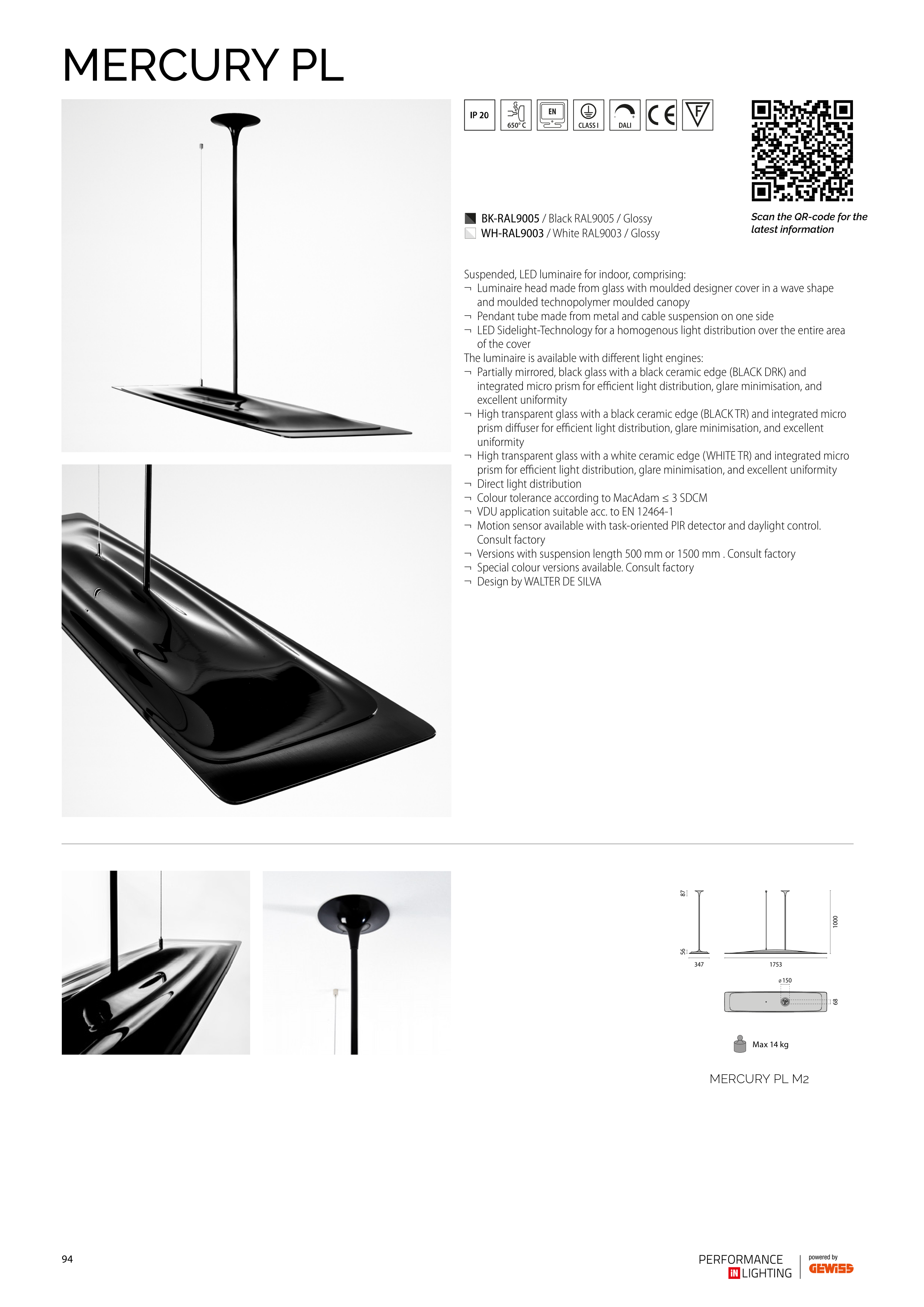

MERCURY PL
650° C
347
1753
56
87
1000
68
Ø 150
MERCURY PL M2
Suspended, LED luminaire for indoor, comprising:
¬ Luminaire head made from glass with moulded designer cover in a wave shape
and moulded technopolymer moulded canopy
¬ Pendant tube made from metal and cable suspension on one side
¬ LED Sidelight-Technology for a homogenous light distribution over the entire area
of the cover
The luminaire is available with different light engines:
¬ Partially mirrored, black glass with a black ceramic edge (BLACK DRK) and
integrated micro prism for efficient light distribution, glare minimisation, and
excellent uniformity
¬ High transparent glass with a black ceramic edge (BLACK TR) and integrated micro
prism diffuser for efficient light distribution, glare minimisation, and excellent
uniformity
¬ High transparent glass with a white ceramic edge (WHITE TR) and integrated micro
prism for efficient light distribution, glare minimisation, and excellent uniformity
¬ Direct light distribution
¬ Colour tolerance according to MacAdam ≤ 3 SDCM
¬ VDU application suitable acc. to EN 12464-1
¬ Motion sensor available with task-oriented PIR detector and daylight control.
Consult factory
¬ Versions with suspension length 500 mm or 1500 mm . Consult factory
¬ Special colour versions available. Consult factory
¬ Design by WALTER DE SILVA
P BK-RAL9005 / Black RAL9005 / Glossy
U WH-RAL9003 / White RAL9003 / Glossy
Scan the QR-code for the
latest information
94
Max 14 kg
