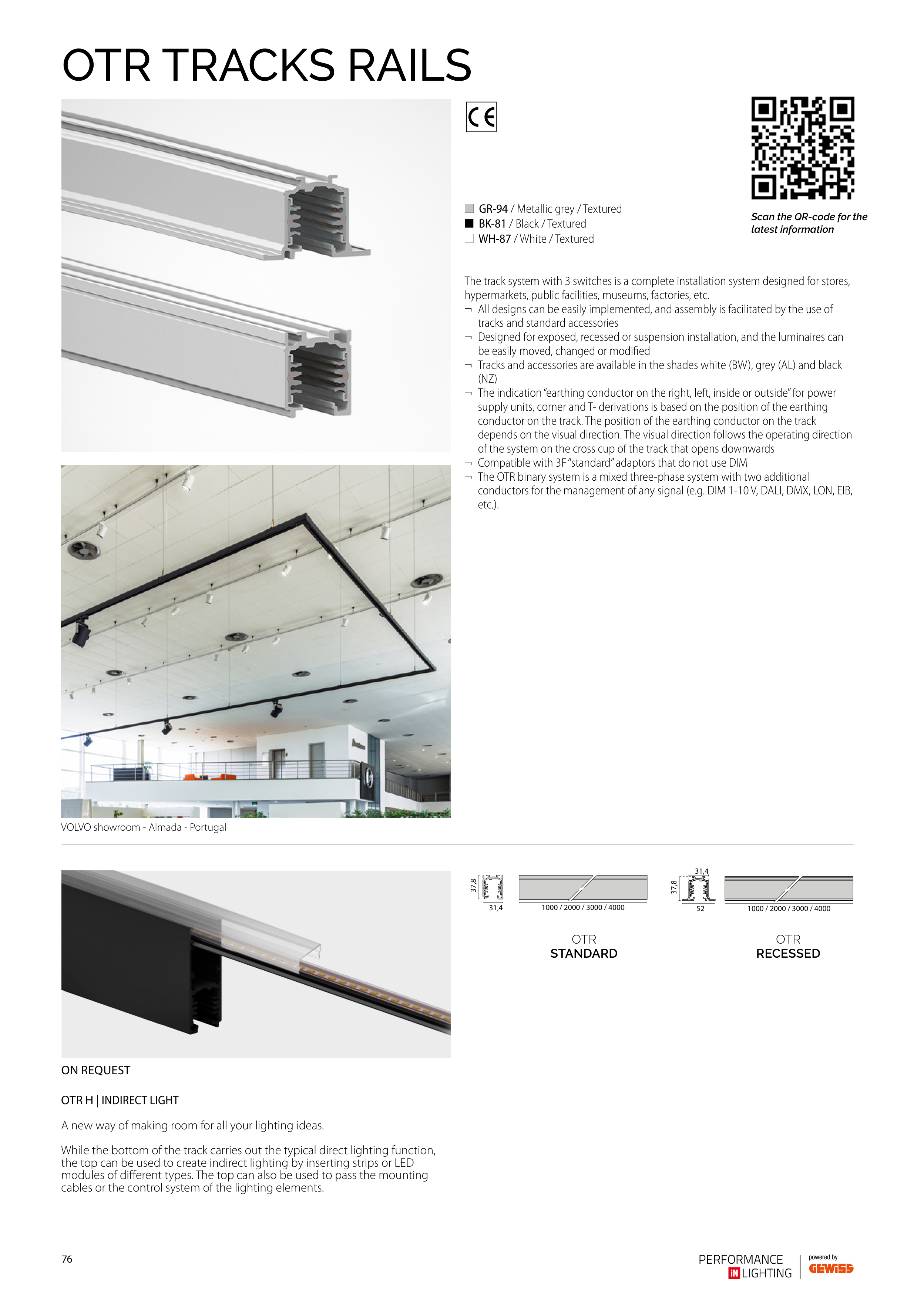

OTR TRACKS RAILS
e
52
1000 / 2000 / 3000 / 4000
31,4
37,8
31,4
37,8
1000 / 2000 / 3000 / 4000
OTR
STANDARD
OTR
RECESSED
VOLVO showroom - Almada - Portugal
The track system with 3 switches is a complete installation system designed for stores,
hypermarkets, public facilities, museums, factories, etc.
¬ All designs can be easily implemented, and assembly is facilitated by the use of
tracks and standard accessories
¬ Designed for exposed, recessed or suspension installation, and the luminaires can
be easily moved, changed or modified
¬ Tracks and accessories are available in the shades white (BW), grey (AL) and black
(NZ)
¬ The indication “earthing conductor on the right, left, inside or outside” for power
supply units, corner and T- derivations is based on the position of the earthing
conductor on the track. The position of the earthing conductor on the track
depends on the visual direction. The visual direction follows the operating direction
of the system on the cross cup of the track that opens downwards
¬ Compatible with 3F “standard” adaptors that do not use DIM
¬ The OTR binary system is a mixed three-phase system with two additional
conductors for the management of any signal (e.g. DIM 1-10 V, DALI, DMX, LON, EIB,
etc.).
I GR-94 / Metallic grey / Textured
o BK-81 / Black / Textured
T WH-87 / White / Textured
ON REQUEST
A new way of making room for all your lighting ideas.
While the bottom of the track carries out the typical direct lighting function,
the top can be used to create indirect lighting by inserting strips or LED
modules of different types. The top can also be used to pass the mounting
cables or the control system of the lighting elements.
OTR H | INDIRECT LIGHT
Scan the QR-code for the
latest information
