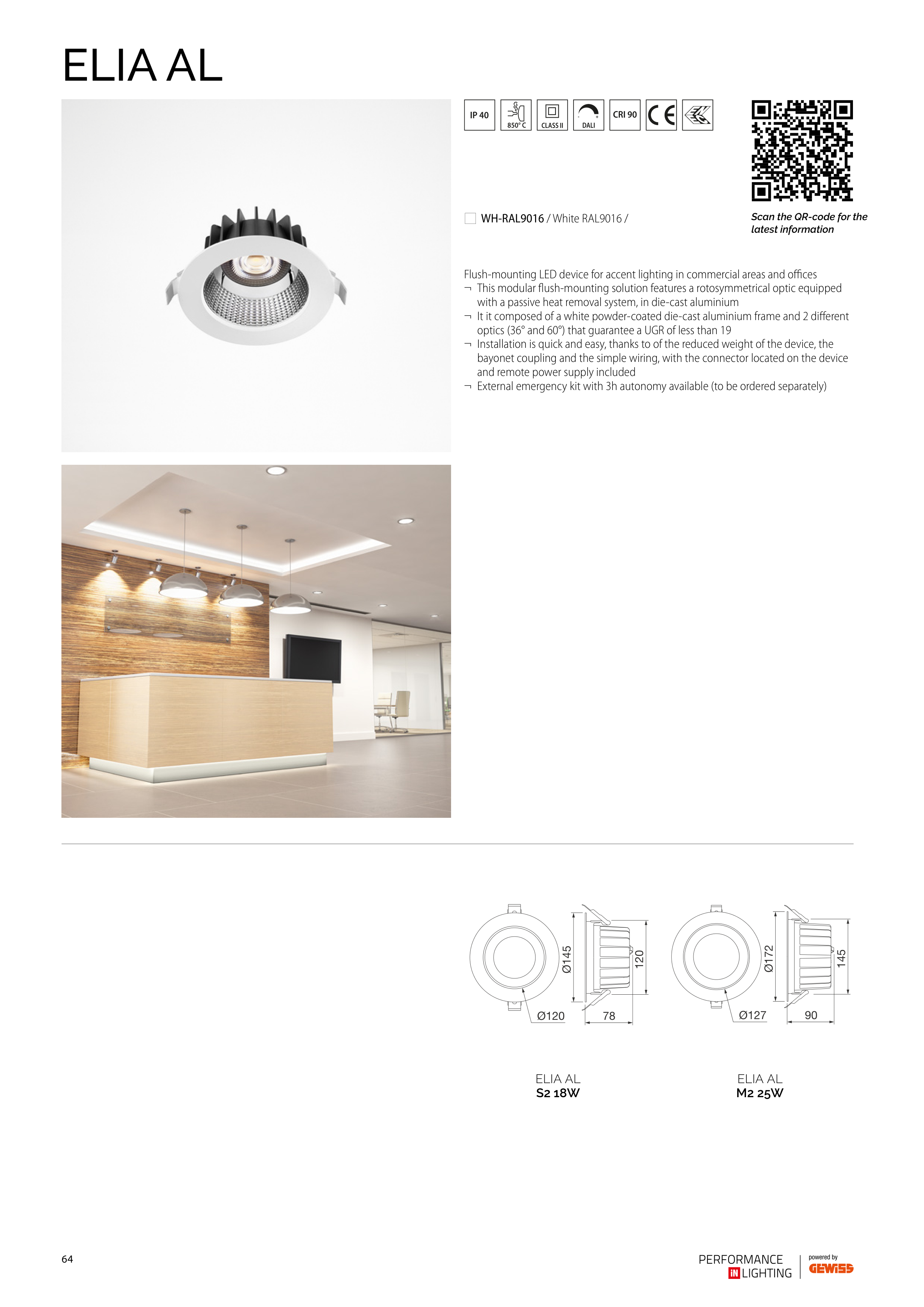

ELIA AL
850° C
145
90
Ø172
Ø127
120
78
Ø145
Ø120
ELIA AL
M2 25W
ELIA AL
S2 18W
Flush-mounting LED device for accent lighting in commercial areas and offices
¬ This modular flush-mounting solution features a rotosymmetrical optic equipped
with a passive heat removal system, in die-cast aluminium
¬ It it composed of a white powder-coated die-cast aluminium frame and 2 different
optics (36° and 60°) that guarantee a UGR of less than 19
¬ Installation is quick and easy, thanks to of the reduced weight of the device, the
bayonet coupling and the simple wiring, with the connector located on the device
and remote power supply included
¬ External emergency kit with 3h autonomy available (to be ordered separately)
T WH-RAL9016 / White RAL9016 /
Scan the QR-code for the
latest information
64
