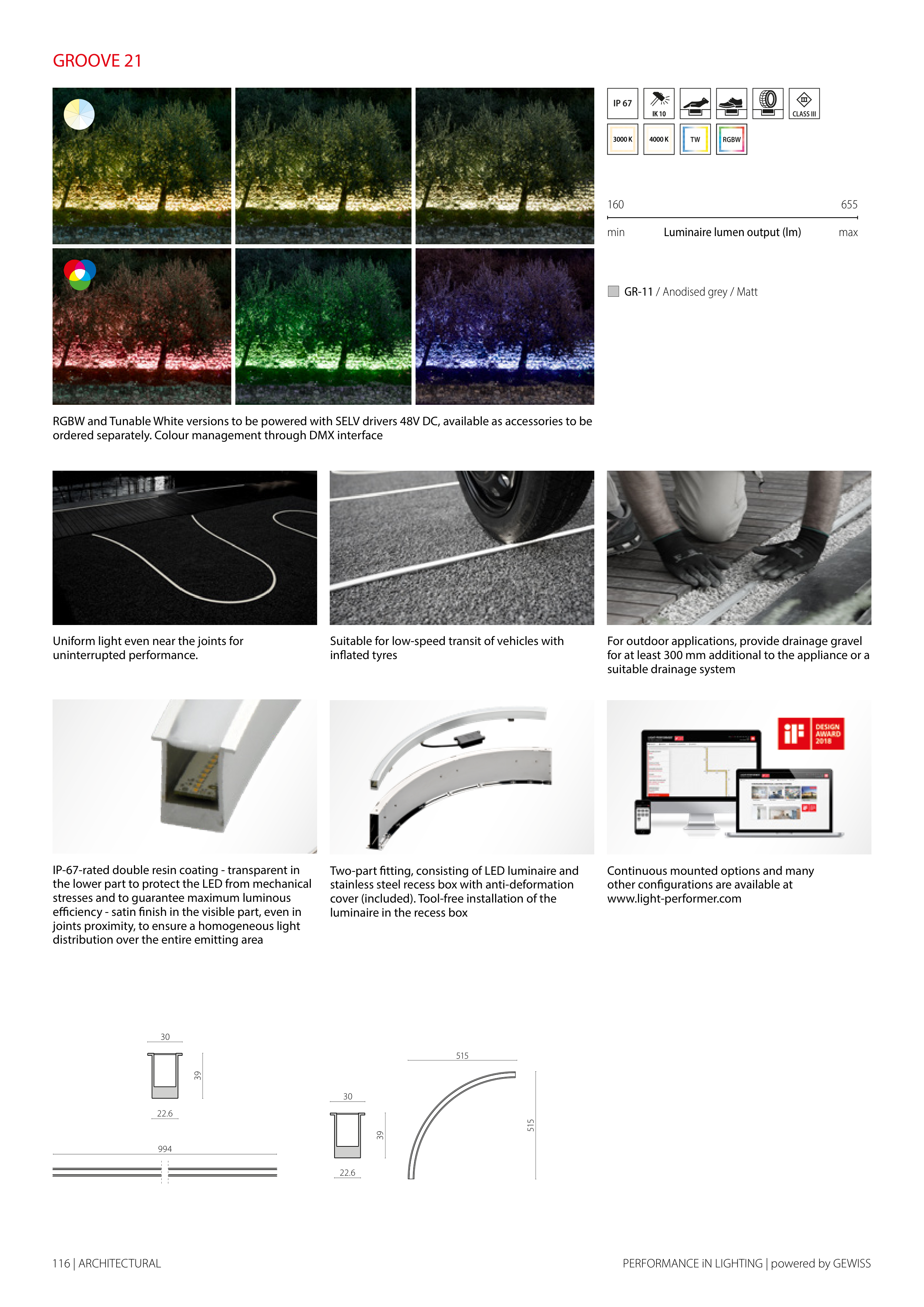

116 | ARCHITECTURAL
PERFORMANCE iN LIGHTING | powered by GEWISS
GROOVE 21
515
515
22.6
39
30
994
39
30
22.6
160
655
max
min
IP-67-rated double resin coating - transparent in
the lower part to protect the LED from mechanical
stresses and to guarantee maximum luminous
efficiency - satin finish in the visible part, even in
joints proximity, to ensure a homogeneous light
distribution over the entire emitting area
Suitable for low-speed transit of vehicles with
inflated tyres
Two-part fitting, consisting of LED luminaire and
stainless steel recess box with anti-deformation
cover (included). Tool-free installation of the
luminaire in the recess box
For outdoor applications, provide drainage gravel
for at least 300 mm additional to the appliance or a
suitable drainage system
Continuous mounted options and many
other configurations are available at
www.light-performer.com
Uniform light even near the joints for
uninterrupted performance.
RGBW and Tunable White versions to be powered with SELV drivers 48V DC, available as accessories to be
ordered separately. Colour management through DMX interface
F GR-11 / Anodised grey / Matt
Luminaire lumen output (lm)
