30 | ARCHITECTURAL

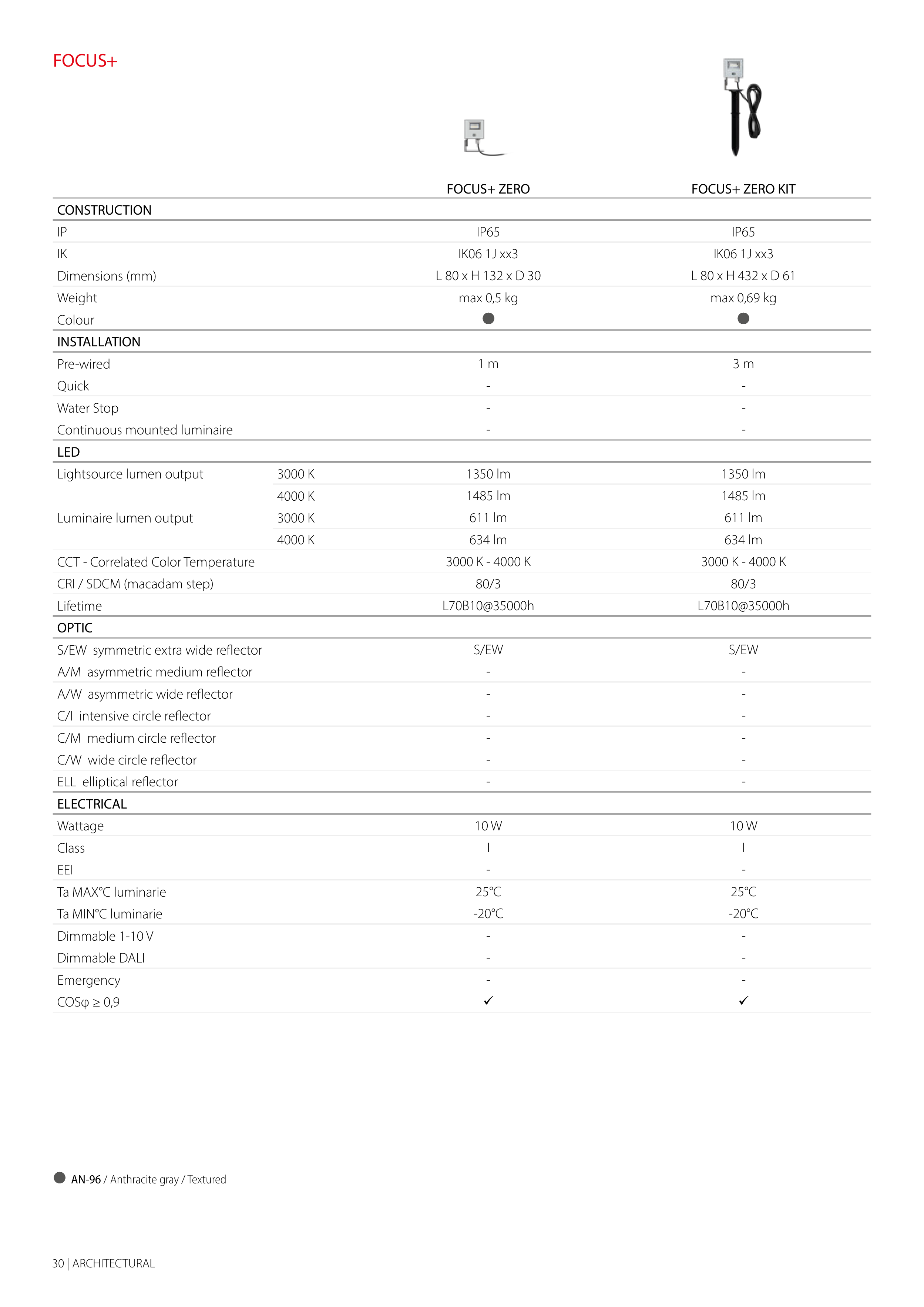

FOCUS+
FOCUS+ ZERO
FOCUS+ ZERO KIT
IP65
IP65
IK06 1J xx3
IK06 1J xx3
L 80 x H 132 x D 30
L 80 x H 432 x D 61
max 0,5 kg
max 0,69 kg
n
n
n
n
n
1 m
3 m
-
-
-
-
-
-
ü
ü
ü
1350 lm
1350 lm
1485 lm
1485 lm
611 lm
611 lm
634 lm
634 lm
3000 K - 4000 K
3000 K - 4000 K
80/3
80/3
L70B10@35000h
L70B10@35000h
S/EW
S/EW
-
-
-
-
-
-
-
-
-
-
-
-
10 W
10 W
I
I
-
-
25°C
25°C
-20°C
-20°C
-
-
-
-
ü
ü
ü
-
-
ü
ü
ü
ü
ü
CONSTRUCTION
IP
IK
Dimensions (mm)
Weight
Colour
INSTALLATION
Pre-wired
Quick
Water Stop
Continuous mounted luminaire
LED
Lightsource lumen output
3000 K
4000 K
Luminaire lumen output
3000 K
4000 K
CCT - Correlated Color Temperature
CRI / SDCM (macadam step)
Lifetime
OPTIC
S/EW symmetric extra wide reflector
A/M asymmetric medium reflector
A/W asymmetric wide reflector
C/I intensive circle reflector
C/M medium circle reflector
C/W wide circle reflector
ELL elliptical reflector
ELECTRICAL
Wattage
Class
EEI
Ta MAX°C luminarie
Ta MIN°C luminarie
Dimmable 1-10 V
Dimmable DALI
Emergency
COSφ ≥ 0,9
n AN-96 / Anthracite gray / Textured
