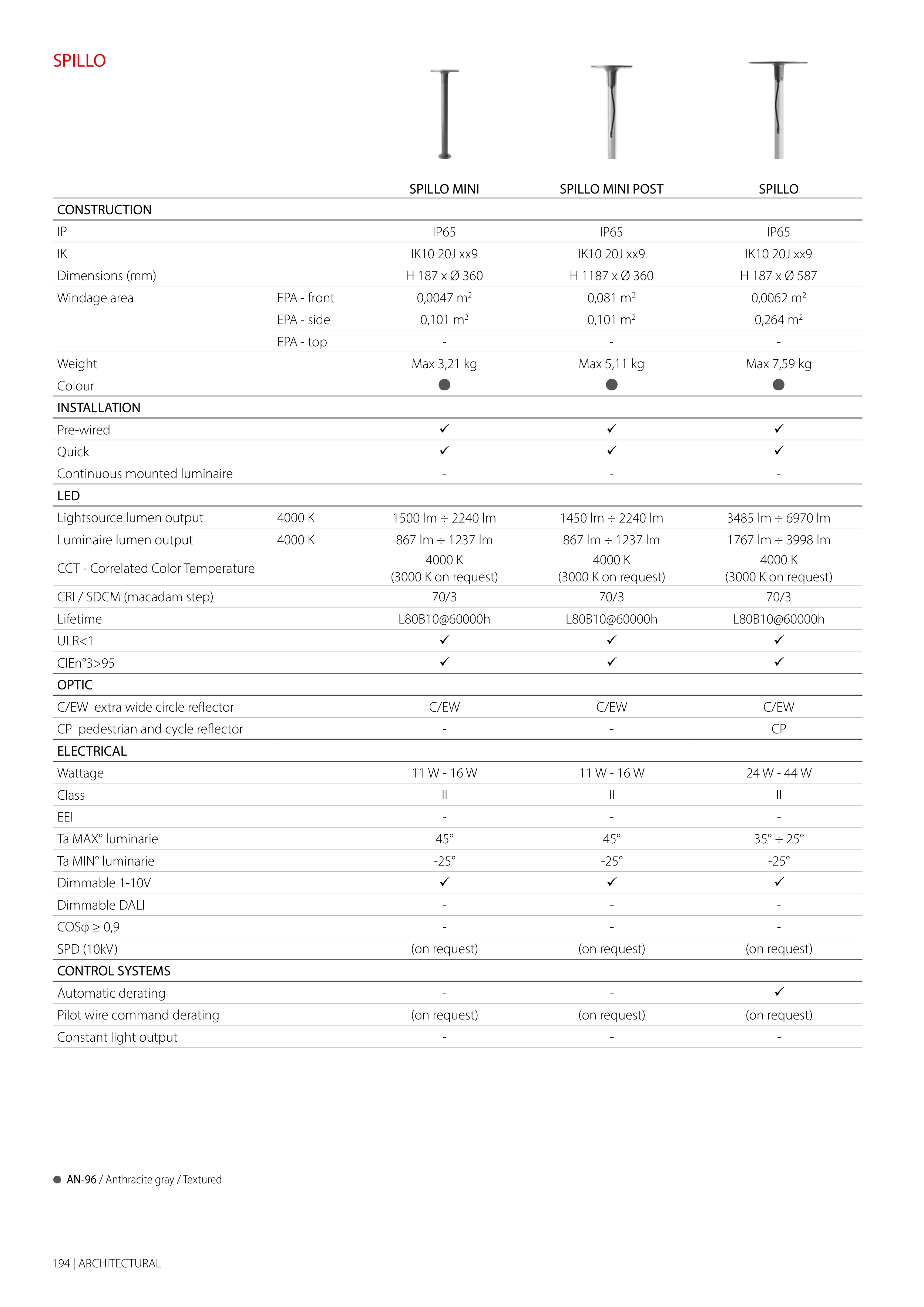

194 | ARCHITECTURAL
SPILLO
SPILLO MINI
SPILLO MINI POST
SPILLO
IP65
IP65
IP65
IK10 20J xx9
IK10 20J xx9
IK10 20J xx9
H 187 x Ø 360
H 1187 x Ø 360
H 187 x Ø 587
0,0047 m2
0,081 m2
0,0062 m2
0,101 m2
0,101 m2
0,264 m2
-
-
-
Max 3,21 kg
Max 5,11 kg
Max 7,59 kg
n
n
n
ü
ü
ü
ü
ü
ü
-
-
-
1500 lm ÷ 2240 lm
1450 lm ÷ 2240 lm
3485 lm ÷ 6970 lm
867 lm ÷ 1237 lm
867 lm ÷ 1237 lm
1767 lm ÷ 3998 lm
4000 K
(3000 K on request)
4000 K
(3000 K on request)
4000 K
(3000 K on request)
70/3
70/3
70/3
L80B10@60000h
L80B10@60000h
L80B10@60000h
ü
ü
ü
ü
ü
ü
C/EW
C/EW
C/EW
-
-
CP
11 W - 16 W
11 W - 16 W
24 W - 44 W
II
II
II
-
-
-
45°
45°
35° ÷ 25°
-25°
-25°
-25°
ü
ü
ü
-
-
-
-
-
-
(on request)
(on request)
(on request)
-
-
ü
(on request)
(on request)
(on request)
-
-
-
CONSTRUCTION
IP
IK
Dimensions (mm)
Windage area
EPA - front
EPA - side
EPA - top
Weight
Colour
INSTALLATION
Pre-wired
Quick
Continuous mounted luminaire
LED
Lightsource lumen output
4000 K
Luminaire lumen output
4000 K
CCT - Correlated Color Temperature
CRI / SDCM (macadam step)
Lifetime
ULR<1
CIEn°3>95
OPTIC
C/EW extra wide circle reflector
CP pedestrian and cycle reflector
ELECTRICAL
Wattage
Class
EEI
Ta MAX° luminarie
Ta MIN° luminarie
Dimmable 1-10V
Dimmable DALI
COSφ ≥ 0,9
SPD (10kV)
CONTROL SYSTEMS
Automatic derating
Pilot wire command derating
Constant light output
n AN-96 / Anthracite gray / Textured
