172 | ARCHITECTURAL

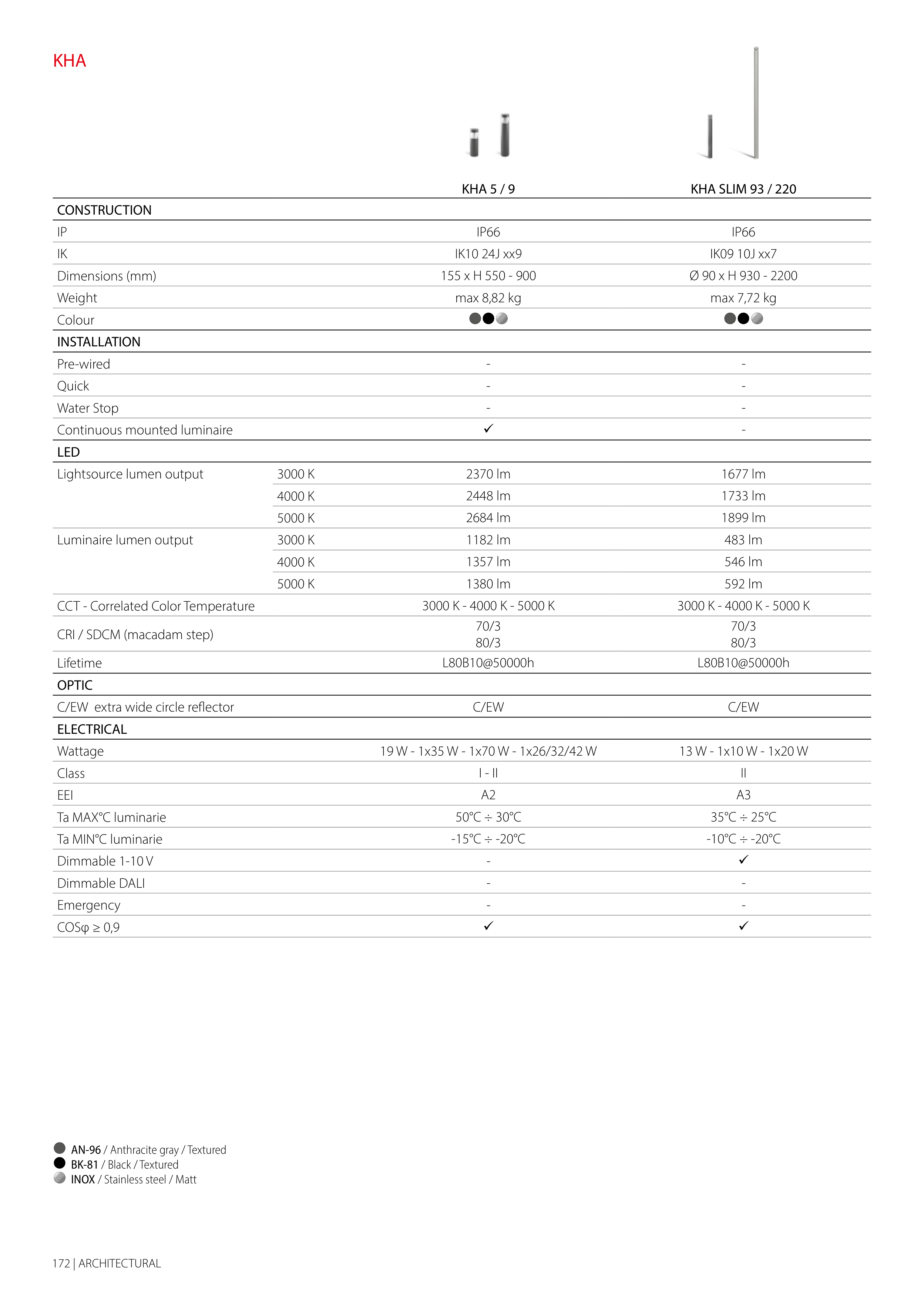

KHA
KHA 5 / 9
KHA SLIM 93 / 220
IP66
IP66
IK10 24J xx9
IK09 10J xx7
155 x H 550 - 900
Ø 90 x H 930 - 2200
max 8,82 kg
max 7,72 kg
noc
noc
-
-
-
-
-
-
ü
-
2370 lm
1677 lm
2448 lm
1733 lm
2684 lm
1899 lm
1182 lm
483 lm
1357 lm
546 lm
1380 lm
592 lm
3000 K - 4000 K - 5000 K
3000 K - 4000 K - 5000 K
70/3
80/3
70/3
80/3
L80B10@50000h
L80B10@50000h
C/EW
C/EW
19 W - 1x35 W - 1x70 W - 1x26/32/42 W
13 W - 1x10 W - 1x20 W
I - II
II
A2
A3
50°C ÷ 30°C
35°C ÷ 25°C
-15°C ÷ -20°C
-10°C ÷ -20°C
-
ü
-
-
-
-
ü
ü
CONSTRUCTION
IP
IK
Dimensions (mm)
Weight
Colour
INSTALLATION
Pre-wired
Quick
Water Stop
Continuous mounted luminaire
LED
Lightsource lumen output
3000 K
4000 K
5000 K
Luminaire lumen output
3000 K
4000 K
5000 K
CCT - Correlated Color Temperature
CRI / SDCM (macadam step)
Lifetime
OPTIC
C/EW extra wide circle reflector
ELECTRICAL
Wattage
Class
EEI
Ta MAX°C luminarie
Ta MIN°C luminarie
Dimmable 1-10 V
Dimmable DALI
Emergency
COSφ ≥ 0,9
n AN-96 / Anthracite gray / Textured
o BK-81 / Black / Textured
c INOX / Stainless steel / Matt
