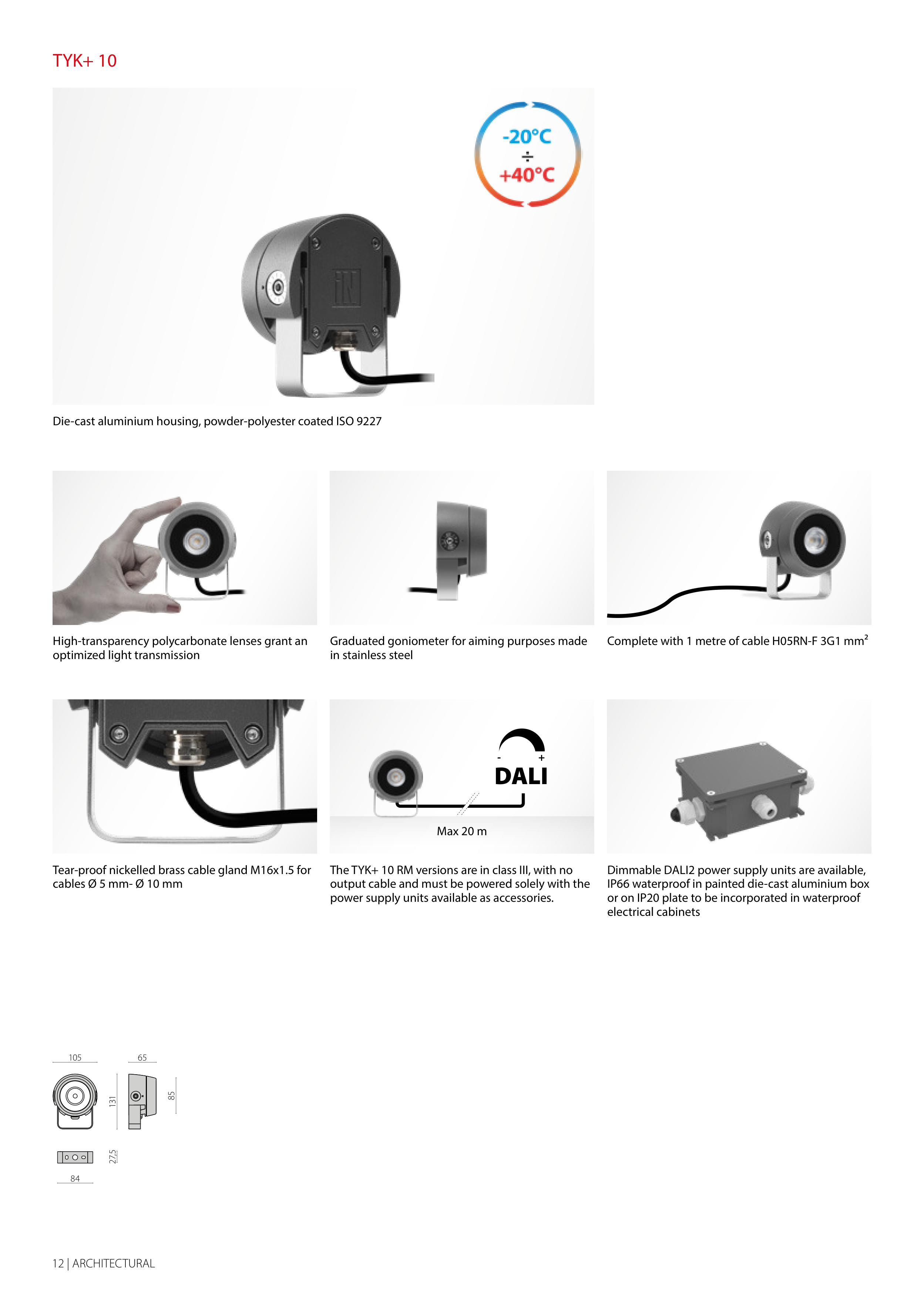

TYK+ 10
105
84
65
131
27,5
85
DALI
Max 20 m
Die-cast aluminium housing, powder-polyester coated ISO 9227
Graduated goniometer for aiming purposes made
in stainless steel
Complete with 1 metre of cable H05RN-F 3G1 mm²
High-transparency polycarbonate lenses grant an
optimized light transmission
Tear-proof nickelled brass cable gland M16x1.5 for
cables Ø 5 mm- Ø 10 mm
The TYK+ 10 RM versions are in class III, with no
output cable and must be powered solely with the
power supply units available as accessories.
Dimmable DALI2 power supply units are available,
IP66 waterproof in painted die-cast aluminium box
or on IP20 plate to be incorporated in waterproof
electrical cabinets
