Porta versione:
Antieffrazione UNI ENV 1627:
Anno di produzione / N° ordine:
Istituto di prova:
ISTITUTO GIORDANO spa
Produttore:
OIKOS VENEZIA S.r.l.
via della Tecnica 6
30020 Gruaro - VE
Porta pedonale antieffrazione
destinata all’impiego in luoghi
residenziali e commerciali
EN 14351-1:2006
ZERTIFIZIERT
Qualità di prodotto
Porta antieffrazione
UNI ENV 1627
Reg-N°:7010933
EVOLUTION 3
CLASSE 3
15/1234
08
Break-In Resistance Class 3
It is the ability to withstand break-in
attempts measured by applying stresses
with static and dynamic loads and
simulating break-in attempts carried out
with manual tools such as a crowbar,
screwdrivers, pliers, etc. for a maximum test time duration
of 20 minutes.
Break-in resistance class 4
This is the ability to withstand break-in
attempts measured by applying stresses
with static and dynamic loads and
simulating break-in attempts carried out
with manual and electric tools such as a
hammer, chisel, ax, shear, electric drill, etc. for a maximum
test time duration of 30 minutes.
Acoustic
It is measured in dB and is the ability
to prevent noise from passing through
the door (soundproofing). The higher
the indicated value, the better the
soundproofing capacity.
Thermal
It is indicated with a U, it
is measured in [W/(m²k)]
and is the ability to prevent
heat exchange between
two areas separated by the
door. The nearer the indicated value is to
0, the better the ability to prevent heat from
passing from the hottest area to the coldest
one.
Air
Air permeability is measured in classes
ranging from 0 to 4, indicating the ability
to prevent air from passing through the
door. The higher the classification value,
the greater the tightness.
Water
Water
tightness
is
measured
in classes ranging from 0 to 9,
indicating the ability to prevent water
from passing through the door. The
higher the classification value, the
greater the tightness.
Wind
Wind resistance is measured in classes
ranging from 0 to 5, indicating the
mechanical resistance of the door
to gusts of wind. The higher the
classification value, the greater the
resistance.
Fire
The reference values are EI 15, EI 30, EI
60, EI 90, where E is the ability of the
door to resist the passage of flames, I
is the thermal insulation, and 15 - 30 -
60 - 90 is the time for which the door
succeeds in maintaining the E and I performance levels.
Quality Management System.
The company is constantly committed
to improve the productive process.
Environmental management
system.
Oikos is sensitive to environmental
problems and has obtained voluntary
UNI EN ISO 14001 certification.
This trademark certifies that Oikos
uses wood coming from forests
that are managed in a correct and
responsible manner.
ZERTIFIZIERT
ZERTIFIZIERT
Product certification.
The external supervising body IFT controls
and verifies occasionally the production
phases and features of the used materials.
EN 71-3 “Toy Safety”.
Oikos uses water-based paints that do
not release harmful substances over time,
protecting environment and people.
Oikos doors bear the CE marking in
accordance with European Directive
89/106/EEC.

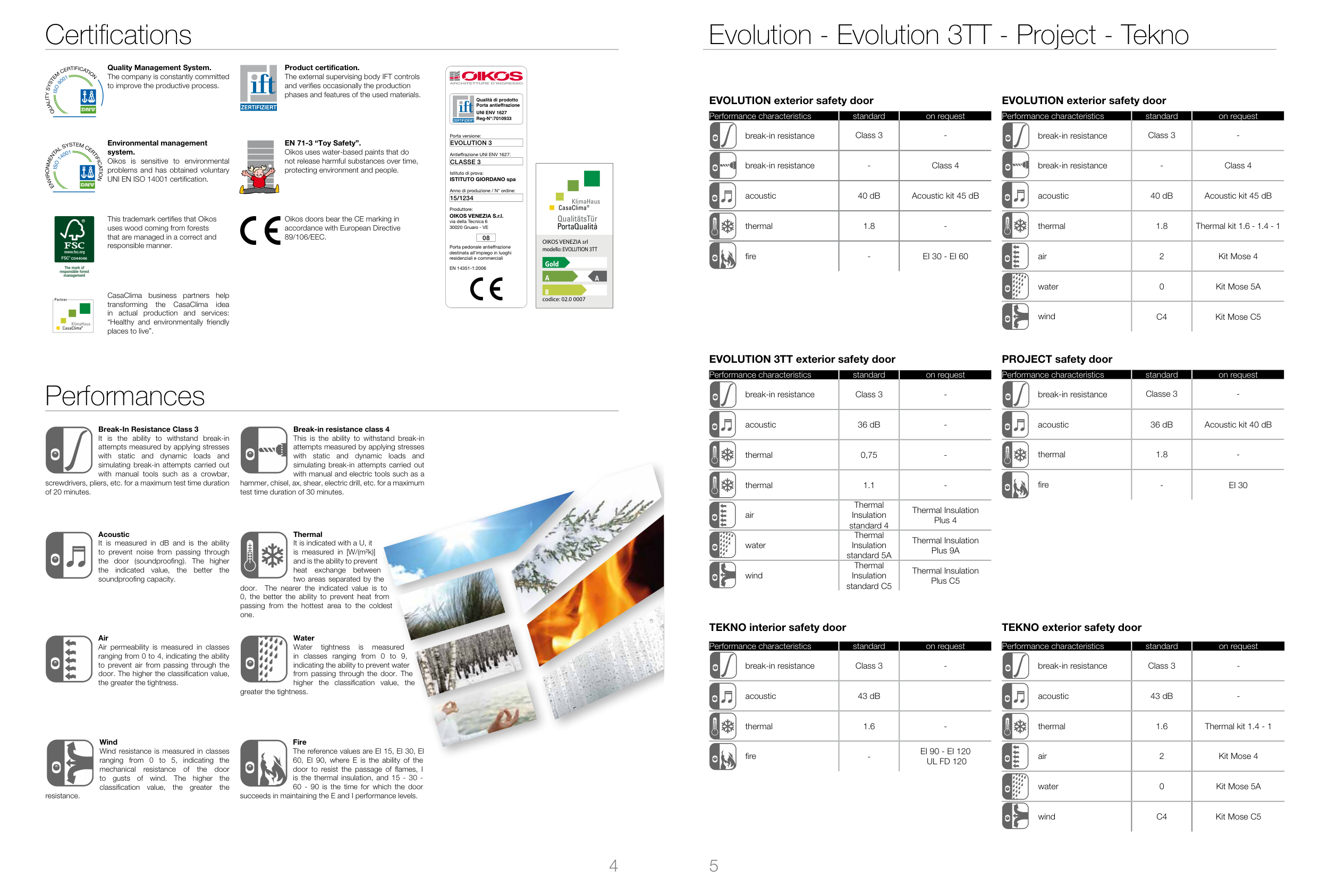

Certifications
Performances
Performance characteristics
standard
on request
break-in resistance
Class 3
-
break-in resistance
-
Class 4
acoustic
40 dB
Acoustic kit 45 dB
thermal
1.8
-
fire
-
EI 30 - EI 60
EVOLUTION exterior safety door
Performance characteristics
standard
on request
break-in resistance
Class 3
-
acoustic
43 dB
thermal
1.6
-
fire
-
EI 90 - EI 120
UL FD 120
TEKNO interior safety door
Performance characteristics
standard
on request
break-in resistance
Class 3
-
break-in resistance
-
Class 4
acoustic
40 dB
Acoustic kit 45 dB
thermal
1.8
Thermal kit 1.6 - 1.4 - 1
air
2
Kit Mose 4
water
0
Kit Mose 5A
wind
C4
Kit Mose C5
EVOLUTION exterior safety door
Performance characteristics
standard
on request
break-in resistance
Classe 3
-
acoustic
36 dB
Acoustic kit 40 dB
thermal
1.8
-
fire
-
EI 30
PROJECT safety door
Performance characteristics
standard
on request
break-in resistance
Class 3
-
acoustic
43 dB
-
thermal
1.6
Thermal kit 1.4 - 1
air
2
Kit Mose 4
water
0
Kit Mose 5A
wind
C4
Kit Mose C5
TEKNO exterior safety door
Evolution - Evolution 3TT - Project - Tekno
Performance characteristics
standard
on request
break-in resistance
Class 3
-
acoustic
36 dB
-
thermal
0,75
-
thermal
1.1
-
air
Thermal
Insulation
standard 4
Thermal Insulation
Plus 4
water
Thermal
Insulation
standard 5A
Thermal Insulation
Plus 9A
wind
Thermal
Insulation
standard C5
Thermal Insulation
Plus C5
EVOLUTION 3TT exterior safety door
OIKOS VENEZIA srl
modello: EVOLUTION 3TT
codice: 02.0 0007
CasaClima business partners help
transforming the CasaClima idea
in actual production and services:
“Healthy and environmentally friendly
places to live”.
