70
100
40
70
100
40
technology
» color tune « 2700 / 3000 / 3500 / 4000 K
can be preset or steplessly adjusted
via Occhio air, high color LED ( CRI 95 )
optional pro version ( » constant current « ) for
connection to external drivers, » color tune «
not applicable, can be configured with
2700 / 3000 / 4000 K, high color LED ( CRI 95 )
light
lighting effects see page 148 –149
surfaces head
colors
matt white, matt black, matt silver,
matt gold
materials
rose gold, bronze
phantom, black phantom
surfaces cover ( Mito alto flat only )
matt white, matt black
surfaces inlay, » air « inlay
( Mito alto flat only )
Always included in the color of the cover
in the scope of delivery. Exception: inlay
provided in the color of the head if the
head is matt silver / matt black / matt white,
inlay provided in matt black if the head is
phantom / black phantom.
The surfaces rose gold, bronze,
phantom and black phantom
may differ slightly from other
product lines.

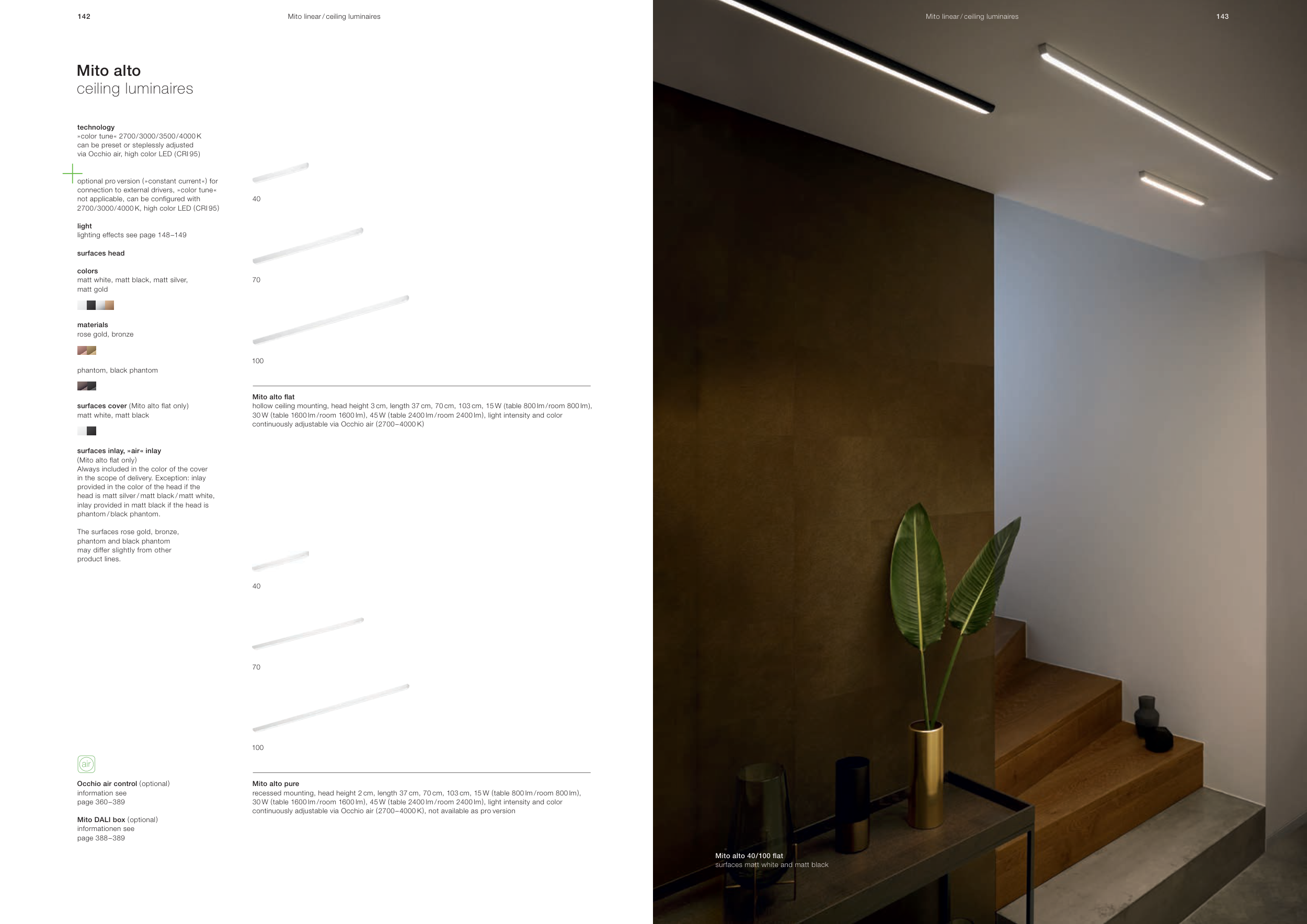

Mito alto flat
hollow ceiling mounting, head height 3 cm, length 37 cm, 70 cm, 103 cm, 15 W ( table 800 lm / room 800 lm ),
30 W ( table 1600 lm / room 1600 lm ), 45 W ( table 2400 lm / room 2400 lm ), light intensity and color
continuously adjustable via Occhio air ( 2700 – 4000 K )
Mito alto 40 / 100 flat
surfaces matt white and matt black
Mito alto
ceiling luminaires
Occhio air control ( optional )
information see
page 360 – 389
Mito DALI box ( optional )
informationen see
page 388 – 389
Mito alto pure
recessed mounting, head height 2 cm, length 37 cm, 70 cm, 103 cm, 15 W ( table 800 lm / room 800 lm ),
30 W ( table 1600 lm / room 1600 lm ), 45 W ( table 2400 lm / room 2400 lm ), light intensity and color
continuously adjustable via Occhio air ( 2700 – 4000 K ), not available as pro version
Mito linear / ceiling luminaires
143
Mito linear / ceiling luminaires
142
