Mito volo 140 fix up midfeed
surface-mounted / midfeed, head length 136 cm, pen-
dant length max. 350 cm, 60 W ( table 3900 lm / room
3700 lm ), light intensity and color ( 2700 – 4000 K ) and
uplight / downlight continuously adjustable via » touchless
control « at the head or via Occhio air, alternatively
dimmable via trailing-edge phase cut dimmer, not
available as pro version
Mito volo 140 fix up
surface-mounted, head length 136 cm, pendant
length max. 350 cm, 60 W ( table 3900 lm / room
3700 lm ), light intensity and color ( 2700 – 4000 K )
and uplight / downlight continuously adjustable via
» touchless control « at the head or via Occhio air,
alternatively dimmable via trailing-edge phase
cut dimmer
Mito volo 140 var up
surface-mounted, head length 136 cm, pendant
length adjustable from 65 –165 cm ( optional
135 – 235 cm ), 60 W ( table 3900 lm / room 3700 lm ),
light intensity and color ( 2700 – 4000 K ) and up /
downlight continuously adjustable via » touchless
control « on the head or via Occhio air, alternatively
dimmable via trailing-edge phase cut dimmer, not
available as pro version
Mito volo 140 fix flat
hollow ceiling mounting, head length 136 cm, pen-
dant length max. 350 cm, 60 W ( table 3900 lm / room
3700 lm ), light intensity and color ( 2700 – 4000 K )
and uplight / downlight continuously adjustable via
» touchless control « at the head or via Occhio air,
alternatively dimmable via trailing-edge phase
cut dimmer, not available as pro version

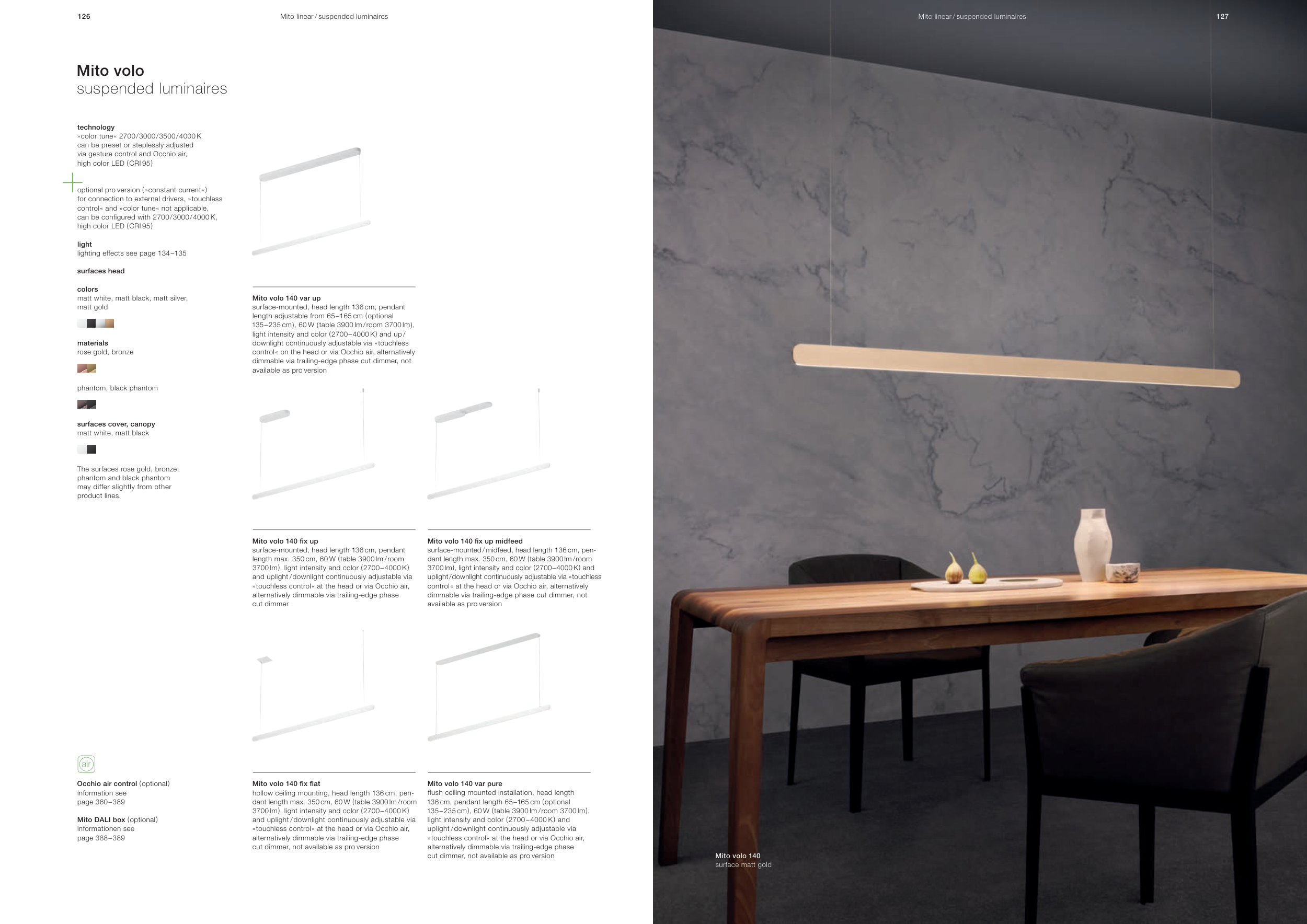

Mito volo
suspended luminaires
Mito volo 140 var pure
flush ceiling mounted installation, head length
136 cm, pendant length 65 –165 cm ( optional
135 – 235 cm ), 60 W ( table 3900 lm / room 3700 lm ),
light intensity and color ( 2700 – 4000 K ) and
uplight / downlight continuously adjustable via
» touchless control « at the head or via Occhio air,
alternatively dimmable via trailing-edge phase
cut dimmer, not available as pro version
Mito volo 140
surface matt gold
technology
» color tune « 2700 / 3000 / 3500 / 4000 K
can be preset or steplessly adjusted
via gesture control and Occhio air,
high color LED ( CRI 95 )
optional pro version ( » constant current « )
for connection to external drivers, » touchless
control « and » color tune « not applicable,
can be configured with 2700 / 3000 / 4000 K,
high color LED ( CRI 95 )
light
lighting effects see page 134 –135
surfaces head
colors
matt white, matt black, matt silver,
matt gold
materials
rose gold, bronze
phantom, black phantom
surfaces cover, canopy
matt white, matt black
The surfaces rose gold, bronze,
phantom and black phantom
may differ slightly from other
product lines.
Occhio air control ( optional )
information see
page 360 – 389
Mito DALI box ( optional )
informationen see
page 388 – 389
