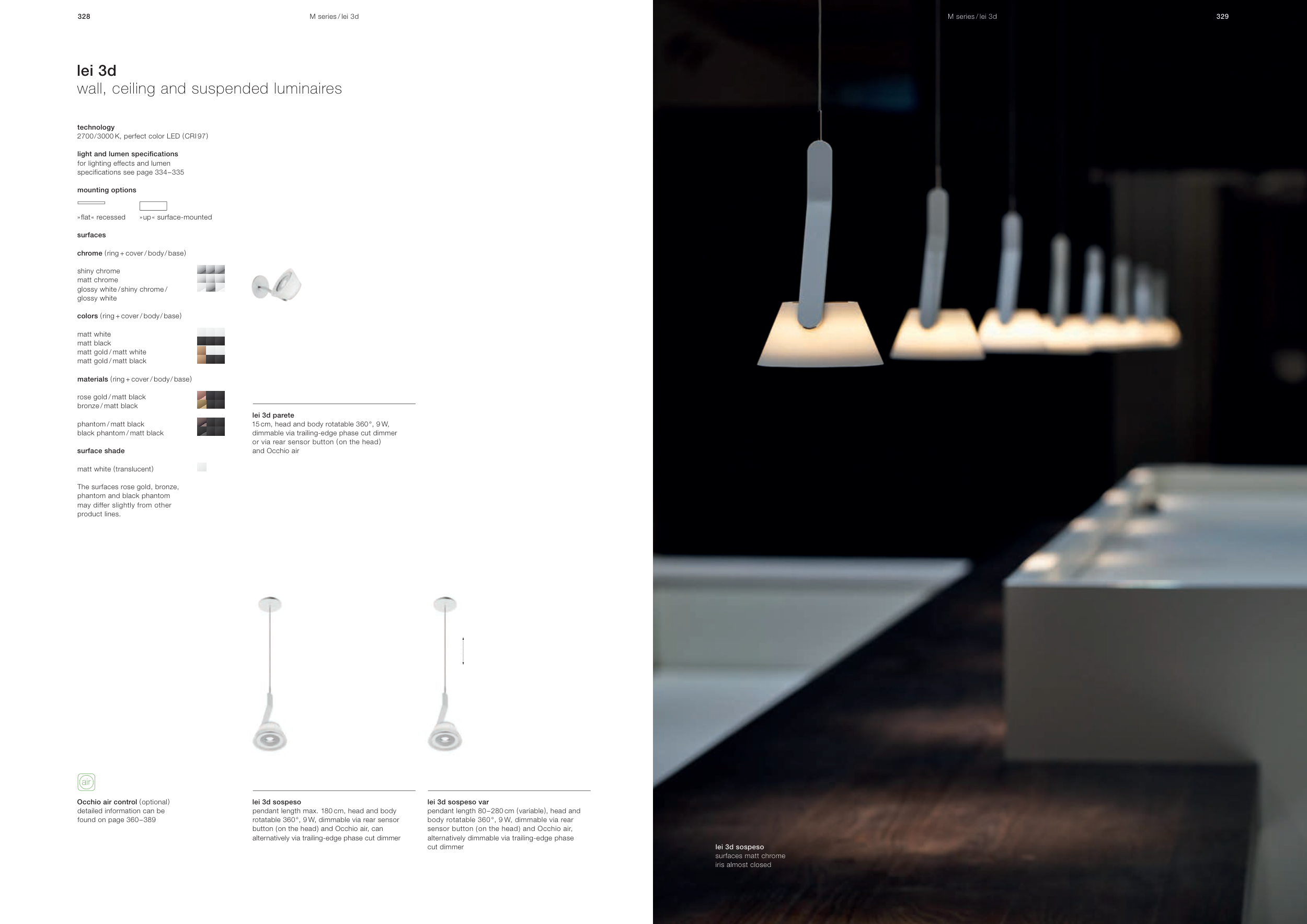

lei 3d sospeso
surfaces matt chrome
iris almost closed
lei 3d sospeso var
pendant length 80 – 280 cm ( variable ), head and
body rotatable 360 °, 9 W, dimmable via rear
sensor button ( on the head ) and Occhio air,
alternatively dimmable via trailing-edge phase
cut dimmer
lei 3d sospeso
pendant length max. 180 cm, head and body
rotatable 360 °, 9 W, dimmable via rear sensor
button ( on the head ) and Occhio air, can
alternatively via trailing-edge phase cut dimmer
lei 3d parete
15 cm, head and body rotatable 360 °, 9 W,
dimmable via trailing-edge phase cut dimmer
or via rear sensor button ( on the head )
and Occhio air
lei 3d
wall, ceiling and suspended luminaires
technology
2700 / 3000 K, perfect color LED ( CRI 97 )
light and lumen specifications
for lighting effects and lumen
specifications see page 334 – 335
mounting options
» flat « recessed
» up « surface-mounted
surfaces
chrome ( ring + cover / body / base )
shiny chrome
matt chrome
glossy white / shiny chrome /
glossy white
colors ( ring + cover / body / base )
matt white
matt black
matt gold / matt white
matt gold / matt black
materials ( ring + cover / body / base )
rose gold / matt black
bronze / matt black
phantom / matt black
black phantom / matt black
surface shade
matt white ( translucent )
The surfaces rose gold, bronze,
phantom and black phantom
may differ slightly from other
product lines.
Occhio air control ( optional )
detailed information can be
found on page 360 – 389
M series / lei 3d
329
M series / lei 3d
328
