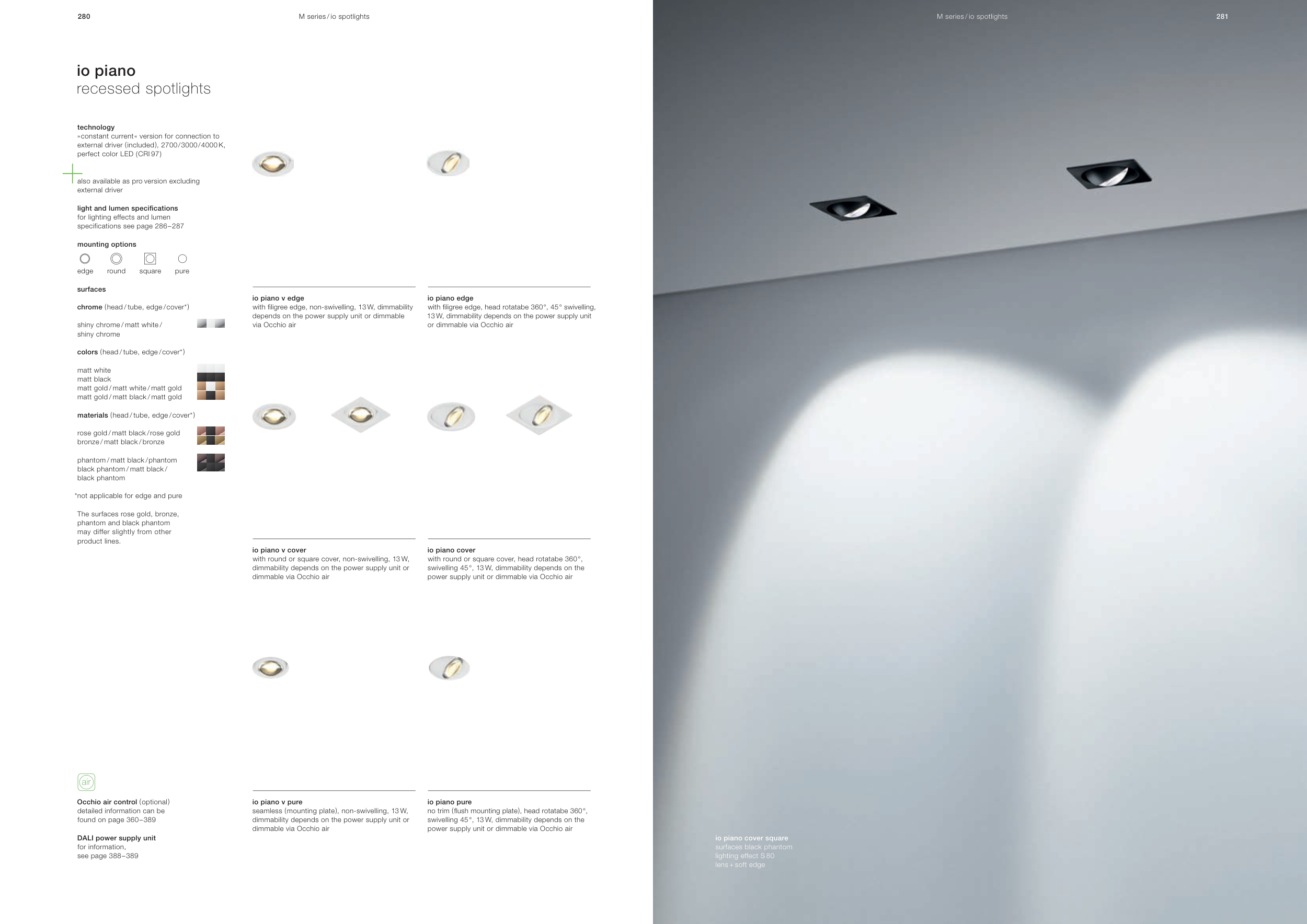

io piano
recessed spotlights
io piano cover square
surfaces black phantom
lighting effect S 80
lens + soft edge
io piano cover
with round or square cover, head rotatabe 360 °,
swivelling 45 °, 13 W, dimmability depends on the
power supply unit or dimmable via Occhio air
io piano v cover
with round or square cover, non-swivelling, 13 W,
dimmability depends on the power supply unit or
dimmable via Occhio air
io piano v pure
seamless ( mounting plate ), non-swivelling, 13 W,
dimmability depends on the power supply unit or
dimmable via Occhio air
io piano pure
no trim ( flush mounting plate ), head rotatabe 360 °,
swivelling 45 °, 13 W, dimmability depends on the
power supply unit or dimmable via Occhio air
io piano v edge
with filigree edge, non-swivelling, 13 W, dimmability
depends on the power supply unit or dimmable
via Occhio air
io piano edge
with filigree edge, head rotatabe 360 °, 45 ° swivelling,
13 W, dimmability depends on the power supply unit
or dimmable via Occhio air
technology
» constant current « version for connection to
external driver ( included ), 2700 / 3000 / 4000 K,
perfect color LED ( CRI 97 )
also available as pro version excluding
external driver
light and lumen specifications
for lighting effects and lumen
specifications see page 286 – 287
mounting options
edge
round
square
pure
surfaces
chrome ( head / tube, edge / cover* )
shiny chrome / matt white /
shiny chrome
colors ( head / tube, edge / cover* )
matt white
matt black
matt gold / matt white / matt gold
matt gold / matt black / matt gold
materials ( head / tube, edge / cover* )
rose gold / matt black / rose gold
bronze / matt black / bronze
phantom / matt black / phantom
black phantom / matt black /
black phantom
*not applicable for edge and pure
The surfaces rose gold, bronze,
phantom and black phantom
may differ slightly from other
product lines.
DALI power supply unit
for information,
see page 388 – 389
Occhio air control ( optional )
detailed information can be
found on page 360 – 389
M series / io spotlights
281
M series / io spotlights
280
