round
round
square
square
round
square

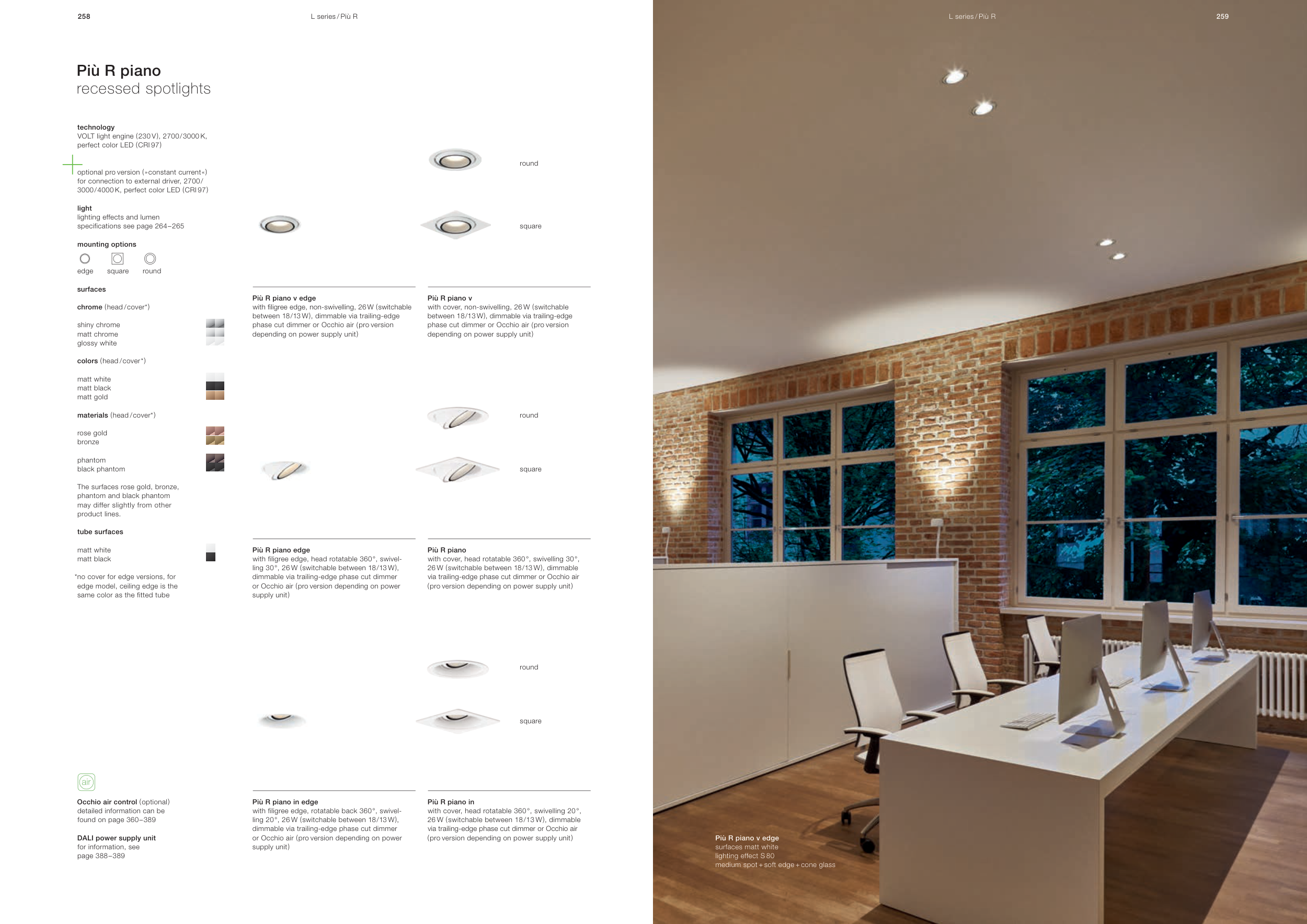

Più R piano
recessed spotlights
Più R piano
with cover, head rotatable 360 °, swivelling 30 °,
26 W ( switchable between 18 /13 W ), dimmable
via trailing-edge phase cut dimmer or Occhio air
( pro version depending on power supply unit )
Più R piano in
with cover, head rotatable 360 °, swivelling 20 °,
26 W ( switchable between 18 /13 W ), dimmable
via trailing-edge phase cut dimmer or Occhio air
( pro version depending on power supply unit )
Più R piano v
with cover, non-swivelling, 26 W ( switchable
between 18 /13 W ), dimmable via trailing-edge
phase cut dimmer or Occhio air ( pro version
depending on power supply unit )
Più R piano v edge
surfaces matt white
lighting effect S 80
medium spot + soft edge + cone glass
Più R piano edge
with filigree edge, head rotatable 360 °, swivel-
ling 30 °, 26 W ( switchable between 18 /13 W ),
dimmable via trailing-edge phase cut dimmer
or Occhio air ( pro version depending on power
supply unit )
Più R piano in edge
with filigree edge, rotatable back 360 °, swivel-
ling 20 °, 26 W ( switchable between 18 /13 W ),
dimmable via trailing-edge phase cut dimmer
or Occhio air ( pro version depending on power
supply unit )
Più R piano v edge
with filigree edge, non-swivelling, 26 W ( switchable
between 18 /13 W ), dimmable via trailing-edge
phase cut dimmer or Occhio air ( pro version
depending on power supply unit )
technology
VOLT light engine ( 230 V ), 2700 / 3000 K,
perfect color LED ( CRI 97 )
optional pro version ( » constant current « )
for connection to external driver, 2700 /
3000 / 4000 K, perfect color LED ( CRI 97 )
light
lighting effects and lumen
specifications see page 264 – 265
mounting options
edge
square
round
surfaces
chrome ( head / cover* )
shiny chrome
matt chrome
glossy white
colors ( head / cover * )
matt white
matt black
matt gold
materials ( head / cover* )
rose gold
bronze
phantom
black phantom
The surfaces rose gold, bronze,
phantom and black phantom
may differ slightly from other
product lines.
tube surfaces
matt white
matt black
*no cover for edge versions, for
edge model, ceiling edge is the
same color as the fitted tube
Occhio air control ( optional )
detailed information can be
found on page 360 – 389
DALI power supply unit
for information, see
page 388 – 389
L series / Più R
259
L series / Più R
258
